Overview

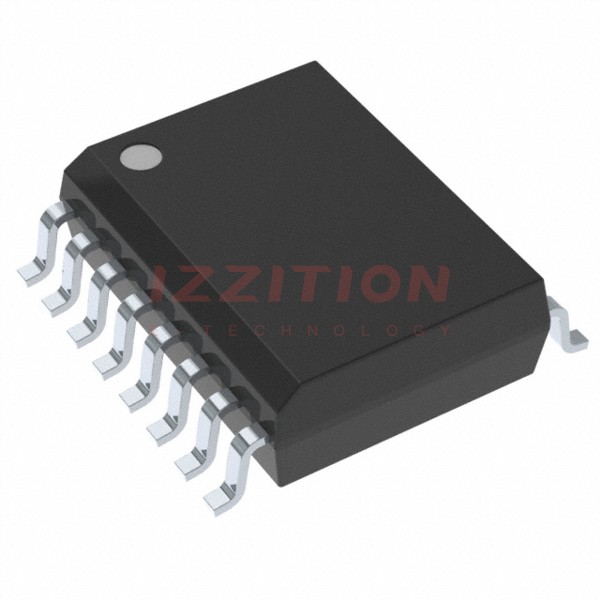

The ADUM1400WTRWZ55-RL is a quad-channel digital isolator produced by Analog Devices, Inc. This component is designed to provide high isolation and low power operation, making it suitable for a variety of applications, including those in the automotive sector. The ADUM1400WTRWZ55-RL is part of the ADuM1400 series, which is known for its robust isolation and reliability.
Key Specifications
| Part Number | ADUM1400WTRWZ55-RL |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC DGTL ISO 4CH LOGIC 16SOIC |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Supplier Device Package | 16-SOIC |
| Packaging | Tape & Reel (TR) |
Key Features
- Quad-channel digital isolation
- Low power operation
- Qualified for automotive applications
- High common-mode transient immunity (CMTI)
- Surface mount package for easy integration
- Lead-free and RoHS compliant
Applications
- Automotive systems: Suitable for use in various automotive applications due to its qualification and robust design.
- Industrial control systems: Ideal for isolating digital signals in industrial environments.
- Medical devices: Can be used in medical devices requiring high isolation and low power consumption.
- Communication systems: Useful in communication systems where signal isolation is critical.
Q & A
- What is the part number of this digital isolator?
The part number is ADUM1400WTRWZ55-RL. - Who is the manufacturer of this component?
The manufacturer is Analog Devices, Inc. - What is the package type of this component?
The package type is 16-SOIC (0.295", 7.50mm Width). - Is this component lead-free and RoHS compliant?
Yes, it is lead-free and RoHS compliant. - What is the moisture sensitivity level (MSL) of this component?
The MSL is 3 (168 Hours). - What are the key features of this digital isolator?
Key features include quad-channel digital isolation, low power operation, and high common-mode transient immunity (CMTI). - What are some common applications for this component?
Common applications include automotive systems, industrial control systems, medical devices, and communication systems. - How is the component packaged?
The component is packaged in Tape & Reel (TR). - Is this component suitable for surface mounting?
Yes, it is designed for surface mounting. - What is the significance of CMTI in this component?
CMTI (Common-Mode Transient Immunity) is important for ensuring the component can withstand high transient voltages without compromising signal integrity.
