Overview
The ADRF5024BCCZN from Analog Devices Inc. is a silicon single-pole double-throw (SPDT) switch designed for high-performance applications across a wide frequency range. This reflective switch operates from 100 MHz to 44 GHz, making it suitable for various high-frequency applications. The device is manufactured using a silicon process and features low insertion loss and high isolation, making it ideal for use in demanding RF environments.
Key Specifications
Parameter | Symbol | Min | Typ | Max | Unit |
---|---|---|---|---|---|
Frequency Range | 100 MHz | 44 GHz | |||
Insertion Loss (with impedance match) | 1.0 dB (to 18 GHz) | 1.7 dB (to 44 GHz) | dB | ||
Insertion Loss (without impedance match) | 0.9 dB (to 18 GHz) | 2.1 dB (to 44 GHz) | dB | ||
Isolation | 35 dB | dB | |||
Input Linearity (P1dB) | P1dB | 27.5 dBm | dBm | ||
Third-Order Intercept (IP3) | IP3 | 50 dBm | dBm | ||
RF Input Power Handling | 27 dBm | dBm | |||
Supply Voltage (Positive) | VDD | 3.15 V | 3.45 V | V | |
Supply Voltage (Negative) | VSS | -3.45 V | -3.15 V | V | |
Positive Supply Current | IDD | 14 µA | µA | ||
Negative Supply Current | ISS | 120 µA | µA | ||

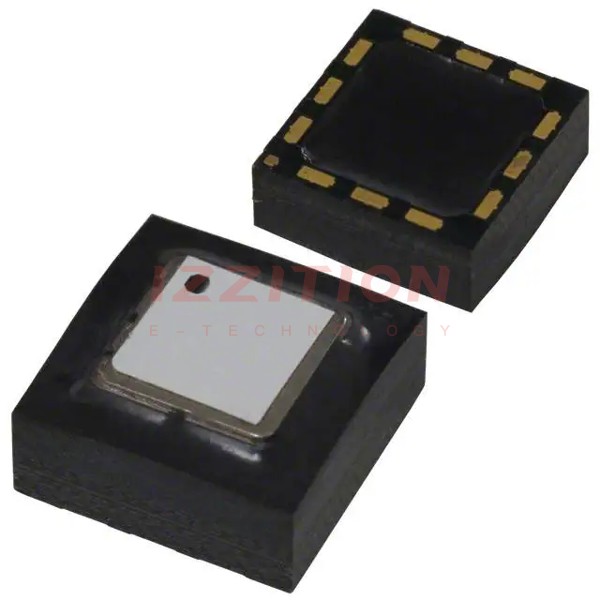

Package | LGA-12 (2.25 mm x 2.25 mm) |
Key Features
- Ultrawideband Frequency Range: Operates from 100 MHz to 44 GHz.
- Reflective Design: Optimized for low insertion loss and high isolation.
- Low Insertion Loss: Typical values of 1.0 dB to 18 GHz, 1.4 dB to 40 GHz, and 1.7 dB to 44 GHz with impedance match.
- High Input Linearity: P1dB of 27.5 dBm and IP3 of 50 dBm.
- High RF Input Power Handling: Capable of handling 27 dBm for both through path and hot switching.
- Low Current Consumption: Draws 14 µA on the positive supply and 120 µA on the negative supply.
- CMOS/LVTTL-Compatible Controls: Simplified control interface with a single digital control input pin.
- RF Ports Matching: Internally matched to 50 Ω, with optional external impedance matching for improved performance.
- Compact Package: 12-terminal LGA package measuring 2.25 mm x 2.25 mm.
Applications
- Industrial Scanners: Suitable for high-frequency scanning applications.
- Test and Instrumentation: Ideal for test equipment requiring high-frequency switching.
- Cellular Infrastructure (5G mmWave): Used in 5G mmWave base stations and other cellular infrastructure.
- Military Radios and Radars: Employed in military communications and radar systems.
- Electronic Counter Measures (ECMs): Utilized in ECM systems for military applications.
- Microwave Radios and VSATs: Used in microwave radio systems and very small aperture terminals (VSATs).
Q & A
- What is the frequency range of the ADRF5024BCCZN?
The ADRF5024BCCZN operates from 100 MHz to 44 GHz.
- What is the typical insertion loss of the ADRF5024BCCZN?
The typical insertion loss is 1.0 dB to 18 GHz, 1.4 dB to 40 GHz, and 1.7 dB to 44 GHz with impedance match.
- What is the input linearity of the ADRF5024BCCZN?
The input linearity is characterized by a P1dB of 27.5 dBm and an IP3 of 50 dBm.
- How much RF input power can the ADRF5024BCCZN handle?
The device can handle 27 dBm for both the through path and hot switching.
- What is the supply voltage range for the ADRF5024BCCZN?
The positive supply voltage range is 3.15 V to 3.45 V, and the negative supply voltage range is -3.45 V to -3.15 V.
- What is the current consumption of the ADRF5024BCCZN?
The device draws 14 µA on the positive supply and 120 µA on the negative supply.
- Is the ADRF5024BCCZN compatible with CMOS/LVTTL controls?
- What is the package type and size of the ADRF5024BCCZN?
The device comes in a 12-terminal LGA package measuring 2.25 mm x 2.25 mm.
- What are some common applications of the ADRF5024BCCZN?
- Is the ADRF5024BCCZN RoHS-compliant?
