Overview

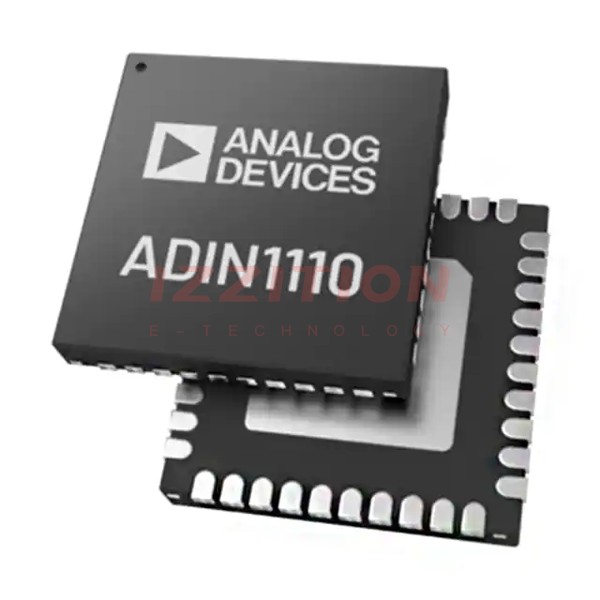

The ADIN1110BCPZ from Analog Devices Inc. is a robust, industrial, low-power 10BASE-T1L Ethernet MAC-PHY transceiver. It is designed to meet the IEEE 802.3cg-2019 standard for long-reach, 10 Mbps single pair Ethernet (SPE) applications. This device integrates a media access control (MAC) interface and supports direct connectivity with various host controllers via a 4-wire serial peripheral interface (SPI). The ADIN1110 is particularly suited for industrial Ethernet applications, offering low power consumption and high reliability.
Key Specifications
| Parameter | Description |
|---|---|
| Package | 40-lead, 6 mm × 6 mm lead frame chip scale package (LFCSP) |
| Temperature Range | Industrial: −40°C to +85°C, Extended: −40°C to +105°C |
| Power Supply Domains | AVDD_H, AVDD_L, DVDD_1P1 |
| Transmit Levels | 1.0 V p-p and 2.4 V p-p modes |
| Cable Reach | Up to 1700 m |
| MAC Interface | Integrated MAC with SPI, supports OPEN Alliance 10BASE-T1x MAC-PHY serial interface |
| Buffer Size | High and low priority queues with 28 kB buffer |
| Power Consumption | 42 mW (dual-supply, 1.0 V p-p) |
| Additional Features | Cable fault detection with TDR, link quality indicator with MSE, frame generator and checker, multiple loopback modes, IEEE test mode support |
Key Features
- Compliant with IEEE 802.3cg-2019 standard for 10BASE-T1L Ethernet
- Integrated MAC with SPI interface for low-power processors
- Supports OPEN Alliance 10BASE-T1x MAC-PHY serial interface
- 16 MAC address filters and high/low priority queues with 28 kB buffer
- Cut through or store forward operation and IEEE 1588 timestamp support
- Statistics counters and diagnostics including cable fault detection with TDR and link quality indicator with MSE
- Programmable transmit levels (1.0 V p-p and 2.4 V p-p) and external termination resistors
- Suitable for intrinsic safety applications with independent receive and transmit pins
- Integrated voltage supply monitoring and power-on reset (POR) circuitry
Applications
- Field instruments and condition monitoring
- Building automation and fire safety systems
- Factory automation and edge sensors/actuators
- Automotive electronics, including vehicle entertainment, navigation, and intelligent driving assistance systems
- Industrial Internet of Things (IoT) applications such as smart home, smart agriculture, and smart logistics
- Consumer electronics requiring high-speed, stable data transmission
Q & A
- What is the ADIN1110BCPZ compliant with?
The ADIN1110BCPZ is compliant with the IEEE 802.3cg-2019 standard for 10BASE-T1L Ethernet.
- What is the maximum cable reach of the ADIN1110BCPZ?
The ADIN1110BCPZ supports a cable reach of up to 1700 meters.
- What types of transmit levels does the ADIN1110BCPZ support?
The ADIN1110BCPZ supports 1.0 V p-p and 2.4 V p-p transmit levels.
- Does the ADIN1110BCPZ have integrated MAC and PHY?
Yes, the ADIN1110BCPZ has an integrated MAC and PHY.
- What is the power consumption of the ADIN1110BCPZ?
The power consumption is 42 mW in dual-supply mode with 1.0 V p-p transmission.
- What are the key diagnostic features of the ADIN1110BCPZ?
The key diagnostic features include cable fault detection with TDR, link quality indicator with MSE, frame generator and checker, and multiple loopback modes.
- Is the ADIN1110BCPZ suitable for intrinsic safety applications?
Yes, the ADIN1110BCPZ is suitable for intrinsic safety applications due to its independent receive and transmit pins and integrated voltage supply monitoring and power-on reset circuitry.
- What is the temperature range of the ADIN1110BCPZ?
The temperature range is from −40°C to +85°C for industrial applications and up to +105°C for extended applications.
- What package type does the ADIN1110BCPZ use?
The ADIN1110BCPZ is available in a 40-lead, 6 mm × 6 mm lead frame chip scale package (LFCSP).
- What are some common applications of the ADIN1110BCPZ?
Common applications include field instruments, building automation, factory automation, automotive electronics, and Industrial IoT.
