Overview
The ADHV4702-1BCPZ is a high voltage, unity-gain stable precision operational amplifier manufactured by Analog Devices Inc. This operational amplifier is designed to operate over a wide range of voltages, including symmetrical dual supplies of ±110 V, asymmetrical dual supplies up to 220 V, and a single supply up to 175 V. It features high input impedance, low input bias current, low input offset voltage, low drift, and low noise, making it suitable for precision-demanding applications.

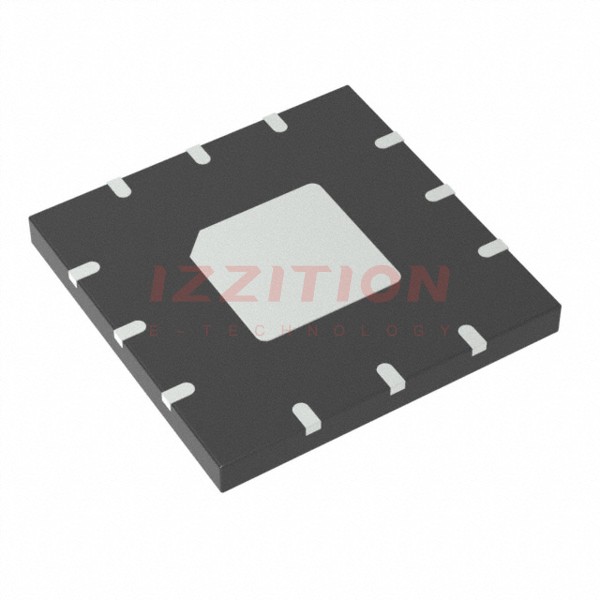

The ADHV4702-1BCPZ leverages next-generation proprietary semiconductor processes and innovative architecture to achieve exceptional dc precision and dynamic performance. It is available in a 12-lead, 7 mm × 7 mm lead frame chip scale package (LFCSP) with an exposed pad (EPAD) that complies with international electrotechnical commission (IEC) 61010-1 creepage and clearance standards.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Operating Voltage Range | 24 V | - | 220 V | V |
| Input Common-Mode Voltage Range | -107 V | - | 107 V | V |
| Common-Mode Rejection Ratio (CMRR) | - | 160 dB | - | dB |
| Open-Loop Gain (AOL) | - | 170 dB | - | dB |
| Slew Rate | - | 74 V/µs | - | V/µs |
| Input Bias Current | - | ±0.3 pA | - | pA |
| Input Offset Voltage Drift | - | 2 µV/°C | - | µV/°C |
| Output Current | - | 20 mA | - | mA |
| Operating Temperature Range | -40°C | - | 85°C | °C |
| Package Type | - | 12-lead LFCSP with EPAD | - | - |
Key Features
- High voltage operation: Supports symmetrical dual supplies of ±110 V, asymmetrical dual supplies up to 220 V, and a single supply up to 175 V.
- High input impedance and low input bias current.
- Low input offset voltage and low drift.
- Low noise and high common-mode rejection ratio (CMRR) of 160 dB.
- High slew rate of 74 V/µs and small signal bandwidth of 10 MHz.
- High voltage input common-mode swing and high voltage output swing.
- Available in a 12-lead LFCSP package with an exposed pad for improved heat dissipation.
- Compliant with IEC 61010-1 creepage and clearance standards.
Applications
- High-side current sensing.
- Automated test equipment.
- High voltage drivers.
- Piezo transducers.
- Digital-to-analog converter (DAC) output buffers.
- Light detecting and ranging (LiDAR), avalanche photodiode (APD), and single photon avalanche diode (SPAD) biasing.
Q & A
- What is the operating voltage range of the ADHV4702-1BCPZ?
The ADHV4702-1BCPZ operates from 24 V to 220 V, including symmetrical dual supplies of ±110 V and a single supply up to 175 V.
- What is the typical common-mode rejection ratio (CMRR) of the ADHV4702-1BCPZ?
The typical CMRR is 160 dB.
- What is the slew rate of the ADHV4702-1BCPZ?
The slew rate is typically 74 V/µs.
- What is the input bias current of the ADHV4702-1BCPZ?
The input bias current is typically ±0.3 pA.
- What is the operating temperature range of the ADHV4702-1BCPZ?
The operating temperature range is from -40°C to +85°C.
- In what package is the ADHV4702-1BCPZ available?
The ADHV4702-1BCPZ is available in a 12-lead LFCSP package with an exposed pad (EPAD).
- What are some typical applications of the ADHV4702-1BCPZ?
Typical applications include high-side current sensing, automated test equipment, high voltage drivers, piezo transducers, DAC output buffers, LiDAR, APD, and SPAD biasing.
- What is the open-loop gain of the ADHV4702-1BCPZ?
The typical open-loop gain is 170 dB.
- What is the input offset voltage drift of the ADHV4702-1BCPZ?
The input offset voltage drift is typically 2 µV/°C.
- What is the output current capability of the ADHV4702-1BCPZ?
The output current is typically 20 mA.
- Is the ADHV4702-1BCPZ compliant with any specific safety standards?
Yes, it is compliant with IEC 61010-1 creepage and clearance standards.
