Overview

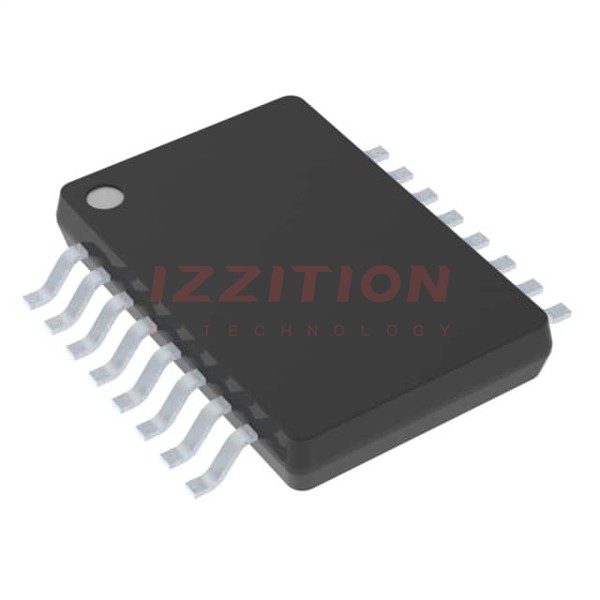

The ADG3123BRUZ, produced by Analog Devices Inc., is an 8-channel, noninverting CMOS to high voltage level translator. This device is fabricated on an enhanced LC2MOS process, enabling it to operate at high supply voltages while maintaining ultralow power consumption. It is designed to translate CMOS logic levels into high voltage bipolar levels, making it suitable for a variety of applications requiring level translation.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 8 |
| Input Logic Levels | 2.3 V to 5.5 V (CMOS compatible) |
| Output Voltage Levels | Up to +35 V and down to -24.2 V |
| Package Type | 20-Lead Thin Shrink Small Outline Package (TSSOP) |
| Operating Temperature Range | -40°C to +85°C |
| Power Consumption | Ultralow |
| Output Impedance | Low |
| Propagation Delay | Low |
| Rise and Fall Times | Fast |
Key Features
- Compatible with a wide range of CMOS logic levels (2.3 V to 5.5 V)
- High output voltage levels (up to +35 V and down to -24.2 V)
- Fast rise and fall times coupled with low propagation delay
- Ultralow power consumption
- Compact, 20-lead TSSOP, RoHS-compliant package
- Low output impedance allowing for both resistive and capacitive loads
Applications
The ADG3123BRUZ is particularly suited for applications such as TFT-LCD panel drivers, where fast rise and fall times and low propagation delay are critical. It can also be used in various industrial and automotive systems that require level translation between different voltage domains.
Q & A
- What is the primary function of the ADG3123BRUZ?
The ADG3123BRUZ is an 8-channel, noninverting CMOS to high voltage level translator. - What are the input logic levels compatible with the ADG3123BRUZ?
The device is compatible with CMOS logic levels between 2.3 V and 5.5 V. - What is the range of output voltage levels for the ADG3123BRUZ?
The output voltage levels can range from -24.2 V to +35 V. - What is the operating temperature range of the ADG3123BRUZ?
The device operates over a temperature range of -40°C to +85°C. - What type of package does the ADG3123BRUZ come in?
The device is available in a 20-lead Thin Shrink Small Outline Package (TSSOP). - Is the ADG3123BRUZ RoHS compliant?
Yes, the ADG3123BRUZ is RoHS compliant. - What are some key applications for the ADG3123BRUZ?
The device is suitable for TFT-LCD panel drivers and various industrial and automotive systems requiring level translation. - How does the ADG3123BRUZ handle capacitive loads?
The low output impedance of the ADG3123BRUZ allows it to drive both resistive and capacitive loads efficiently. - What are the power consumption characteristics of the ADG3123BRUZ?
The device has ultralow power consumption. - What are the key performance metrics of the ADG3123BRUZ in terms of rise and fall times and propagation delay?
The device features fast rise and fall times and low propagation delay.
