Overview
The ADF4371BCCZ is an advanced integer-N frequency synthesizer produced by Analog Devices Inc. This device is capable of operating at frequencies up to 32 GHz, making it a versatile solution for high-frequency wireless and radar applications. It features a highly integrated design with a wide range of programmable parameters, which minimizes the need for external components and simplifies the design process.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Frequency Range | 62.5 MHz to 32 GHz | Hz |
| Supply Voltage | 3.15 V to 3.45 V | V |
| Operating Temperature Range | -40°C to +105°C | °C |
| Input Types | CMOS, ECL | |
| Output Type | Differential | |
| VCO Frequency Range | 4000 MHz to 8000 MHz | Hz |
| Divider Range | 1, 2, 4, 8, 16, 32, 64 | |

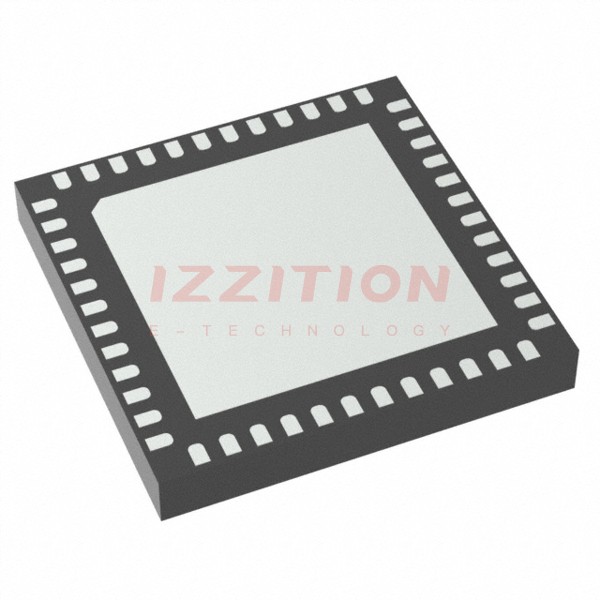

| Package Type | 48-Terminal Land Grid Array (LGA) |
Key Features
- Integer-N architecture with programmable divider/multiplier.
- Differential input and output support for improved noise immunity.
- CMOS and ECL compatible inputs for broad compatibility.
- Highly integrated design requiring minimal external components.
- Configurable parameters for optimized performance.
- Integrated PLL and VCO for simplified design and reduced space requirements.
- Single power supply range of 3.15 V to 3.45 V with additional 5 V for VCO power supply.
- Robust temperature performance across a wide range of -40°C to +105°C.
Applications
- Wireless communications, including multicarrier global system for mobile communication (MC-GSM) and 5G.
- Radar and sensing applications.
- Test and measurement equipment.
- Microwave communications and satellite communications.
- Military and aerospace systems.
- Signal generation equipment.
Q & A
- What is the maximum operating frequency of the ADF4371BCCZ?
The ADF4371BCCZ can operate at frequencies up to 32 GHz. - What are the supported input types for the ADF4371BCCZ?
The device supports CMOS and ECL input types. - What is the operating temperature range of the ADF4371BCCZ?
The operating temperature range is -40°C to +105°C. - Does the ADF4371BCCZ have an integrated VCO?
Yes, the ADF4371BCCZ features an integrated VCO with a fundamental output frequency ranging from 4000 MHz to 8000 MHz. - What are the key applications of the ADF4371BCCZ?
The key applications include wireless communications, radar and sensing, test and measurement equipment, and military and aerospace systems. - What is the package type of the ADF4371BCCZ?
The package type is a 48-Terminal Land Grid Array (LGA). - Can the ADF4371BCCZ be used in harsh environments?
Yes, it is designed to operate reliably across a wide temperature range and in demanding environments. - How does the ADF4371BCCZ simplify the design process?
The device simplifies the design process through its highly integrated design, requiring minimal external components and featuring an integrated PLL and VCO. - What are the power supply requirements for the ADF4371BCCZ?
The device operates with a single power supply range of 3.15 V to 3.45 V, with an additional 5 V for the VCO power supply. - Is the ADF4371BCCZ an active product?
Yes, the ADF4371BCCZ is an active product and continues to be supported and maintained by Analog Devices.
