Overview
The ADAS3022BCPZ-RL7, manufactured by Analog Devices Inc., is a comprehensive 16-bit, 1 MSPS (mega samples per second) analog-to-digital data acquisition system. This device is built on Analog Devices' proprietary iCMOS high voltage industrial process technology. It integrates multiple components, including an 8-channel low leakage multiplexer, a high impedance programmable gain instrumentation amplifier (PGIA), a precision 4.096 V reference and buffer, and a 16-bit charge redistribution analog-to-digital converter (ADC) with successive approximation register (SAR) architecture. This integration simplifies design challenges by eliminating the need for external signal buffering, level shifting, amplification/attenuation, and common-mode rejection, thus enabling a smaller form factor, faster time to market, and lower cost.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 16-bit |
| Sampling Rate | 1 MSPS |
| Number of Channels | 8 |
| Input Voltage Range | ±24.576 V (differential), various single-ended ranges |
| Input Impedance | >500 MΩ |
| Common-Mode Rejection | >100 dB |
| Reference Voltage | 4.096 V |
| Interface | Serial 4-wire, 1.8 V to 5 V SPI-/SPORT-compatible |

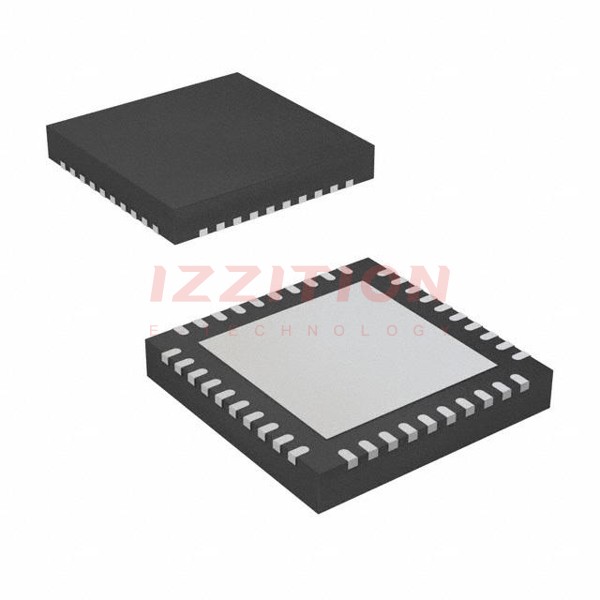

| Package Type | 40-Lead LFCSP (6 mm x 6 mm) |
| Operating Temperature Range | −40°C to +85°C |
Key Features
- Ease of use: Complete data acquisition system with minimal external components required.
- High impedance, 8-channel input: >500 MΩ input impedance.
- Programmable input ranges: User-configurable input voltage ranges.
- Channel sequencer: Individual channel gains and sequencing capabilities.
- No latency or pipeline delay: SAR architecture ensures real-time data conversion.
- Auxiliary input: Direct interface to PulSAR ADC inputs.
- Precision reference and buffer: On-chip 4.096 V reference and buffer.
- Compact package: 40-Lead LFCSP (6 mm x 6 mm) or LQFP (7 mm x 7 mm) packages.
Applications
- Multichannel data acquisition and system monitoring.
- Process control.
- Power line monitoring.
- Automated test equipment.
- Instrumentation.
Q & A
- What is the resolution of the ADAS3022BCPZ-RL7?
The ADAS3022BCPZ-RL7 has a 16-bit resolution.
- What is the maximum sampling rate of the ADAS3022BCPZ-RL7?
The maximum sampling rate is 1 MSPS.
- How many input channels does the ADAS3022BCPZ-RL7 have?
The device has 8 input channels.
- What is the input voltage range for the ADAS3022BCPZ-RL7?
The input voltage range is up to ±24.576 V differential and various single-ended ranges.
- What is the input impedance of the ADAS3022BCPZ-RL7?
The input impedance is greater than 500 MΩ.
- Does the ADAS3022BCPZ-RL7 have any latency or pipeline delay?
No, it does not have any latency or pipeline delay due to its SAR architecture.
- What type of interface does the ADAS3022BCPZ-RL7 use?
The device uses a serial 4-wire, 1.8 V to 5 V SPI-/SPORT-compatible interface.
- What is the operating temperature range of the ADAS3022BCPZ-RL7?
The operating temperature range is −40°C to +85°C.
- What are some common applications of the ADAS3022BCPZ-RL7?
Common applications include multichannel data acquisition, process control, power line monitoring, automated test equipment, and instrumentation.
- What package types are available for the ADAS3022BCPZ-RL7?
The device is available in 40-Lead LFCSP (6 mm x 6 mm) and LQFP (7 mm x 7 mm) packages.
