Overview
The ADAS3022BCPZ is a 16-bit, 1 MSPS (mega samples per second) successive approximation register (SAR) analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This device is part of a complete data acquisition system, integrating multiple components to simplify design challenges in various applications. It is built on Analog Devices' proprietary iCMOS high voltage industrial process technology, ensuring high performance and reliability.
The ADAS3022BCPZ features an 8-channel, low leakage multiplexer, a high impedance programmable gain instrumentation amplifier (PGIA) stage, a precision 4.096 V reference and buffer, and a 16-bit SAR ADC. This combination allows for the resolution of eight single-ended inputs or four fully differential inputs up to ±24.576 V when using ±15 V supplies.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 16-bit |
| Sampling Rate | 1 MSPS |
| Number of Channels | 8 |
| Input Type | Single-ended and fully differential |
| Input Voltage Range | ±24.576 V maximum |
| Common-Mode Rejection | >100 dB |
| Reference Voltage | 4.096 V |
| Interface | Serial 4-wire, 1.8 V to 5 V SPI-/SPORT-compatible |

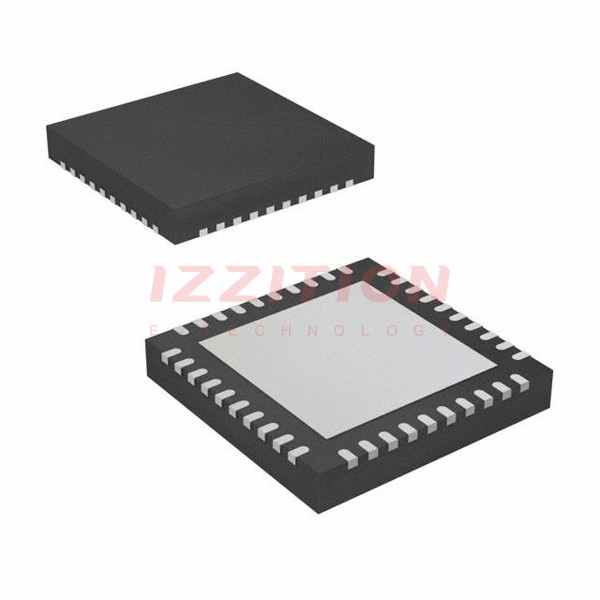

| Package | 40-Lead LFCSP (6 mm x 6 mm w/ EP) |
| Operating Temperature Range | −40°C to +85°C |
Key Features
- Ease of use with a complete data acquisition system in a single chip.
- High impedance, 8-channel input with >500 MΩ impedance.
- User-programmable input ranges and individual channel gains.
- High input common-mode rejection of >100 dB.
- No latency or pipeline delay due to SAR architecture.
- Auxiliary input for direct interface to PulSAR ADC inputs.
- Compact 40-Lead LFCSP package (6 mm x 6 mm w/ EP).
- Industrial temperature range of −40°C to +85°C.
Applications
- Multichannel data acquisition and system monitoring.
- Process control.
- Power line monitoring.
- Automated test equipment.
- Instrumentation.
Q & A
- What is the resolution and sampling rate of the ADAS3022BCPZ?
The ADAS3022BCPZ has a 16-bit resolution and a sampling rate of 1 MSPS.
- How many input channels does the ADAS3022BCPZ support?
The device supports 8 input channels, which can be configured as single-ended or fully differential inputs.
- What is the maximum input voltage range for the ADAS3022BCPZ?
The maximum input voltage range is ±24.576 V when using ±15 V supplies.
- What type of interface does the ADAS3022BCPZ use?
The device uses a serial 4-wire, 1.8 V to 5 V SPI-/SPORT-compatible interface.
- What is the operating temperature range of the ADAS3022BCPZ?
The operating temperature range is −40°C to +85°C.
- What package options are available for the ADAS3022BCPZ?
The device is available in a 40-Lead LFCSP package (6 mm x 6 mm w/ EP).
- Does the ADAS3022BCPZ have any built-in reference voltage?
Yes, it includes a precision 4.096 V reference and buffer.
- What are some common applications of the ADAS3022BCPZ?
Common applications include multichannel data acquisition, process control, power line monitoring, automated test equipment, and instrumentation.
- Does the ADAS3022BCPZ require external signal conditioning?
No, the device simplifies design by eliminating the need for external signal buffering, level shifting, amplification/attenuation, and common-mode rejection.
- Is there an evaluation kit available for the ADAS3022BCPZ?
Yes, the EVAL-ADAD3022EDZ is a fully featured evaluation kit available for the ADAS3022BCPZ.
