Overview
The ADAQ7988BCCZ is a 16-bit analog-to-digital converter (ADC) μModule® data acquisition system designed by Analog Devices Inc. This integrated system combines several critical signal processing and conditioning blocks into a single system-in-package (SiP) design, making it highly versatile for various applications. The device includes a high accuracy, low power 16-bit successive approximation register (SAR) ADC, a low power, high bandwidth ADC driver, a low power stable reference buffer, and an efficient power management block. This integration simplifies the design process for data acquisition systems and reduces the PCB area by 50% compared to traditional designs.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 16-bit |
| Sampling Rate | Up to 1 MSPS |

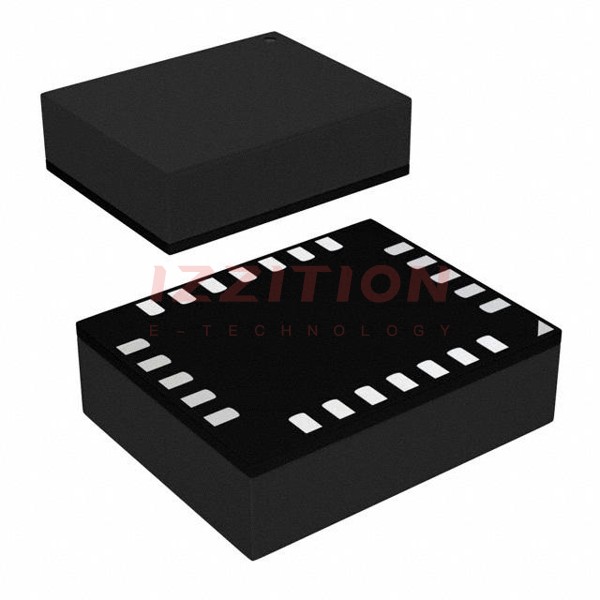

| Package Type | 24-Lead LGA (5mm x 4mm x 1.65mm) |
| Temperature Range | -55°C to +125°C |
| Logic Interface Voltage | 1.8 V, 2.5 V, 3 V, 5 V |
| Power Dissipation (at 1 kSPS) | 16.5 mW to 27.54 mW |
| Current Draw (VIO, V+/V-, VDD) | VIO: 0.15 mA to 0.17 mA, V+/V-: 1.35 mA to 1.85 mA, VDD: 0.73 mA to 0.8 mA |
| Serial Interface | SPI-, QSPI-, MICROWIRE™-, DSP-compatible |
Key Features
- Easy to use μModule data acquisition system
- Includes critical passive components for optimal performance
- Configurable ADC driver feedback loop for gain and common-mode adjustments
- Supports daisy-chaining of multiple ADAQ7988 devices
- Versatile supply configuration with multiple logic interface voltages
- High performance with low power consumption
- Compact 24-Lead LGA package reducing PCB area by 50%
Applications
The ADAQ7988BCCZ is suitable for a variety of applications requiring high accuracy and low power data acquisition. These include industrial automation, medical devices, test and measurement equipment, and any system that requires precise analog-to-digital conversion with integrated signal conditioning and power management. The device's compact size and low power consumption make it particularly useful in space-constrained and power-sensitive designs.
Q & A
- What is the resolution of the ADAQ7988BCCZ?
The ADAQ7988BCCZ has a 16-bit resolution.
- What is the maximum sampling rate of the ADAQ7988BCCZ?
The maximum sampling rate is up to 1 MSPS.
- What is the package type and size of the ADAQ7988BCCZ?
The device is housed in a 24-Lead LGA package measuring 5mm x 4mm x 1.65mm.
- What is the operating temperature range of the ADAQ7988BCCZ?
The operating temperature range is -55°C to +125°C.
- What are the supported logic interface voltages for the ADAQ7988BCCZ?
The device supports logic interface voltages of 1.8 V, 2.5 V, 3 V, and 5 V.
- How much power does the ADAQ7988BCCZ consume at 1 kSPS?
The power dissipation at 1 kSPS ranges from 16.5 mW to 27.54 mW.
- What is the current draw of the ADAQ7988BCCZ?
The current draw is VIO: 0.15 mA to 0.17 mA, V+/V-: 1.35 mA to 1.85 mA, and VDD: 0.73 mA to 0.8 mA.
- What serial interfaces are supported by the ADAQ7988BCCZ?
The device supports SPI-, QSPI-, MICROWIRE™-, and DSP-compatible serial interfaces.
- Can multiple ADAQ7988BCCZ devices be daisy-chained?
Yes, multiple devices can be daisy-chained.
- What are the key components integrated into the ADAQ7988BCCZ?
The device integrates a SAR ADC, an ADC driver, a reference buffer, and a power management block.
