Overview
The ADAQ7980BCCZ-RL7 is a 16-bit, 1 MSPS (Mega Samples Per Second) integrated data acquisition subsystem designed by Analog Devices Inc. This μModule® integrates critical active and passive components into a compact system-in-package (SiP) design, significantly simplifying the development process for data acquisition systems. It features a high accuracy, low power SAR (Successive Approximation Register) ADC, a low power, high bandwidth ADC driver, a stable reference buffer, and an efficient power management block. This integration reduces the PCB area by 50% and eliminates many of the design challenges associated with traditional signal chains.
Key Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | ADAQ7980 | Mounting Style | SMD/SMT |
| Product | Data Acquisition ADCs/DACs | Resolution | 16 bit |
| Number of Channels | 1 Channel | Operating Supply Voltage | 3.5 V to 10 V |
| Minimum Operating Temperature | -55°C | Maximum Operating Temperature | +125°C |
| Architecture | SAR | Brand | Analog Devices |
| Development Kit | EVAL-ADAQ7980SDZ | Gain Error | 0.002 % FS |
| INL - Integral Nonlinearity | 0.5 LSB | Interface Type | Serial, SPI |
| Number of ADC Channels | 1 Channel | Number of Converters | 1 Converter |
| Reference Voltage | 5.1 V | Sampling Rate | 1 MS/s |
| Shutdown | Shutdown | SNR - Signal to Noise Ratio | 88.7 dB |
Key Features
- Durable and Reliable Design: Ensures long-term performance and stability in various environments.
- Simplified Setup Process: Streamlines the development process with an integrated μModule design.
- Robust Noise Rejection: High accuracy and low noise characteristics enhance signal quality.

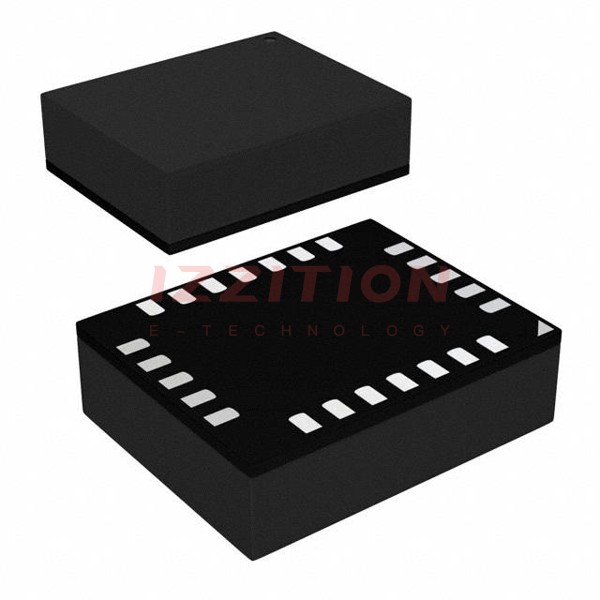

- Compact Package: 24-Lead LGA package (5mm x 4mm x 1.65mm) saves PCB area by 50%.
- Flexible Supply Configuration: Supports 1.8 V/2.5 V/3 V/5 V logic interface.
- Configurable ADC Driver Feedback Loop: Allows for gain and common-mode adjustments.
- High Performance: Includes a high accuracy SAR ADC, a high bandwidth ADC driver, a stable reference buffer, and efficient power management.
Applications
- Automated Test Equipment (ATE)
- Battery Powered Instrumentation
- Communications
- Data Acquisition
- Process Control
- Medical Instruments
Q & A
- Q: What is the warranty period for the ADAQ7980BCCZ-RL7?
A: We offer a 1-year warranty on the ADAQ7980BCCZ-RL7. This warranty covers any defects in materials and workmanship under normal use. - Q: How does Ovaga ensure the authenticity of ADAQ7980BCCZ-RL7 from Analog Devices?
A: Ovaga rigorously tests and verifies the credentials of original Analog Devices manufacturers and authorized agents. All suppliers must pass a qualification review before listing their products on our platform. - Q: How can I find detailed information about the ADAQ7980BCCZ-RL7 chips?
A: You can utilize Ovaga's search engine, filter by the relevant category, or visit the Analog Devices information page to find comprehensive details about the ADAQ7980BCCZ-RL7. - Q: Are the price and stock information for ADAQ7980BCCZ-RL7 on Ovaga's platform accurate?
A: Inventory levels can fluctuate and may not be updated in real time. To confirm stock availability and final pricing, you must confirm your order with an Ovaga salesperson or customer service representative before proceeding with payment. - Q: What is the package type of the ADAQ7980BCCZ-RL7?
A: The ADAQ7980BCCZ-RL7 is packaged in a 24-Lead LGA (5mm x 4mm x 1.65mm). - Q: What is the resolution and sampling rate of the ADAQ7980BCCZ-RL7?
A: The ADAQ7980BCCZ-RL7 has a resolution of 16 bits and a sampling rate of 1 MS/s. - Q: What are the operating supply voltage and temperature ranges for the ADAQ7980BCCZ-RL7?
A: The operating supply voltage is 3.5 V to 10 V, and the operating temperature range is -55°C to +125°C. - Q: What interface types are supported by the ADAQ7980BCCZ-RL7?
A: The ADAQ7980BCCZ-RL7 supports SPI, QSPI, MICROWIRE™, and DSP-compatible serial interfaces. - Q: Can multiple ADAQ7980BCCZ-RL7 devices be daisy-chained?
A: Yes, multiple ADAQ7980BCCZ-RL7 devices can be daisy-chained. - Q: What are some of the key applications for the ADAQ7980BCCZ-RL7?
A: Key applications include automated test equipment, battery-powered instrumentation, communications, data acquisition, process control, and medical instruments.
