Overview

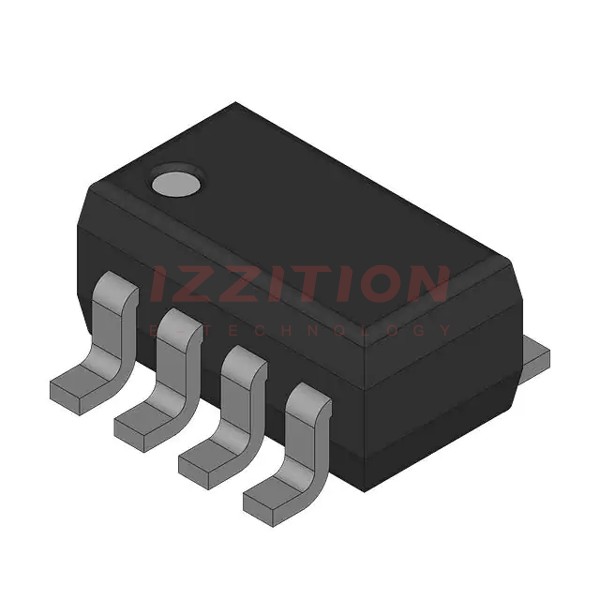

The ADA4806-1ARJZ-R2 is a high-performance, low-power operational amplifier (op-amp) produced by Analog Devices Inc. This device is designed to offer excellent AC and DC performance, making it suitable for a wide range of applications. The ADA4806-1ARJZ-R2 is known for its low noise, high slew rate, and low power consumption, which are critical parameters for many modern electronic systems.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Supply Voltage | ±2.5 to ±6 | V |
| Input Offset Voltage | 50 | μV |
| Input Bias Current | 10 | pA |
| Input Noise Voltage Density | 2.5 | nV/√Hz |
| Gain Bandwidth Product | 50 | MHz |
| Slew Rate | 30 | V/μs |
| Quiescent Current per Channel | 1.2 | mA |
| Operating Temperature Range | -40 to 125 | °C |
Key Features
- Low power consumption: Ideal for battery-powered devices and power-sensitive applications.
- High slew rate: Ensures fast response times and excellent signal integrity.
- Low input noise: Minimizes noise in the signal chain, enhancing overall system performance.
- High gain bandwidth product: Supports a wide range of frequencies, making it versatile for various applications.
- Low input offset voltage: Reduces the need for external trimming and improves overall accuracy.
- Wide operating temperature range: Suitable for use in harsh environments.
Applications
- Audio and video signal processing
- Medical devices and diagnostic equipment
- Industrial control systems
- Aerospace and defense systems
- Automotive electronics
- Test and measurement equipment
Q & A
- What is the supply voltage range for the ADA4806-1ARJZ-R2?
The supply voltage range is ±2.5 to ±6 V. - What is the input offset voltage of the ADA4806-1ARJZ-R2?
The input offset voltage is 50 μV. - What is the slew rate of the ADA4806-1ARJZ-R2?
The slew rate is 30 V/μs. - What is the quiescent current per channel for the ADA4806-1ARJZ-R2?
The quiescent current per channel is 1.2 mA. - What is the operating temperature range for the ADA4806-1ARJZ-R2?
The operating temperature range is -40 to 125 °C. - What are some common applications of the ADA4806-1ARJZ-R2?
Common applications include audio and video signal processing, medical devices, industrial control systems, aerospace and defense systems, automotive electronics, and test and measurement equipment. - How does the ADA4806-1ARJZ-R2 handle noise in the signal chain?
The ADA4806-1ARJZ-R2 has a low input noise voltage density of 2.5 nV/√Hz, which minimizes noise in the signal chain. - What is the gain bandwidth product of the ADA4806-1ARJZ-R2?
The gain bandwidth product is 50 MHz. - Is the ADA4806-1ARJZ-R2 suitable for battery-powered devices?
Yes, it is suitable due to its low power consumption. - Where can I find detailed specifications and datasheets for the ADA4806-1ARJZ-R2?
Detailed specifications and datasheets can be found on the official Analog Devices website or through distributors like Digi-Key, Mouser, Arrow Electronics, and Avnet.
