Overview
The ADA4610-1BRZ-R7, produced by Analog Devices Inc., is a high-precision operational amplifier designed for demanding applications requiring low noise, high precision, and robust performance. This J-FET amplifier features rail-to-rail input and output, making it suitable for a wide range of instrumentation, measurement, and signal conditioning tasks. With its ultra-low input bias current and excellent DC precision, this amplifier is ideal for applications where high accuracy and stability are crucial.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer Part Number | ADA4610-1BRZ-R7 |
| Manufacturer | Analog Devices, Inc. |

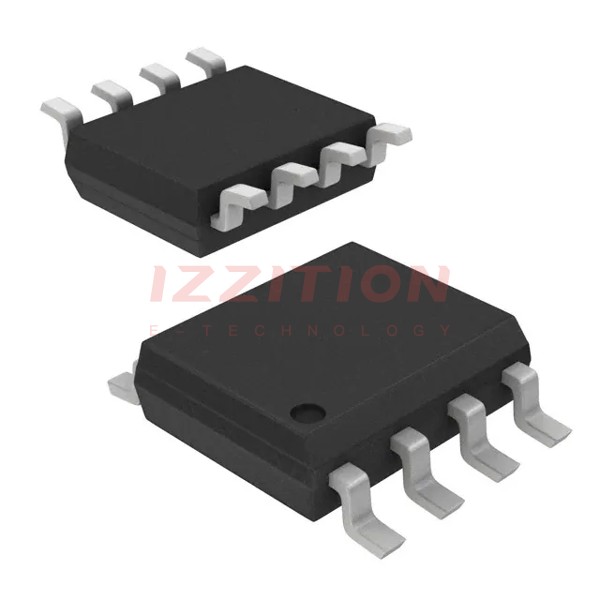

| Package | 8-SOIC (0.154", 3.90mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C to 125°C |
| Number of Circuits | 1 |
| Gain Bandwidth Product | 16.3 MHz |
| Voltage Supply Span (Min/Max) | 9 V to 30 V |
| Current Supply | 1.6 mA |
| Slew Rate | 61 V/s |
| Voltage Input Offset | 400 μV |
| Amplifier Type | J-FET |
| Current Output / Channel | 79 mA |
| Current Input Bias | 5 pA |
| -3dB Bandwidth | 9.5 MHz |
Key Features
- Rail-to-rail input and output for full signal utilization.
- Ultra-low input bias current of 5 pA for high precision.
- Gain bandwidth product of 16.3 MHz and slew rate of 61 V/s for fast and accurate signal processing.
- Wide supply voltage range from 9 V to 30 V for design flexibility.
- Low power consumption of 1.6 mA for energy-efficient designs.
- Excellent DC precision with 400 μV input offset voltage.
- Compact surface mount package for space-constrained designs.
- RoHS3 compliant for use in modern electronics.
Applications
- Precision amplifier circuits.
- Sensor signal conditioning.
- Instrumentation and measurement equipment.
- Data acquisition systems.
Q & A
- What is the ADA4610-1BRZ-R7 used for? The ADA4610-1BRZ-R7 is used in various instrumentation, measurement, and signal conditioning applications due to its high precision and robust performance.
- What is the input bias current of the ADA4610-1BRZ-R7? The input bias current is 5 pA, which is ultra-low and suitable for high-precision applications.
- What is the gain bandwidth product of the ADA4610-1BRZ-R7? The gain bandwidth product is 16.3 MHz.
- What is the slew rate of the ADA4610-1BRZ-R7? The slew rate is 61 V/s.
- What is the operating temperature range of the ADA4610-1BRZ-R7? The operating temperature range is -40°C to 125°C.
- Is the ADA4610-1BRZ-R7 RoHS compliant? Yes, the ADA4610-1BRZ-R7 is RoHS3 compliant.
- What is the package type of the ADA4610-1BRZ-R7? The package type is 8-SOIC (0.154", 3.90mm Width).
- What is the supply voltage range of the ADA4610-1BRZ-R7? The supply voltage range is from 9 V to 30 V.
- What is the current supply of the ADA4610-1BRZ-R7? The current supply is 1.6 mA.
- What are some common applications of the ADA4610-1BRZ-R7? Common applications include precision amplifier circuits, sensor signal conditioning, instrumentation and measurement equipment, and data acquisition systems.
