Overview
The AD9613BCPZ-170 is a high-performance, 12-bit, dual analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is designed for applications requiring high-speed and high-resolution data conversion. It operates at sample rates of up to 250 MSPS and is suitable for a wide range of applications, including communications, medical imaging, and industrial instrumentation.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Sample Rate | Up to 250 MSPS |
| Supply Voltage | 1.8 V |
| Power Consumption | 770 mW at 250 MSPS |
| Output Format | LVDS (ANSI-644 levels) |
| Input Clock Divider | Integer 1-to-8 |
| Maximum Input Clock Frequency | 625 MHz |

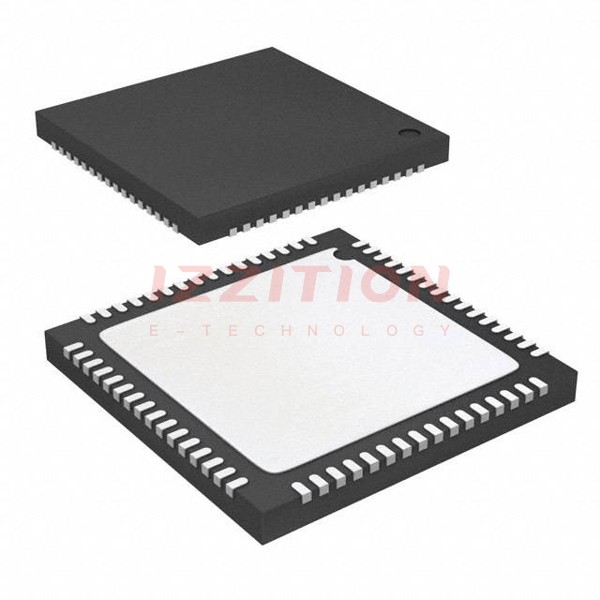

| Package Type | 64-Lead LFCSP (9mm x 9mm with EP) |
| Operating Temperature Range | −40°C to +85°C |
| Signal-to-Noise Ratio (SNR) | 69.6 dBFS at 185 MHz fIN and 250 MSPS |
| Spurious-Free Dynamic Range (SFDR) | 86 dBc at 185 MHz fIN and 250 MSPS |
Key Features
- High-Speed Sampling: Sample rates of up to 250 MSPS.
- High Resolution: 12-bit resolution for precise data conversion.
- Low Noise: −149.9 dBFS/Hz input noise at 185 MHz, −1 dBFS AIN and 250 MSPS.
- LVDS Outputs: Outputs are in LVDS (ANSI-644 levels) format.
- Flexible Clocking: Integer 1-to-8 input clock divider with a maximum input clock frequency of 625 MHz.
- Synchronization Capability: Allows synchronized timing between multiple devices.
- SPI-Compatible Interface: Programming and control via a 3-pin, SPI-compatible serial interface.
- Internal ADC Voltage Reference: Provides stable voltage reference for the ADC.
- Differential or Single-Ended Input: Input stage can be ac- or dc-coupled in differential or single-ended modes.
Applications
- Communications Systems: Suitable for high-speed data conversion in wireless and wired communication systems.
- Medical Imaging: Used in medical imaging equipment such as MRI and CT scanners.
- Industrial Instrumentation: Ideal for high-speed data acquisition in industrial control and measurement systems.
- Radar and Aerospace: Applicable in radar systems and aerospace applications requiring high-speed and high-resolution data conversion.
Q & A
- What is the maximum sample rate of the AD9613BCPZ-170?
The maximum sample rate of the AD9613BCPZ-170 is up to 250 MSPS.
- What is the supply voltage for the AD9613BCPZ-170?
The supply voltage for the AD9613BCPZ-170 is 1.8 V.
- What is the power consumption of the AD9613BCPZ-170 at 250 MSPS?
The power consumption of the AD9613BCPZ-170 at 250 MSPS is 770 mW.
- What type of output format does the AD9613BCPZ-170 use?
The AD9613BCPZ-170 uses LVDS (ANSI-644 levels) output format.
- Can the AD9613BCPZ-170 be synchronized with other devices?
Yes, the AD9613BCPZ-170 has synchronization capability to allow synchronized timing between multiple devices.
- What is the operating temperature range of the AD9613BCPZ-170?
The operating temperature range of the AD9613BCPZ-170 is −40°C to +85°C.
- What is the signal-to-noise ratio (SNR) of the AD9613BCPZ-170 at 185 MHz fIN and 250 MSPS?
The SNR of the AD9613BCPZ-170 at 185 MHz fIN and 250 MSPS is 69.6 dBFS.
- What is the spurious-free dynamic range (SFDR) of the AD9613BCPZ-170 at 185 MHz fIN and 250 MSPS?
The SFDR of the AD9613BCPZ-170 at 185 MHz fIN and 250 MSPS is 86 dBc.
- What type of package does the AD9613BCPZ-170 come in?
The AD9613BCPZ-170 comes in a 64-Lead LFCSP (9mm x 9mm with EP) package.
- How is the AD9613BCPZ-170 programmed and controlled?
The AD9613BCPZ-170 is programmed and controlled using a 3-pin, SPI-compatible serial interface.
