Overview
The AD9601BCPZ-250 is a 10-bit monolithic sampling analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is optimized for high performance, low power consumption, and ease of use, making it suitable for a wide range of applications. The AD9601 operates at a conversion rate of up to 250 million samples per second (MSPS) and is fabricated on an advanced CMOS process. It includes all necessary functions such as a track-and-hold (T/H) circuit and an internal voltage reference, providing a complete signal conversion solution. The ADC supports a 1.8 V analog and digital supply operation and features CMOS-compatible digital outputs with selectable output data formats (offset binary, twos complement, Gray code).
Key Specifications
| Parameter | Conditions | Typical | Maximum | Unit |
|---|---|---|---|---|
| Maximum Conversion Rate | Full | 250 | 250 | MSPS |
| Minimum Conversion Rate | Full | 40 | 40 | MSPS |
| CLK+ Pulse Width High (tCH) | Full | 2.4 | 2.15 | ns |
| CLK+ Pulse Width Low (tCL) | Full | 2.4 | 2.15 | ns |
| Output, Single Data Port Mode Data Propagation Delay (tPD) | 25°C | 3.7 | 3.7 | ns |
| DCO Propagation Delay (tCPD) | 25°C | 3.4 | 3.4 | ns |
| Data to DCO Skew (tSKEW) | Full | 0.3 | 0.55 | ns |
| Latency | Full | 6 | 6 | Cycles |
| Analog Supply Voltage (AVDD) | 1.8 | 1.8 | V | |
| Digital Supply Voltage (DRVDD) | 1.8 | 1.8 | V | |
| Power Dissipation | @ 250 MSPS | 322 | 322 | mW |
Key Features
- High-speed conversion rate of up to 250 MSPS
- Integrated track-and-hold (T/H) circuit and internal voltage reference
- Low power dissipation: 322 mW at 250 MSPS
- CMOS-compatible digital outputs with selectable output data formats (offset binary, twos complement, Gray code)
- Programmable input voltage range: 1.0 V to 1.5 V, 1.25 V nominal
- On-chip clock duty cycle stabilizer and integrated data capture clock
- Differential analog input with on-chip buffer and self-biased to a nominal 1.4 V

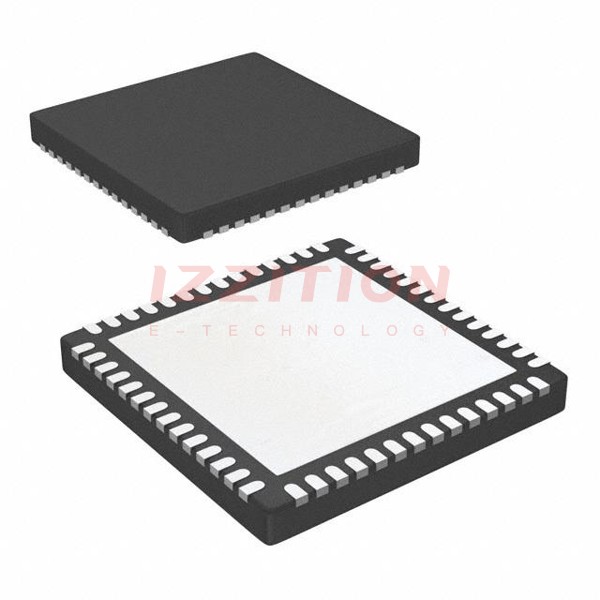

- Available in a 56-lead LFCSP package, specified over the industrial temperature range (−40°C to +85°C)
Applications
- Wireless and wired broadband communications
- Cable reverse path communications
- Communications test equipment
- Radar and satellite subsystems
- Power amplifier linearization
Q & A
- What is the maximum conversion rate of the AD9601BCPZ-250?
The maximum conversion rate of the AD9601BCPZ-250 is 250 MSPS.
- What is the power dissipation of the AD9601BCPZ-250 at 250 MSPS?
The power dissipation is 322 mW at 250 MSPS.
- What are the supported output data formats for the AD9601BCPZ-250?
The supported output data formats are offset binary, twos complement, and Gray code.
- What is the analog supply voltage for the AD9601BCPZ-250?
The analog supply voltage is 1.8 V.
- What is the package type and temperature range for the AD9601BCPZ-250?
The device is available in a 56-lead LFCSP package and is specified over the industrial temperature range (−40°C to +85°C).
- Does the AD9601BCPZ-250 have an integrated track-and-hold circuit?
Yes, the AD9601BCPZ-250 includes an integrated track-and-hold (T/H) circuit.
- What is the typical latency of the AD9601BCPZ-250?
The typical latency is 6 cycles.
- Can the input voltage range of the AD9601BCPZ-250 be programmed?
Yes, the input voltage range can be programmed from 1.0 V to 1.5 V, with a nominal value of 1.25 V.
- What type of analog input does the AD9601BCPZ-250 support?
The device supports differential analog input with an on-chip buffer.
- What are some of the key applications for the AD9601BCPZ-250?
Key applications include wireless and wired broadband communications, cable reverse path communications, communications test equipment, radar and satellite subsystems, and power amplifier linearization.
