Overview
The AD9601BCPZ-200 is a high-performance, 10-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This integrated circuit is designed for applications requiring high-speed and low-power consumption. The AD9601BCPZ-200 features a pipelined architecture, which enables it to achieve high conversion rates while maintaining excellent linearity and dynamic performance.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 10 bits |
| Conversion Rate | Up to 200 MSPS |
| Input Type | Single-ended |
| Power Supply | 1.8V |

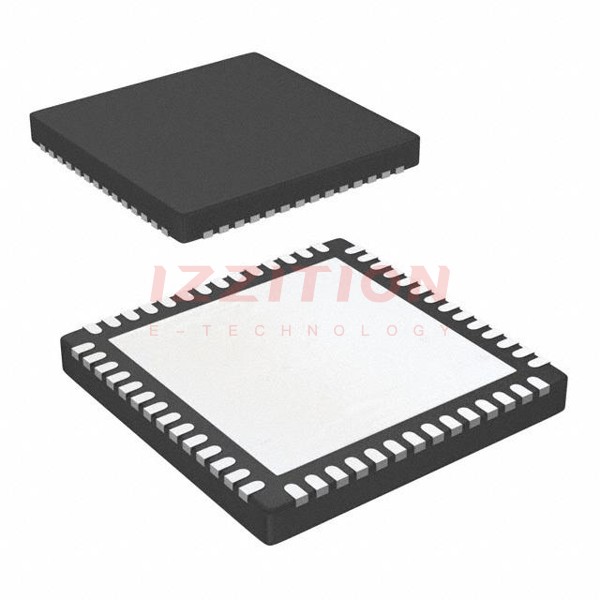

| Package Type | 56-LFCSP-VQ (8x8 mm) |
| Operating Temperature | -40°C to 85°C |
Key Features
- Pipelined architecture for high-speed conversions
- Low power consumption, suitable for battery-powered devices
- High linearity and dynamic performance
- Single-ended input
- Compact 56-LFCSP-VQ package with an exposed pad for thermal management
Applications
The AD9601BCPZ-200 is suitable for a variety of high-speed data acquisition applications, including:
- Medical imaging and diagnostics
- Radar and communications systems
- Industrial instrumentation and control
- Aerospace and defense systems
- High-speed data acquisition systems
Q & A
- What is the resolution of the AD9601BCPZ-200 ADC?
The AD9601BCPZ-200 has a resolution of 10 bits. - What is the maximum conversion rate of the AD9601BCPZ-200?
The maximum conversion rate is up to 200 MSPS. - What type of input does the AD9601BCPZ-200 support?
The AD9601BCPZ-200 supports single-ended inputs. - What is the power supply voltage for the AD9601BCPZ-200?
The power supply voltage is 1.8V. - What is the package type of the AD9601BCPZ-200?
The package type is 56-LFCSP-VQ (8x8 mm). - What is the operating temperature range of the AD9601BCPZ-200?
The operating temperature range is -40°C to 85°C. - What are some typical applications for the AD9601BCPZ-200?
Typical applications include medical imaging, radar and communications systems, industrial instrumentation, aerospace and defense systems, and high-speed data acquisition systems. - Does the AD9601BCPZ-200 have any specific thermal management features?
Yes, it has an exposed pad for thermal management. - Is the AD9601BCPZ-200 suitable for battery-powered devices?
Yes, it is suitable due to its low power consumption. - Where can I find detailed specifications and datasheets for the AD9601BCPZ-200?
Detailed specifications and datasheets can be found on the official Analog Devices website, as well as on distributor websites like Digi-Key and Mouser.
