Overview

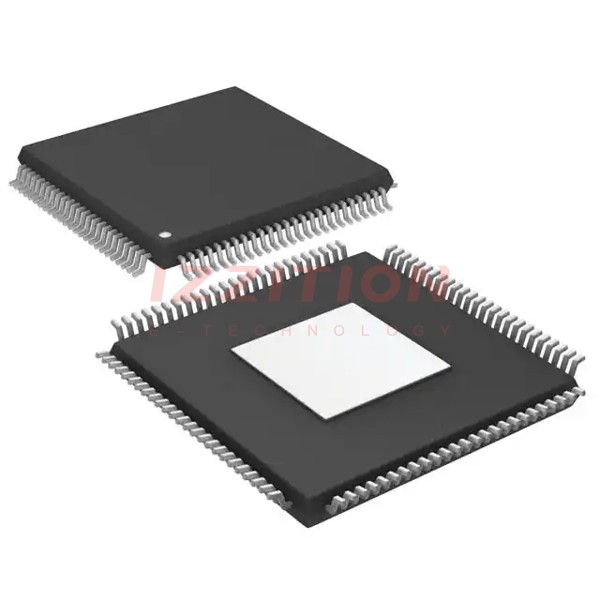

The AD9411BSVZ-200, produced by Analog Devices Inc., is a 10-bit monolithic sampling analog-to-digital converter (ADC) designed for high-performance applications. This ADC is optimized for low power consumption and ease of use, making it suitable for a wide range of broadband and carrier systems. It operates at a conversion rate of up to 200 million samples per second (MSPS) and features a differential sample clock and LVDS-compatible digital outputs. The device includes all necessary functions such as track-and-hold (T/H) and reference on the chip, providing a complete conversion solution. It is fabricated on an advanced BiCMOS process and is available in a 100-lead surface-mount plastic package (e-PAD TQFP-100) with an industrial temperature range of –40°C to +85°C.
Key Specifications
Parameter | Value | Unit |
---|---|---|
Resolution | 10 bits | |
Sampling Rate | Up to 200 MSPS | |
Supply Voltage | 3.3 V | V |
Input Voltage Range | 1.5 V | V |
Power Dissipation | 1.25 W (typical @ 200 MSPS) | W |
SNR (Signal-to-Noise Ratio) | 60 dB (typical @ 200 MSPS, 70 MHz input) | dB |
SINAD (Signal-to-Noise and Distortion Ratio) | 59.5 dB (typical @ 200 MSPS, 100 MHz input) | dB |
Effective Number of Bits (ENOB) | 9.8 bits (typical @ 200 MSPS, 10 MHz input) | Bits |
Differential Non-Linearity (DNL) | ±0.15 LSB (typical) | LSB |
Integral Non-Linearity (INL) | ±0.25 LSB (typical) | LSB |
Output Data Format | LVDS, Two's Complement and Offset Binary | |
Package Type | 100-Lead Thin Quad Flat Package (e-PAD TQFP-100) | |
Operating Temperature Range | –40°C to +85°C | °C |
Key Features
- High performance with 60 dB SNR at 200 MSPS with a 70 MHz input.
- Low power consumption of 1.25 W at 200 MSPS.
- Ease of use with LVDS output data and output clock signal, compatible with current FPGA technology.
- On-chip reference and track-and-hold circuitry for a complete conversion solution.
- Differential sample clock and LVDS-compatible digital outputs.
- Support for both two's complement and offset binary data formats.
- Advanced BiCMOS process fabrication.
Applications
- Wireless and wired broadband communications.
- Cable reverse path communications.
- Communications test equipment.
- Radar and satellite subsystems.
Q & A
- What is the resolution of the AD9411BSVZ-200?
The AD9411BSVZ-200 has a resolution of 10 bits. - What is the maximum sampling rate of the AD9411BSVZ-200?
The maximum sampling rate is up to 200 MSPS. - What is the supply voltage for the AD9411BSVZ-200?
The supply voltage is 3.3 V. - What is the typical power dissipation at 200 MSPS?
The typical power dissipation is 1.25 W. - What is the SNR at 200 MSPS with a 70 MHz input?
The SNR is typically 60 dB. - What output data formats are supported by the AD9411BSVZ-200?
The device supports both two's complement and offset binary formats. - What type of package is the AD9411BSVZ-200 available in?
The device is available in a 100-Lead Thin Quad Flat Package (e-PAD TQFP-100). - What is the operating temperature range of the AD9411BSVZ-200?
The operating temperature range is –40°C to +85°C. - What are some typical applications of the AD9411BSVZ-200?
Typical applications include wireless and wired broadband communications, cable reverse path communications, communications test equipment, and radar and satellite subsystems. - Does the AD9411BSVZ-200 have on-chip reference and track-and-hold circuitry?
Yes, the device includes on-chip reference and track-and-hold circuitry.
