Overview
The AD9411BSV-170 is a high-performance, 10-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed for high-speed data conversion, making it suitable for a variety of applications that require precise and rapid analog-to-digital signal processing.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 10 bits |
| Sampling Rate | 170 MSPS (Mega Samples Per Second) |
| Supply Voltage | 3.3 V |
| Operating Temperature | –40°C to +85°C |

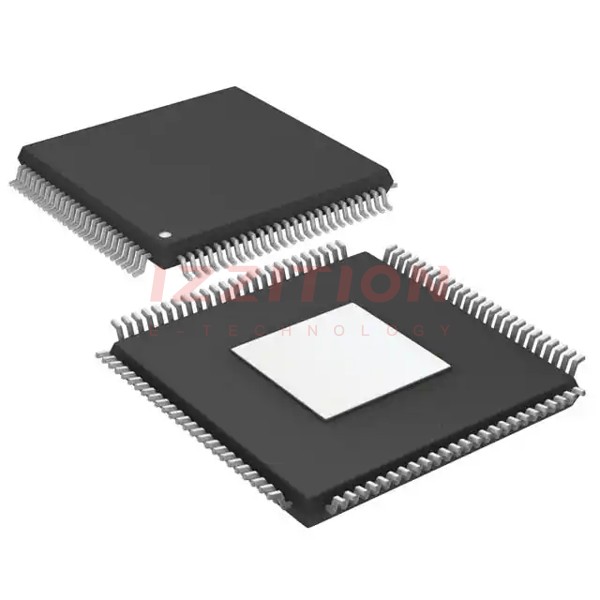

| Package Type | 100-Pin TQFP (Thin Quad Flat Package) |
| Interface | Parallel/LVDS |
Key Features
- High-speed data conversion with a sampling rate of 170 MSPS.
- 10-bit resolution providing high accuracy in digital signal representation.
- Operates on a 3.3 V supply voltage, which is efficient for many modern electronic systems.
- Wide operating temperature range from –40°C to +85°C, making it suitable for various environmental conditions.
- Parallel and LVDS interface options for flexible data transfer.
- Compact 100-Pin TQFP package, ideal for space-sensitive applications.
Applications
- High-speed data acquisition systems.
- Medical imaging and diagnostic equipment.
- Radar and communication systems.
- Industrial control and automation.
- Aerospace and defense applications.
Q & A
- What is the resolution of the AD9411BSV-170 ADC?
The AD9411BSV-170 has a resolution of 10 bits. - What is the maximum sampling rate of the AD9411BSV-170?
The maximum sampling rate is 170 MSPS. - What is the supply voltage for the AD9411BSV-170?
The supply voltage is 3.3 V. - What is the operating temperature range of the AD9411BSV-170?
The operating temperature range is from –40°C to +85°C. - What type of package does the AD9411BSV-170 come in?
The AD9411BSV-170 comes in a 100-Pin TQFP package. - What interfaces are available for the AD9411BSV-170?
The interfaces available are Parallel and LVDS. - What are some common applications of the AD9411BSV-170?
Common applications include high-speed data acquisition, medical imaging, radar and communication systems, industrial control, and aerospace and defense. - Is the AD9411BSV-170 suitable for high-temperature environments?
Yes, it can operate up to +85°C. - How does the AD9411BSV-170 contribute to system efficiency?
It contributes through its high-speed data conversion and low power consumption relative to its performance. - What is the significance of the TQFP package in the AD9411BSV-170?
The TQFP package is compact and suitable for space-sensitive applications, also compatible with automated assembly processes.
