Analog Devices Inc. AD9058AKD

Manufacturer No:
AD9058AKD
Manufacturer:
Analog Devices Inc.
Package:
Tube
Description:

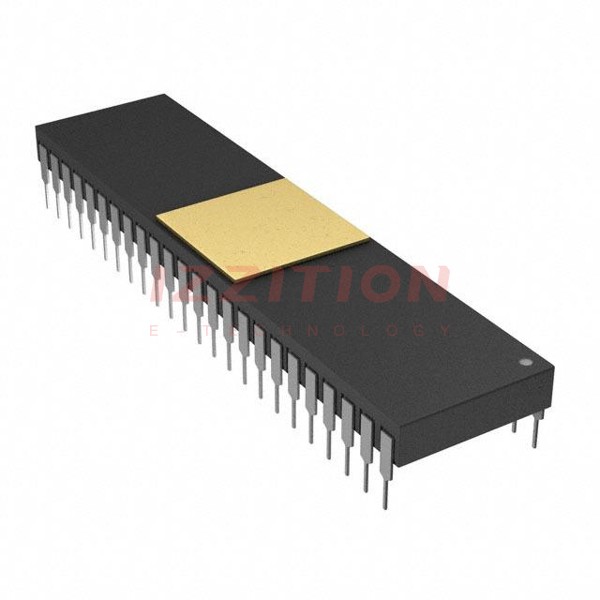

IC ADC 8BIT FLASH 48CDIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The AD9058AKD, produced by Analog Devices Inc., is a high-performance analog-to-digital converter (ADC) that integrates two independent 8-bit ADCs on a single monolithic IC. This component is designed to provide a cost-effective solution for systems requiring multiple ADCs, offering optimized dynamic performance and low power consumption. The AD9058AKD supports conversion rates up to 50 MSPS and features an optional on-board voltage reference, making it versatile for various data acquisition applications.

Key Specifications

Parameter Value
Number of ADCs 2
Resolution 8-bit
Sampling Rate Up to 50 MSPS
Analog Input Range 0 V to 2 V (unipolar), ±1 V (bipolar with external buffering)
Power Consumption < 0.5 W/channel
Temperature Range Commercial: 0°C to 70°C, Military: –55°C to +125°C
Package Type Hermetic 48-lead DIP, 44-lead “J” lead packages
Digital Compatibility TTL compatible

Key Features

  • Two independent 8-bit ADCs on a single IC, reducing component count and system complexity.
  • Optional on-board 2 V voltage reference, capable of driving both ADCs.
  • Patented interpolating architecture, reducing circuit complexity and input capacitance.
  • Low power consumption of less than 0.5 W per channel.
  • High dynamic performance with optimized SNR and ENOB.
  • TTL compatible digital inputs and outputs.
  • Flexible analog input ranges, including unipolar and bipolar configurations with external buffering.

Applications

  • Data acquisition systems requiring multiple high-speed ADCs.
  • Medical imaging and diagnostic equipment.
  • Aerospace and defense systems due to its military temperature range.
  • Industrial control and monitoring systems.
  • High-speed test and measurement instruments.

Q & A

  1. What is the resolution of the AD9058AKD ADCs?

    The AD9058AKD features two 8-bit analog-to-digital converters.

  2. What is the maximum sampling rate of the AD9058AKD?

    The maximum sampling rate is up to 50 MSPS.

  3. What is the typical power consumption per channel of the AD9058AKD?

    The power consumption is less than 0.5 W per channel.

  4. Does the AD9058AKD have an on-board voltage reference?
  5. What are the temperature ranges for the AD9058AKD?

    The commercial temperature range is 0°C to 70°C, and the military temperature range is –55°C to +125°C.

  6. What types of packages are available for the AD9058AKD?

    The AD9058AKD is available in hermetic 48-lead DIP and 44-lead “J” lead packages.

  7. Are the digital inputs and outputs of the AD9058AKD TTL compatible?
  8. Can the AD9058AKD handle bipolar input signals?
  9. What is the typical analog input range for the AD9058AKD?

    The typical analog input range is 0 V to 2 V for unipolar operation, and ±1 V with external buffering for bipolar operation.

  10. What is the advantage of the interpolating architecture used in the AD9058AKD?

    The interpolating architecture reduces circuit complexity, die size, and input capacitance compared to traditional flash converters.

Product Attributes

Number of Bits:8
Sampling Rate (Per Second):50M
Number of Inputs:2
Input Type:Single Ended
Data Interface:Parallel
Configuration:ADC
Ratio - S/H:ADC:-
Number of A/D Converters:2
Architecture:Flash
Reference Type:Internal
Voltage - Supply, Analog:±5V
Voltage - Supply, Digital:±5V
Features:Simultaneous Sampling
Operating Temperature:0°C ~ 70°C
Package / Case:48-CDIP (0.600", 15.24mm)
Supplier Device Package:48-CDIP
Mounting Type:Through Hole
0 Remaining View Similar

In Stock

$104.04
2

Please send RFQ , we will respond immediately.

Same Series
AD9058AJJ
AD9058AJJ
IC ADC 8BIT FLASH 44JLCC
AD9058AKD
AD9058AKD
IC ADC 8BIT FLASH 48CDIP
AD9058AKJ
AD9058AKJ
IC ADC 8BIT FLASH 44JLCC
AD9058ATD/883B
AD9058ATD/883B
IC ADC 8BIT 48CERSIP
