Overview

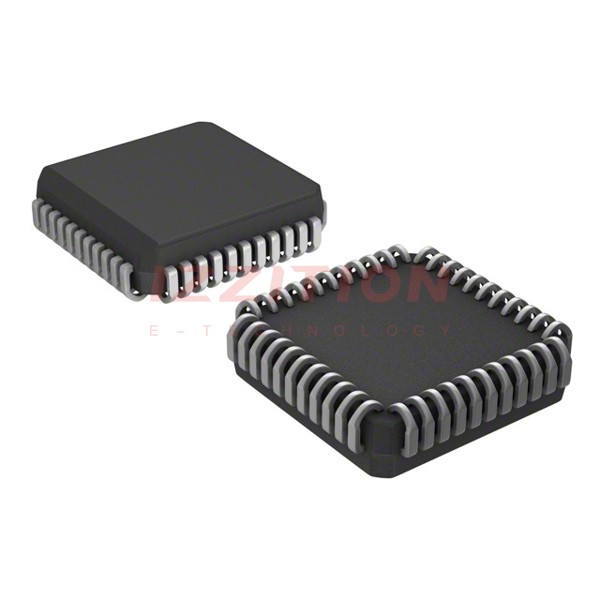

The AD9058AJJ is a dual 8-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. Although this component is now obsolete and no longer manufactured, it was widely used in various applications requiring high-speed analog-to-digital conversion. The AD9058AJJ operates on a single 5V supply and features a 44-lead JLCC (J-lead) package, making it suitable for a range of electronic systems.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 8-bit (each converter) |
| Number of Converters | Dual |
| Supply Voltage | 5V |
| Operating Temperature | 0°C to 70°C |
| Package Type | 44-Lead JLCC (J-lead) |
| Conversion Rate | 50 MSPS (per converter) |
Key Features
- Dual 8-bit analog-to-digital converters for simultaneous or independent conversion.
- High conversion rate of 50 MSPS per converter.
- Single 5V supply voltage.
- 44-lead JLCC (J-lead) package for compact and reliable mounting.
- Operating temperature range of 0°C to 70°C.
Applications
The AD9058AJJ was commonly used in various high-speed data acquisition systems, medical imaging devices, radar systems, and other applications requiring dual-channel analog-to-digital conversion. Its high conversion rate and dual converter design made it suitable for scenarios where simultaneous or independent conversion of two analog signals was necessary.
Q & A
- What is the resolution of the AD9058AJJ ADC?
The AD9058AJJ has a resolution of 8 bits for each converter. - How many converters does the AD9058AJJ have?
The AD9058AJJ features dual 8-bit analog-to-digital converters. - What is the supply voltage for the AD9058AJJ?
The AD9058AJJ operates on a single 5V supply voltage. - What is the operating temperature range of the AD9058AJJ?
The operating temperature range is 0°C to 70°C. - What type of package does the AD9058AJJ come in?
The AD9058AJJ comes in a 44-lead JLCC (J-lead) package. - What is the conversion rate of the AD9058AJJ?
The conversion rate is 50 MSPS per converter. - Is the AD9058AJJ still in production?
No, the AD9058AJJ is obsolete and no longer manufactured. - What are some common applications for the AD9058AJJ?
Common applications include high-speed data acquisition systems, medical imaging devices, and radar systems. - Where can I find detailed specifications for the AD9058AJJ?
Detailed specifications can be found on the official Analog Devices website, as well as on distributor websites like Mouser and Digi-Key. - What is the significance of the 'JJ' suffix in the AD9058AJJ part number?
The 'JJ' suffix typically indicates the package type and temperature range, in this case, a 44-lead JLCC package with an operating temperature range of 0°C to 70°C.
