Overview

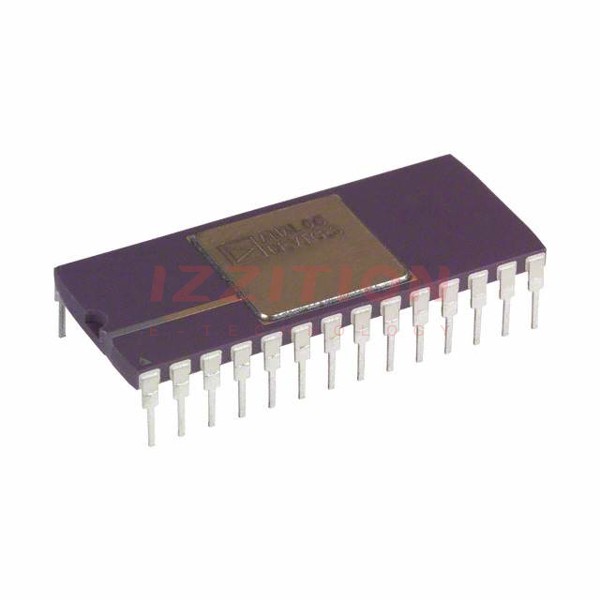

The AD871JD is a high-performance, 12-bit analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This monolithic ADC is designed to operate at a sampling rate of 5 million samples per second (MSPS). It is part of Analog Devices' extensive range of analog, mixed-signal, and digital signal processing technologies. The AD871JD is known for its accuracy and reliability, making it suitable for various applications requiring high-speed data acquisition.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Resolution | 12 bits |
| Sampling Rate | 5 MSPS |
| Package | 28-pin CDIP |
| Operating Temperature Range | Commercial (0°C to +70°C) |
| Input Type | Parallel Word Access |
| RoHS Status | Lead free/RoHS Compliant |
Key Features
- High-speed 12-bit analog-to-digital conversion with a sampling rate of 5 MSPS.
- Monolithic design ensuring high reliability and performance.
- Parallel word access for efficient data transfer.
- Single-supply operation, simplifying system design.
- Low power consumption, suitable for battery-powered and portable applications.
- High accuracy and linearity, ensuring precise data acquisition.
Applications
- Data acquisition systems requiring high-speed and high-resolution ADCs.
- Digital multimeters and other measurement instruments.
- Medical instrumentation and imaging devices.
- Communications and radar processing systems.
- Digital signal processing in various industrial and consumer electronics.
- Scientific instruments and rotary encoders.
Q & A
- What is the resolution of the AD871JD ADC?
The AD871JD has a resolution of 12 bits.
- What is the sampling rate of the AD871JD?
The AD871JD operates at a sampling rate of 5 million samples per second (MSPS).
- In what package is the AD871JD available?
The AD871JD is available in a 28-pin CDIP package.
- What is the operating temperature range of the AD871JD?
The AD871JD is specified over the commercial temperature range of 0°C to +70°C.
- Is the AD871JD RoHS compliant?
Yes, the AD871JD is lead free and RoHS compliant.
- What type of input does the AD871JD support?
The AD871JD supports parallel word access.
- What are some typical applications of the AD871JD?
The AD871JD is used in data acquisition systems, digital multimeters, medical instrumentation, communications, and scientific instruments.
- How does the AD871JD ensure high accuracy?
The AD871JD ensures high accuracy through its monolithic design and precise conversion mechanisms.
- Is the AD871JD suitable for portable applications?
Yes, the AD871JD is suitable for portable applications due to its low power consumption.
- Where can I find the datasheet for the AD871JD?
The datasheet for the AD871JD can be found on the official Analog Devices website or through authorized distributors like Micro Mall for Electronic Components.
