Overview

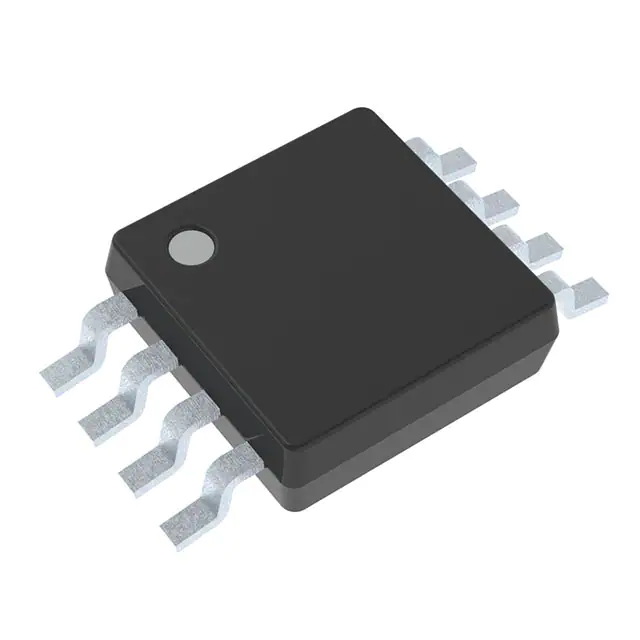

The AD8616ARM-REEL is a precision dual CMOS rail-to-rail input/output operational amplifier produced by Analog Devices, Inc. This component is designed to offer high precision, low noise, and excellent dynamic performance, making it suitable for a wide range of applications. The AD8616ARM-REEL operates on a supply voltage range from 2.7V to 5V and is packaged in a compact 8-MSOP or 8-TSSOP case.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer Part Number | AD8616ARM-REEL |
| Manufacturer | Analog Devices, Inc. |
| Amplifier Type | CMOS |
| Number of Circuits | Dual |
| Output Type | Rail-to-Rail |
| Gain Bandwidth Product (GBP) | 24 MHz |
| Slew Rate | 12 V/μs |
| Input Offset Voltage | 23 μV |
| Input Bias Current | 0.2 pA |
| Supply Voltage Range | 2.7 V to 5 V |
| Supply Current | 1.7 mA per amplifier |
| Output Current | 150 mA per amplifier |
| Operating Temperature | -40°C to 125°C |
| Package/Case | 8-MSOP, 8-TSSOP |
Key Features
- High precision and low noise operation
- Rail-to-rail input and output capability
- Wide bandwidth of 24 MHz and high slew rate of 12 V/μs
- Extremely low input bias current of 0.2 pA
- Low power consumption of 1.7 mA per amplifier
- Compact 8-MSOP or 8-TSSOP package
- Operates on a wide supply voltage range from 2.7V to 5V
Applications
The AD8616ARM-REEL is suitable for a wide range of applications, including:
- Precision instrumentation and measurement systems
- Audio and video processing
- Medical devices and diagnostic equipment
- Industrial control and automation systems
- High-performance data acquisition systems
Q & A
- What is the AD8616ARM-REEL?
The AD8616ARM-REEL is a precision dual CMOS rail-to-rail input/output operational amplifier produced by Analog Devices, Inc.
- What is the gain bandwidth product of the AD8616ARM-REEL?
The gain bandwidth product of the AD8616ARM-REEL is 24 MHz.
- What is the slew rate of the AD8616ARM-REEL?
The slew rate of the AD8616ARM-REEL is 12 V/μs.
- What is the input offset voltage of the AD8616ARM-REEL?
The input offset voltage of the AD8616ARM-REEL is 23 μV.
- What is the supply voltage range of the AD8616ARM-REEL?
The supply voltage range of the AD8616ARM-REEL is from 2.7 V to 5 V.
- What is the package type of the AD8616ARM-REEL?
The AD8616ARM-REEL is packaged in an 8-MSOP or 8-TSSOP case.
- What are the typical applications of the AD8616ARM-REEL?
The AD8616ARM-REEL is used in precision instrumentation, audio and video processing, medical devices, industrial control systems, and high-performance data acquisition systems.
- What is the operating temperature range of the AD8616ARM-REEL?
The operating temperature range of the AD8616ARM-REEL is from -40°C to 125°C.
- How much current does the AD8616ARM-REEL consume per amplifier?
The AD8616ARM-REEL consumes 1.7 mA of current per amplifier.
- What is the output current capability of the AD8616ARM-REEL per amplifier?
The output current capability of the AD8616ARM-REEL is 150 mA per amplifier.
