Overview

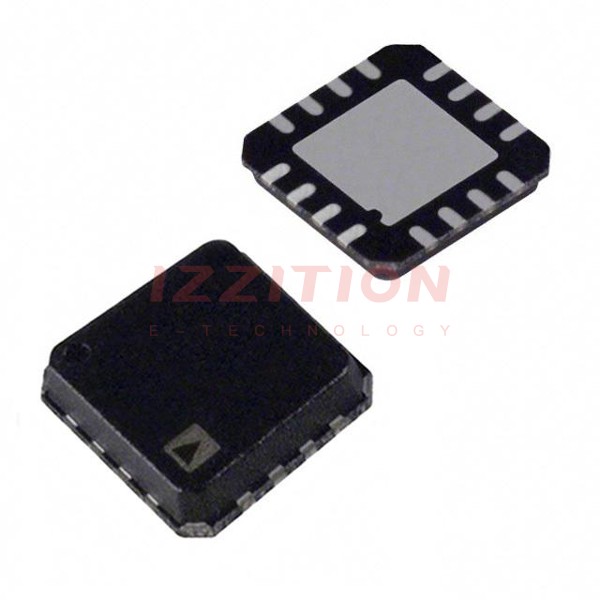

The AD8270ACPZ-R7, produced by Analog Devices Inc., is a precision dual-channel difference amplifier. This integrated circuit is designed to provide high accuracy and stability in various signal processing applications. It features tightly matched resistors, which are laser trimmed and tested to ensure high precision in specifications such as gain drift, common-mode rejection, and gain error. The AD8270 is packaged in a compact 4 mm × 4 mm LFCSP, making it suitable for space-constrained designs while maintaining excellent thermal performance.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | 16-LFCSP (4x4 mm) |
| Supply Voltage | ±15 V, ±5 V (can be used with unbalanced supplies) |
| Input Resistance | Several kilohms (kΩ) |
| Output Current Limit | Approximately 100 mA |
| Bandwidth | 20 MHz |
| Common-Mode Rejection Ratio (CMRR) | High CMRR over frequency due to low capacitance |
| Gain Accuracy | High accuracy due to tightly matched resistors |
| Thermal Pad | Connected internally to -VS, optional connection for better heat dissipation |
Key Features
- High Accuracy and Stability: Tightly matched resistors ensure high precision in gain drift, common-mode rejection, and gain error.
- Compact Packaging: 4 mm × 4 mm LFCSP package with a thermal pad for improved heat dissipation.
- Flexible Supply Voltage: Can be powered with ±15 V, ±5 V, or unbalanced supplies.
- Short-Circuit Protection: Output current limited to approximately 100 mA.
- High Bandwidth: 20 MHz bandwidth for high-frequency applications.
- Differential Output Capability: Easily configurable for differential output configurations.
- ADC Driver Capability: Suitable for driving both single-ended and differential input ADCs.
Applications
- Analog-to-Digital Converter (ADC) Drivers: Ideal for driving ADCs due to its high slew rate, drive capability, and dc accuracy.
- Signal Conditioning: Used in various signal conditioning applications requiring high accuracy and stability.
- Industrial Automation: Suitable for industrial automation systems where precise signal processing is necessary.
- Medical Devices: Used in medical devices that require high precision and reliability in signal processing.
- Test and Measurement Equipment: Employed in test and measurement equipment for accurate signal amplification and conditioning.
Q & A
- What is the package type of the AD8270ACPZ-R7?
The AD8270ACPZ-R7 is packaged in a 16-LFCSP (4x4 mm) package. - What are the typical supply voltages for the AD8270ACPZ-R7?
The AD8270ACPZ-R7 can be powered with ±15 V, ±5 V, or unbalanced supplies. - What is the output current limit of the AD8270ACPZ-R7?
The output current is limited to approximately 100 mA. - How does the AD8270ACPZ-R7 achieve high accuracy?
The AD8270ACPZ-R7 achieves high accuracy through tightly matched resistors that are laser trimmed and tested. - Can the AD8270ACPZ-R7 be used for differential output configurations?
Yes, the AD8270ACPZ-R7 can easily be configured for differential output configurations. - What is the bandwidth of the AD8270ACPZ-R7?
The bandwidth of the AD8270ACPZ-R7 is 20 MHz. - How should the thermal pad of the AD8270ACPZ-R7 be handled?
The thermal pad can be left unconnected or connected to the negative supply rail for better heat dissipation. - Can the AD8270ACPZ-R7 drive ADCs?
Yes, the AD8270ACPZ-R7 is suitable for driving both single-ended and differential input ADCs. - What precautions should be taken when handling the AD8270ACPZ-R7 on a PCB?
Ensure the PCB footprint matches the device's dimensions, and maintain space between leads and the thermal pad to minimize contamination risks. - Why is a bypass capacitor recommended for the AD8270ACPZ-R7?
A bypass capacitor is recommended to reduce noise on the supply pins and ensure stable performance.
