Overview

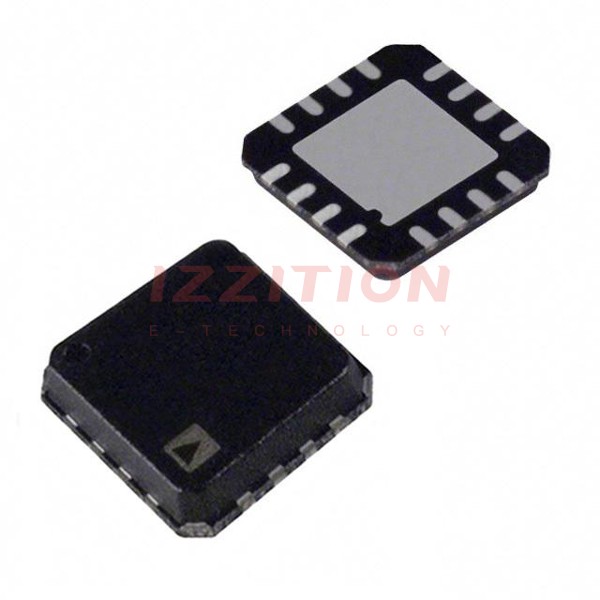

The AD8270ACPZ-WP, produced by Analog Devices Inc., is a precision dual-channel difference amplifier designed for high accuracy and reliability in various signal conditioning applications. This amplifier integrates two operational amplifiers and 14 resistors within a compact 4 mm × 4 mm LFCSP package, making it ideal for space-constrained designs. The AD8270 is notable for its built-in short-circuit protection, low distortion, and high common-mode rejection ratio (CMRR), ensuring robust performance in demanding environments.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Supply Voltage | ±2.5V to ±18V, 5V to 36V | V |
| Input Offset Voltage | 1 mV | mV |
| Common Mode Rejection Ratio (CMRR) | 76 dB | dB |
| Gain Error | 0.01% to 0.05% | % |
| Gain Drift | 1 ppm/°C | ppm/°C |
| Slew Rate | 30 V/μs | V/μs |
| Output Current Limit | 100 mA | mA |
| Operating Supply Current | 2.5 mA | mA |
| Package Type | 16-VQFN Exposed Pad, CSP | |
| Number of Pins | 16 |
Key Features
- High Accuracy: The AD8270 features laser-trimmed resistors for high accuracy in gain drift, common-mode rejection, and gain error.
- Compact Package: The amplifier is packaged in a 4 mm × 4 mm LFCSP, making it suitable for space-constrained applications.
- Short-Circuit Protection: Built-in short-circuit protection limits the output current to approximately 100 mA.
- Low Distortion: Designed for low distortion, making it suitable for high-fidelity signal conditioning.
- Flexible Power Supply: Can operate with a wide range of supply voltages, including single and dual supplies.
- High CMRR and Gain Drift Stability: Offers a high CMRR and low gain drift over temperature, ensuring stable performance.
- Ease of Use: Easy to drive with a low impedance source, such as another amplifier.
Applications
- Signal Conditioning: Ideal for precision signal conditioning in various industrial and medical applications.
- ADC Drivers: Suitable for driving both single-ended and differential input analog-to-digital converters (ADCs).
- Instrumentation Amplifiers: Can be configured as a high-performance instrumentation amplifier.
- Test and Measurement Equipment: Used in test and measurement equipment due to its high accuracy and stability.
- Portable and Battery-Powered Devices: Suitable for low power, battery-powered devices requiring high performance.
Q & A
- What is the typical supply voltage range for the AD8270?
The AD8270 can operate with supply voltages ranging from ±2.5V to ±18V and single supplies from 5V to 36V.
- What is the common-mode rejection ratio (CMRR) of the AD8270?
The CMRR of the AD8270 is 76 dB.
- How many channels does the AD8270 have?
The AD8270 is a dual-channel difference amplifier.
- What is the package type of the AD8270?
The AD8270 is packaged in a 16-VQFN Exposed Pad, CSP package.
- Does the AD8270 have built-in short-circuit protection?
Yes, the AD8270 has built-in short-circuit protection that limits the output current to approximately 100 mA.
- What is the slew rate of the AD8270?
The slew rate of the AD8270 is 30 V/μs.
- Can the AD8270 be used to drive ADCs?
Yes, the AD8270 is suitable for driving both single-ended and differential input ADCs due to its high slew rate and drive capability.
- How does the AD8270 handle thermal management?
The AD8270 has a thermal pad connected internally to the negative supply rail, which can be used to improve heat dissipation, especially in high vibration or high ambient temperature applications.
- What is the gain drift of the AD8270 over temperature?
The gain drift of the AD8270 is 1 ppm/°C.
- Can the AD8270 be configured for differential output?
Yes, the AD8270 can easily be configured for differential output, which is useful in various signal conditioning applications.
