Overview
The AD8159ASVZ is a high-performance, asynchronous, protocol-agnostic quad-lane 2:1 switch and 1:2 demultiplexer integrated circuit manufactured by Analog Devices Inc. This device is optimized for NRZ signaling with data rates of up to 3.2 Gbps per lane, making it suitable for high-speed serial link applications. It features 12 differential PECL-/CML-compatible inputs and 12 differential CML outputs, and each lane operates independently with low latency and minimal lane-to-lane skew.
Key Specifications
| Parameter | Value |
|---|---|
| Data Rate per Lane | Up to 3.2 Gbps |
| Number of Lanes | 4 |
| Input Type | Differential PECL-/CML-compatible |
| Output Type | Differential CML |
| Input Equalization Levels | 2 levels |
| Output Pre-emphasis Levels | 4 levels |
| Operating Temperature Range | -40°C to +85°C |

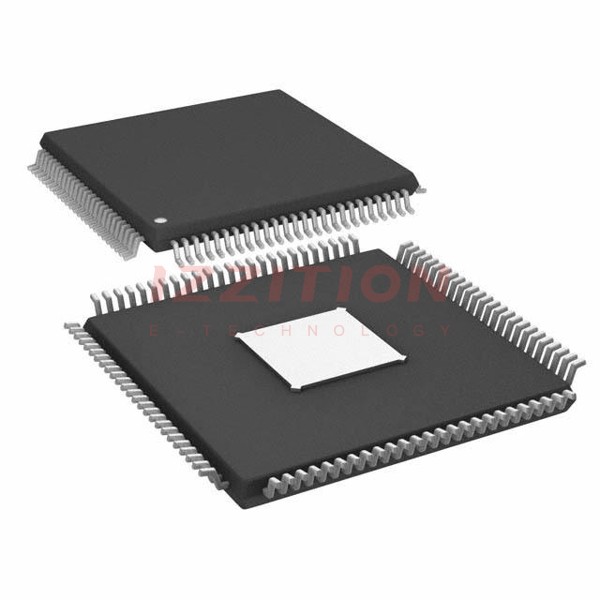

| Package Type | 100-Lead TQFP_EP |
| Voltage Supply | VCC = 3.3 V, VEE = 0 V |
Key Features
- Asynchronous, protocol-agnostic operation
- Quad-lane 2:1 switch and 1:2 demultiplexer
- Each lane runs from DC to 3.2 Gbps independently
- Compensates over 40 inches of FR4 at 3.2 Gbps through input equalization and output pre-emphasis
- Low latency and very low lane-to-lane skew
- Unicast and bicast capability for 1 + 1 or 1:1 redundancy
- Reversing of output and input pins on one port to support opposite pinouts
- Supports testing high-speed serial links by duplicating incoming data
Applications
- Redundancy on both the backplane side and the line interface side of serial links
- High-speed serial link testing by duplicating incoming data to destination and test equipment
- Connecting ASICs with opposite pinouts
- High-performance computing and data center infrastructure
- Telecommunication and networking equipment
Q & A
- What is the maximum data rate per lane of the AD8159ASVZ?
Up to 3.2 Gbps per lane.
- How many lanes does the AD8159ASVZ support?
4 lanes.
- What type of inputs and outputs does the AD8159ASVZ have?
Differential PECL-/CML-compatible inputs and differential CML outputs.
- What are the levels of input equalization and output pre-emphasis available?
2 levels of input equalization and 4 levels of output pre-emphasis.
- What is the operating temperature range of the AD8159ASVZ?
-40°C to +85°C.
- What is the package type of the AD8159ASVZ?
100-Lead TQFP_EP.
- Can the AD8159ASVZ support redundancy in serial links?
Yes, it supports 1 + 1 or 1:1 redundancy.
- How does the AD8159ASVZ handle lane-to-lane skew?
It has very low lane-to-lane skew.
- Can the AD8159ASVZ be used for testing high-speed serial links?
Yes, it can duplicate incoming data to both the destination and test equipment.
- Is the AD8159ASVZ suitable for connecting ASICs with opposite pinouts?
Yes, it supports reversing of output and input pins on one port.
