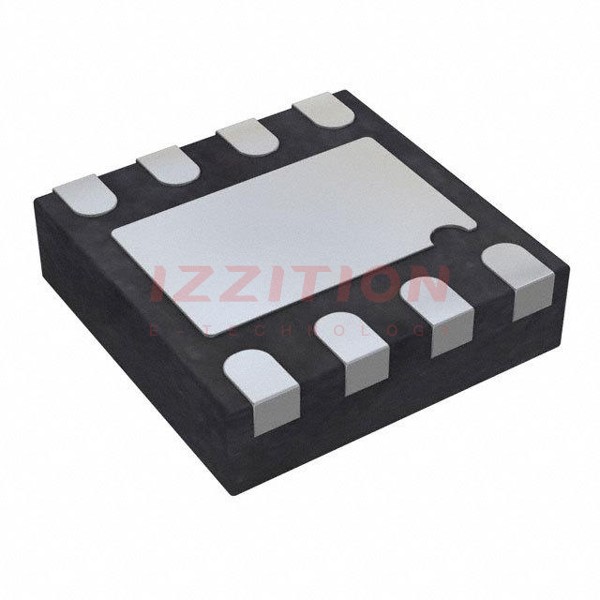

Analog Devices Inc. AD8137YCPZ-REEL

Manufacturer No:
AD8137YCPZ-REEL
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Description:
IC OPAMP DIFF 1 CIRCUIT 8LFCSP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The AD8137YCPZ-REEL7 is a high-performance, low-cost, low-power differential ADC driver manufactured by Analog Devices, Inc. This component is designed to drive ADCs in systems that are sensitive to power and cost. It features a rail-to-rail output and an internal common-mode feedback architecture, allowing for controlled output common-mode voltage and inherently balanced outputs. The AD8137 is easy to apply and supports both fully differential and single-ended-to-differential gain configurations.

Key Specifications

Parameter Value Unit
Supply Voltage Range 2.7 V to 12 V V
Supply Current 3.2 mA mA
Input Offset Voltage ±2.6 mV (max) mV
Input Bias Current 0.45 µA (max) µA
Slew Rate 450 V/µs V/µs
-3 dB Bandwidth 110 MHz MHz
Output Current per Channel 20 mA mA
Operating Temperature Range -40°C to +125°C °C
Package Type 8-Lead LFCSP (3mm x 3mm)

Key Features

  • Differential input and output with rail-to-rail output capability
  • High bandwidth of 110 MHz and high slew rate of 450 V/µs
  • Low input offset voltage and low input bias current
  • Wide supply voltage range from 2.7 V to 12 V
  • Externally adjustable gain and adjustable output common-mode voltage
  • Power-down feature for low power applications
  • Small footprint 8-LFCSP package for space-constrained designs
  • RoHS3 compliant and reliable surface mount package

Applications

  • ADC drivers
  • Automotive vision and safety systems
  • Automotive infotainment systems
  • Portable instrumentation
  • Battery-powered applications
  • Single-ended-to-differential converters
  • Differential active filters
  • Video amplifiers and level shifters
  • Instrumentation and test equipment
  • Industrial control systems and medical equipment

Q & A

  1. What is the primary function of the AD8137YCPZ-REEL7?

    The AD8137YCPZ-REEL7 is a differential ADC driver designed to drive ADCs in power and cost-sensitive systems.

  2. What is the supply voltage range for the AD8137YCPZ-REEL7?

    The supply voltage range is from 2.7 V to 12 V.

  3. What is the maximum output current per channel for the AD8137YCPZ-REEL7?

    The maximum output current per channel is 20 mA.

  4. What is the operating temperature range for the AD8137YCPZ-REEL7?

    The operating temperature range is from -40°C to +125°C.

  5. Does the AD8137YCPZ-REEL7 support power-down mode?
  6. What types of gain configurations are supported by the AD8137YCPZ-REEL7?
  7. What is the package type of the AD8137YCPZ-REEL7?
  8. Is the AD8137YCPZ-REEL7 RoHS compliant?
  9. What are some typical applications of the AD8137YCPZ-REEL7?
  10. How does the AD8137YCPZ-REEL7 manage common-mode voltage?

Product Attributes

Amplifier Type:Differential
Number of Circuits:1
Output Type:Differential, Rail-to-Rail
Slew Rate:450V/µs
Gain Bandwidth Product:-
-3db Bandwidth:110 MHz
Current - Input Bias:500 nA
Voltage - Input Offset:700 µV
Current - Supply:3.2mA
Current - Output / Channel:20 mA
Voltage - Supply Span (Min):2.7 V
Voltage - Supply Span (Max):12 V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-WFDFN Exposed Pad, CSP
Supplier Device Package:8-LFCSP (3x3)
0 Remaining View Similar

In Stock

-
298

Please send RFQ , we will respond immediately.

Same Series
AD8137YCPZ-REEL7
AD8137YCPZ-REEL7
IC OPAMP DIFF 1 CIRCUIT 8LFCSP
AD8137YRZ-REEL
AD8137YRZ-REEL
IC OPAMP DIFF 1 CIRCUIT 8SOIC
AD8137YRZ-REEL7
AD8137YRZ-REEL7
IC OPAMP DIFF 1 CIRCUIT 8SOIC
AD8137WYCPZ-R7
AD8137WYCPZ-R7
IC OPAMP DIFF 1 CIRCUIT 8LFCSP
AD8137YR
AD8137YR
IC OPAMP DIFF 1 CIRCUIT 8SOIC
AD8137YR-REEL7
AD8137YR-REEL7
IC OPAMP DIFF 1 CIRCUIT 8SOIC
AD8137YCPZ-REEL
AD8137YCPZ-REEL
IC OPAMP DIFF 1 CIRCUIT 8LFCSP
AD8137YCPZ-R2
AD8137YCPZ-R2
IC OPAMP DIFF 1 CIRCUIT 8LFCSP

Similar Products

Part Number AD8137YCPZ-REEL AD8137YCPZ-REEL7
Manufacturer Analog Devices Inc. Analog Devices Inc.
Product Status Obsolete Active
Amplifier Type Differential Differential
Number of Circuits 1 1
Output Type Differential, Rail-to-Rail Differential, Rail-to-Rail
Slew Rate 450V/µs 450V/µs
Gain Bandwidth Product - -
-3db Bandwidth 110 MHz 110 MHz
Current - Input Bias 500 nA 500 nA
Voltage - Input Offset 700 µV 700 µV
Current - Supply 3.2mA 3.2mA
Current - Output / Channel 20 mA 20 mA
Voltage - Supply Span (Min) 2.7 V 2.7 V
Voltage - Supply Span (Max) 12 V 12 V
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C
Mounting Type Surface Mount Surface Mount
Package / Case 8-WFDFN Exposed Pad, CSP 8-WFDFN Exposed Pad, CSP
Supplier Device Package 8-LFCSP (3x3) 8-LFCSP (3x3)
