Overview

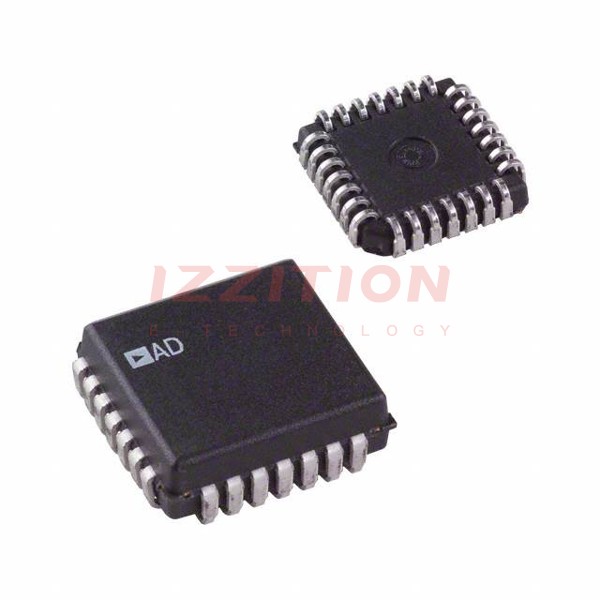

The AD7886JP-REEL is a high-speed, 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed for applications requiring high accuracy and fast conversion rates. It features a sampling rate of up to 166 kSPS and is packaged in a 28-lead PLCC (J-lead) case, making it suitable for a variety of industrial and commercial uses.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Part Number | AD7886JP-REEL |
| Number of Bits | 12 |
| Sampling Rate | Up to 166 kSPS |
| Supply Voltage - Digital | ±5V |
| Supply Voltage - Analog | ±5V |
| Reference Type | External |
| Number of Inputs | 1 |
| Number of A/D Converters | 1 |
| Input Type | Single Ended |
| Package | 28-PLCC (J-Lead) |
| Operating Temperature | -40°C to 85°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Key Features
- High-speed 12-bit analog-to-digital conversion with a sampling rate of up to 166 kSPS.
- External reference input for improved accuracy.
- Single-ended input configuration.
- Dual supply voltage: ±5V for both digital and analog circuits.
- 28-lead PLCC (J-lead) package for easy integration into various designs.
- Operating temperature range of -40°C to 85°C, making it suitable for a wide range of environments.
- Lead-free and RoHS compliant, ensuring environmental sustainability.
Applications
The AD7886JP-REEL is versatile and can be used in various applications, including:
- Industrial control systems where high-speed data acquisition is necessary.
- Medical devices requiring precise analog-to-digital conversion.
- Aerospace and defense systems that demand high reliability and accuracy.
- Automotive systems for sensor data processing.
- Test and measurement equipment where fast and accurate data conversion is critical.
Q & A
- What is the sampling rate of the AD7886JP-REEL?
The AD7886JP-REEL has a sampling rate of up to 166 kSPS. - What is the package type of the AD7886JP-REEL?
The AD7886JP-REEL is packaged in a 28-lead PLCC (J-lead) case. - What are the supply voltage requirements for the AD7886JP-REEL?
The AD7886JP-REEL requires ±5V for both digital and analog circuits. - Is the AD7886JP-REEL RoHS compliant?
Yes, the AD7886JP-REEL is lead-free and RoHS compliant. - What is the operating temperature range of the AD7886JP-REEL?
The operating temperature range is -40°C to 85°C. - What type of input does the AD7886JP-REEL support?
The AD7886JP-REEL supports single-ended input configuration. - How many A/D converters are included in the AD7886JP-REEL?
The AD7886JP-REEL includes one A/D converter. - What is the reference type for the AD7886JP-REEL?
The AD7886JP-REEL uses an external reference. - Is the AD7886JP-REEL suitable for industrial applications?
Yes, the AD7886JP-REEL is suitable for industrial control systems and other industrial applications. - Where can I find detailed specifications for the AD7886JP-REEL?
Detailed specifications can be found in the datasheet available on the Analog Devices Inc. website or through authorized distributors.
