Overview

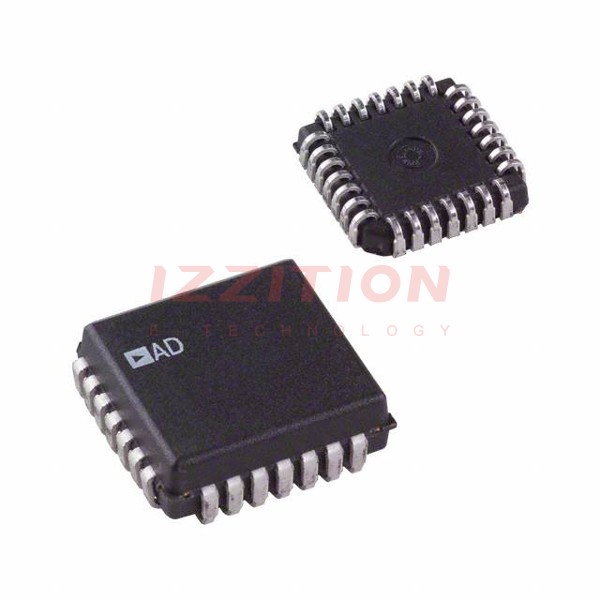

The AD7886JP-REEL is a high-performance, 12-bit analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This component is part of the AD7886 series and is known for its fast conversion time and high accuracy. It is widely used in various applications requiring precise and rapid analog-to-digital conversion.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer Part Number | AD7886JP-REEL |
| Converter Type | ADC, FLASH METHOD |
| Number of Bits | 12 |
| Number of Analog In Channels | 1 |
| Analog Input Voltage-Max | 5 V |
| Analog Input Voltage-Min | -5 V |
| Conversion Time-Max | 0.1 µs |
| Sample Rate | 1.1 MHz |
| Supply Voltage-Nom | 5 V |
| Negative Supply Voltage-Nom | -5 V |
| Operating Temperature-Max | 70 °C |
| Package Style | CHIP CARRIER |
| Pin Count | 28 |
| Technology | BICMOS |
| Temperature Grade | COMMERCIAL |
Key Features
- High-speed conversion with a maximum conversion time of 0.1 µs.
- 12-bit resolution providing high accuracy in analog-to-digital conversion.
- Single analog input channel with a wide input voltage range of -5 V to 5 V.
- Sample rate of up to 1.1 MHz, making it suitable for high-frequency applications.
- BICMOS technology ensuring low power consumption and high performance.
- Surface mount package (QCCJ) with 28 pins, facilitating easy integration into various systems.
- Commercial temperature grade, operating up to 70 °C.
Applications
The AD7886JP-REEL is versatile and can be applied in a variety of fields, including:
- High-speed data acquisition systems.
- Medical devices requiring precise and rapid signal conversion.
- Aerospace and defense applications where high accuracy and reliability are crucial.
- Industrial control systems that need fast and accurate analog-to-digital conversion.
- Automotive systems, particularly in safety and control modules.
Q & A
- What is the maximum conversion time of the AD7886JP-REEL?
The maximum conversion time is 0.1 µs. - How many bits of resolution does the AD7886JP-REEL offer?
The AD7886JP-REEL offers 12 bits of resolution. - What is the sample rate of the AD7886JP-REEL?
The sample rate is up to 1.1 MHz. - What is the operating temperature range of the AD7886JP-REEL?
The operating temperature range is up to 70 °C. - What is the package style of the AD7886JP-REEL?
The package style is a CHIP CARRIER (QCCJ) with 28 pins. - Is the AD7886JP-REEL a surface mount component?
Yes, it is a surface mount component. - What technology is used in the AD7886JP-REEL?
The AD7886JP-REEL uses BICMOS technology. - What is the analog input voltage range of the AD7886JP-REEL?
The analog input voltage range is from -5 V to 5 V. - What is the supply voltage of the AD7886JP-REEL?
The nominal supply voltage is 5 V, and the negative supply voltage is -5 V. - Is the AD7886JP-REEL RoHS compliant?
No, it is not RoHS compliant.
