Overview

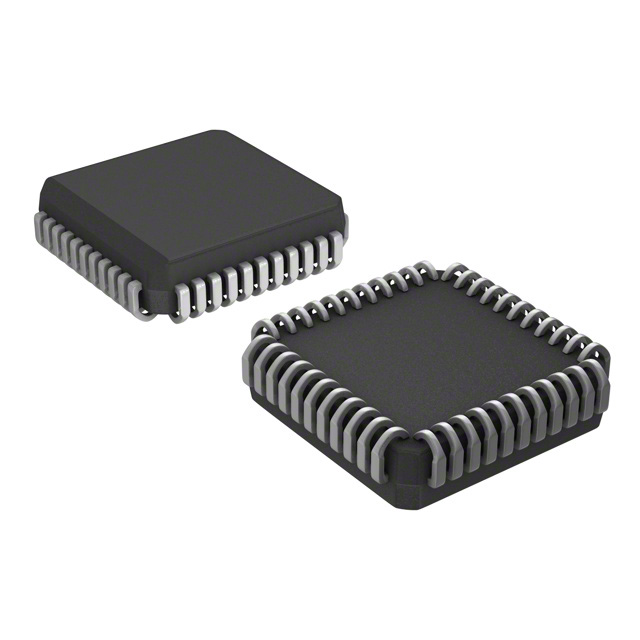

The AD7835AP-REEL is a quad 14-bit digital-to-analog converter (DAC) produced by Analog Devices Inc. This component is part of the LC2MOS family and is known for its high precision and reliability. It is widely used in various applications requiring multiple analog output channels.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 14 bits |
| Number of Channels | 4 |
| Package Type | 44-Lead PLCC |
| Operating Temperature Range | −40°C to +85°C |
| Voltage Range | ±2V, ±5V, or ±10V (depending on configuration) |
| Settling Time | 10 μs (typical) |
| Linearity Error | ±0.9 LSB (typical) |
| Power Consumption | 15 mW (typical at 5V supply) |
Key Features
- High resolution: 14-bit conversion for precise analog output.
- Quad channel: Four independent DAC channels.
- Low power consumption: Suitable for battery-powered and power-sensitive applications.
- High linearity: Ensures accurate and reliable analog output.
- Wide operating temperature range: −40°C to +85°C.
- Compact package: 44-Lead PLCC for efficient board space usage.
Applications
- Industrial control systems: For precise control and monitoring.
- Aerospace and defense: Where high reliability and precision are critical.
- Medical devices: For accurate signal generation and processing.
- Automotive systems: For various control and monitoring functions.
- Test and measurement equipment: For generating precise analog signals.
Q & A
- What is the resolution of the AD7835AP-REEL?
The AD7835AP-REEL has a resolution of 14 bits. - How many DAC channels does the AD7835AP-REEL have?
The AD7835AP-REEL has four independent DAC channels. - What is the typical settling time of the AD7835AP-REEL?
The typical settling time is 10 μs. - What is the operating temperature range of the AD7835AP-REEL?
The operating temperature range is −40°C to +85°C. - What is the package type of the AD7835AP-REEL?
The package type is 44-Lead PLCC. - What are the typical power consumption and voltage ranges for the AD7835AP-REEL?
The typical power consumption is 15 mW at a 5V supply, and the voltage range can be ±2V, ±5V, or ±10V depending on the configuration. - What are some common applications of the AD7835AP-REEL?
Common applications include industrial control systems, aerospace and defense, medical devices, automotive systems, and test and measurement equipment. - Is the AD7835AP-REEL suitable for battery-powered devices?
Yes, it is suitable due to its low power consumption. - What is the linearity error of the AD7835AP-REEL?
The linearity error is typically ±0.9 LSB. - Where can I find detailed specifications and datasheets for the AD7835AP-REEL?
Detailed specifications and datasheets can be found on the Analog Devices website and through distributors like Digi-Key and SZComponents.
