Overview

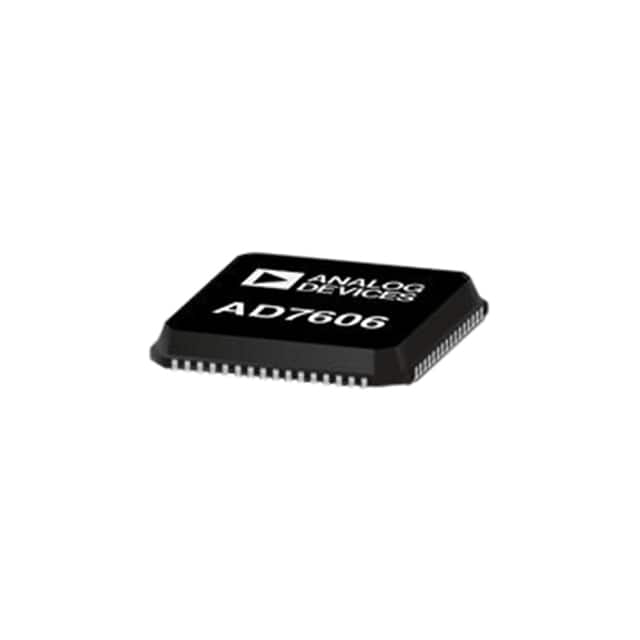

The AD7606C-18BSTZ-RL is an 18-bit, simultaneous sampling, analog-to-digital data acquisition system (DAS) manufactured by Analog Devices Inc. This component features eight channels, each equipped with analog input clamp protection, a programmable gain amplifier (PGA), a low-pass filter (LPF), and an 18-bit successive approximation register (SAR) analog-to-digital converter (ADC). It operates from a single 5 V analog supply and supports a range of input configurations, including bipolar single-ended, unipolar single-ended, and bipolar differential inputs. The AD7606C-18 is designed for high-performance applications requiring precise and simultaneous sampling of multiple analog signals.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Number of Bits | 18 | |
| Sampling Rate | 1 MSPS | |
| Number of Channels | 8 | |
| Input Type | Differential, Single Ended | |
| Analog Input Ranges | Bipolar: ±12.5 V, ±10 V, ±6.25 V, ±5 V, ±2.5 V; Unipolar: 0 V to 12.5 V, 0 V to 10 V, 0 V to 5 V; Bipolar Differential: ±20 V, ±12.5 V, ±10 V, ±5 V | |
| Input Impedance | 1 MΩ minimum | |
| Analog Supply Voltage | 4.75 V to 5.25 V | V |
| Digital Supply Voltage | 1.71 V to 5.25 V | V |
| Operating Temperature | -40°C to +125°C | °C |
| Package | 64-Lead LQFP (10mm x 10mm) | |
| Data Interface | Parallel, Serial |
Key Features
- 18-bit SAR ADC with 1 MSPS on all channels
- Input buffer with 1 MΩ minimum analog input impedance
- Per channel selectable analog input ranges
- Analog input open circuit detection feature
- Self-diagnostics and monitoring features, including CRC error checking on read and write data and registers
- Flexible digital filter with oversampling ratio up to 256
- System gain, system offset, and system phase calibration per channel
- High bandwidth mode (220 kHz) and low bandwidth mode (25 kHz) selectable per channel
- 21 V input clamp protection and 6 kV ESD protection
- Pin to pin compatible with AD7606B, AD7608, and AD7609
Applications
- Power line monitoring
- Protective relays
- Multiphase motor control
- Instrumentation and control systems
- Data acquisition systems
Q & A
- What is the resolution of the AD7606C-18 ADC?
The AD7606C-18 is an 18-bit analog-to-digital converter.
- How many channels does the AD7606C-18 have?
The AD7606C-18 has eight channels.
- What are the supported input ranges for the AD7606C-18?
The AD7606C-18 supports bipolar single-ended, unipolar single-ended, and bipolar differential input ranges. Specific ranges include ±12.5 V, ±10 V, ±6.25 V, ±5 V, ±2.5 V for bipolar single-ended; 0 V to 12.5 V, 0 V to 10 V, 0 V to 5 V for unipolar single-ended; and ±20 V, ±12.5 V, ±10 V, ±5 V for bipolar differential inputs.[
- What is the sampling rate of the AD7606C-18?
The AD7606C-18 has a sampling rate of 1 MSPS on all channels.
- What is the operating temperature range of the AD7606C-18?
The AD7606C-18 operates from -40°C to +125°C.
- What package type is the AD7606C-18 available in?
The AD7606C-18 is available in a 64-Lead LQFP (10mm x 10mm) package.
- Does the AD7606C-18 have built-in input protection?
Yes, the AD7606C-18 has input clamp protection that tolerates voltages up to ±21 V and 6 kV ESD protection.[
- What are some of the advanced features available in software mode?
In software mode, the AD7606C-18 offers features such as per channel selectable analog input ranges, high bandwidth mode, additional oversampling options, system gain, offset, and phase calibration, and analog input open circuit detection.[
- Is the AD7606C-18 compatible with other ADC models from Analog Devices?
Yes, the AD7606C-18 is pin to pin compatible with the AD7606B, AD7608, and AD7609.[
- What kind of digital interface does the AD7606C-18 support?
The AD7606C-18 supports both parallel and serial digital interfaces.
