Overview

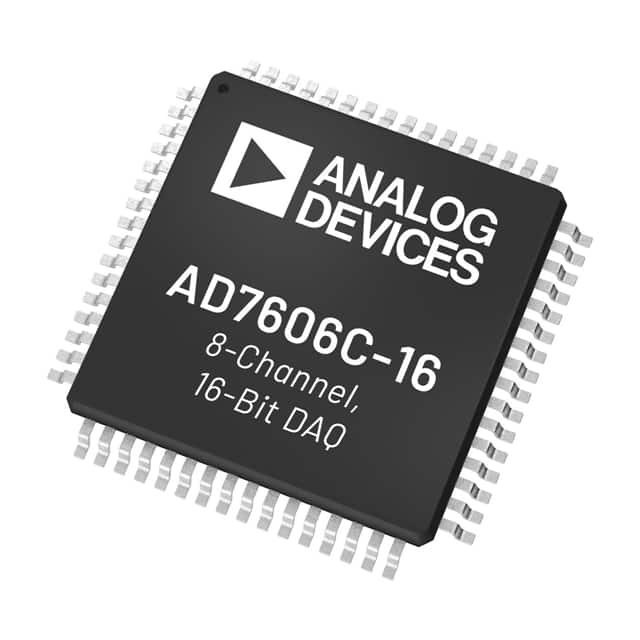

The AD7606C-16BSTZ-RL is a 16-bit, simultaneous sampling, analog-to-digital data acquisition system (DAS) produced by Analog Devices Inc. This component features eight channels, each equipped with analog input clamp protection, a programmable gain amplifier (PGA), a low-pass filter (LPF), and a 16-bit successive approximation register (SAR) analog-to-digital converter (ADC). It operates from a single 5 V supply and supports various input ranges, making it versatile for different applications. The AD7606C-16 also includes a flexible digital filter, a low drift 2.5 V precision reference, and a reference buffer to drive the ADC, along with flexible parallel and serial interfaces.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Resolution | 16 Bits | |
| Number of ADC Channels | 8 | |
| Sampling Rate | 1 MSPS (all channels) | |
| Analog Input Ranges | Bipolar single-ended: ±12.5 V, ±10 V, ±6.25 V, ±5 V, ±2.5 V Unipolar single-ended: 0 V to 12.5 V, 0 V to 10 V, 0 V to 5 V Bipolar differential: ±20 V, ±12.5 V, ±10 V, ±5 V | |
| Input Clamp Protection | ±21 V | |
| Analog Supply Voltage | 4.75 V to 5.25 V | V |
| Digital Interface | Parallel, SPI | |
| Operating Temperature | -40°C to +125°C | °C |
| Package | 64-Lead LQFP (10mm x 10mm) | |
| Differential Nonlinearity (DNL) | ±0.5 LSB | |
| Integral Nonlinearity (INL) | ±0.5 LSB, ±2 LSB (depending on input range) | |
| Signal to Noise Ratio (SNR) | 95 dB | dB |
Key Features
- Simultaneous sampling of all eight channels.
- Programmable gain amplifier (PGA) and low-pass filter (LPF) on each channel.
- Flexible digital filter to improve noise performance at lower throughput rates.
- High input impedance (1 MΩ minimum) and on-chip filtering, eliminating the need for external driver op amps.
- Low drift 2.5 V precision reference and reference buffer.
- Flexible parallel and serial interfaces.
- Single 5 V supply operation with no need for bipolar supplies.
- Advanced features available in software mode, including compatibility with AD7606 and AD7606B in hardware mode.
Applications
The AD7606C-16 is suitable for a variety of applications requiring high-precision and simultaneous sampling, such as:
- Industrial process control and automation.
- Medical devices and diagnostic equipment.
- Aerospace and defense systems.
- Automotive systems, including safety and control systems.
- Test and measurement equipment.
Q & A
- What is the resolution of the AD7606C-16 ADC?
The AD7606C-16 has a resolution of 16 bits.
- How many ADC channels does the AD7606C-16 have?
The AD7606C-16 has eight ADC channels.
- What are the input ranges supported by the AD7606C-16?
The AD7606C-16 supports bipolar single-ended ranges of ±12.5 V, ±10 V, ±6.25 V, ±5 V, and ±2.5 V; unipolar single-ended ranges of 0 V to 12.5 V, 0 V to 10 V, and 0 V to 5 V; and bipolar differential ranges of ±20 V, ±12.5 V, ±10 V, and ±5 V.
- What is the sampling rate of the AD7606C-16?
The AD7606C-16 can sample at a rate of 1 MSPS for all channels.
- What is the operating temperature range of the AD7606C-16?
The operating temperature range is -40°C to +125°C.
- What type of digital interfaces does the AD7606C-16 support?
The AD7606C-16 supports parallel and SPI digital interfaces.
- Does the AD7606C-16 require external driver op amps?
No, the AD7606C-16 does not require external driver op amps due to its high input impedance and on-chip filtering.
- What is the purpose of the flexible digital filter in the AD7606C-16?
The flexible digital filter can be used to improve noise performance at lower throughput rates.
- Is the AD7606C-16 compatible with other models in the AD7606 series?
Yes, the AD7606C-16 is fully compatible with the AD7606 and AD7606B in hardware mode.
- What is the package type of the AD7606C-16?
The AD7606C-16 comes in a 64-Lead LQFP (10mm x 10mm) package.
- What is the signal to noise ratio (SNR) of the AD7606C-16?
The SNR of the AD7606C-16 is 95 dB.
