Overview

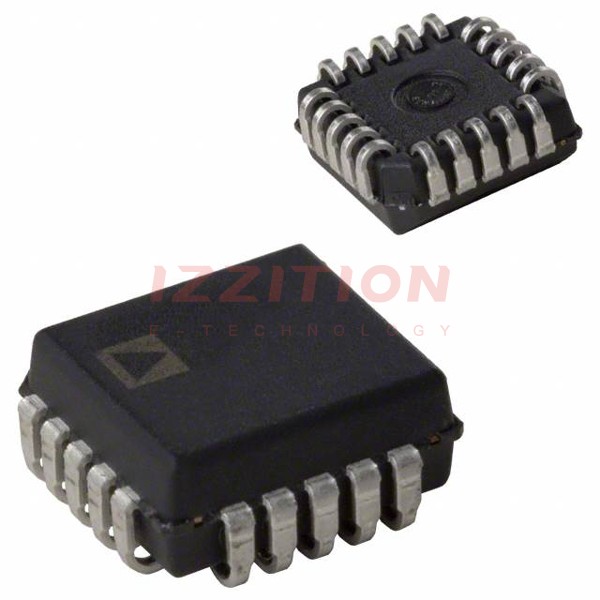

The AD7534JP-REEL is a high-performance digital-to-analog converter (DAC) manufactured by Analog Devices Inc. This component is part of the data acquisition family and is designed to provide precise analog output from digital input signals. The AD7534JP-REEL is particularly useful in applications requiring high accuracy and reliability in converting digital data into analog signals.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Number of Channels | Dual |
| Output Type | Current Output |
| Settling Time | 10 μs (typical) |
| Linearity Error | ±1 LSB (typical) |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | PDIP-20 |
| Supply Voltage | ±12 V to ±15 V |
Key Features
- High resolution of 12 bits for precise analog output.
- Dual DAC channels for simultaneous conversion of two digital inputs.
- Current output suitable for a wide range of applications.
- Fast settling time of 10 μs for real-time applications.
- Low linearity error for high accuracy.
- Wide operating temperature range from -40°C to +85°C.
- PDIP-20 package for easy integration into various systems.
Applications
The AD7534JP-REEL is versatile and can be used in a variety of applications, including:
- Industrial control systems where precise analog signals are required.
- Medical devices that need high accuracy in signal conversion.
- Aerospace and defense systems requiring reliable and accurate data conversion.
- Automotive systems for sensor signal processing.
- Test and measurement equipment for generating precise analog signals.
Q & A
- What is the resolution of the AD7534JP-REEL DAC?
The AD7534JP-REEL has a resolution of 12 bits. - How many DAC channels does the AD7534JP-REEL have?
The AD7534JP-REEL has dual DAC channels. - What is the typical settling time of the AD7534JP-REEL?
The typical settling time is 10 μs. - What is the operating temperature range of the AD7534JP-REEL?
The operating temperature range is from -40°C to +85°C. - What type of package does the AD7534JP-REEL come in?
The AD7534JP-REEL comes in a PDIP-20 package. - What is the supply voltage range for the AD7534JP-REEL?
The supply voltage range is ±12 V to ±15 V. - What are some common applications of the AD7534JP-REEL?
Common applications include industrial control systems, medical devices, aerospace and defense systems, automotive systems, and test and measurement equipment. - How accurate is the AD7534JP-REEL in terms of linearity error?
The linearity error is typically ±1 LSB. - Is the AD7534JP-REEL suitable for real-time applications?
Yes, it is suitable due to its fast settling time. - Where can I find more detailed specifications for the AD7534JP-REEL?
You can find detailed specifications on the official Analog Devices website or through distributors like Digi-Key and Heisener.
