Overview

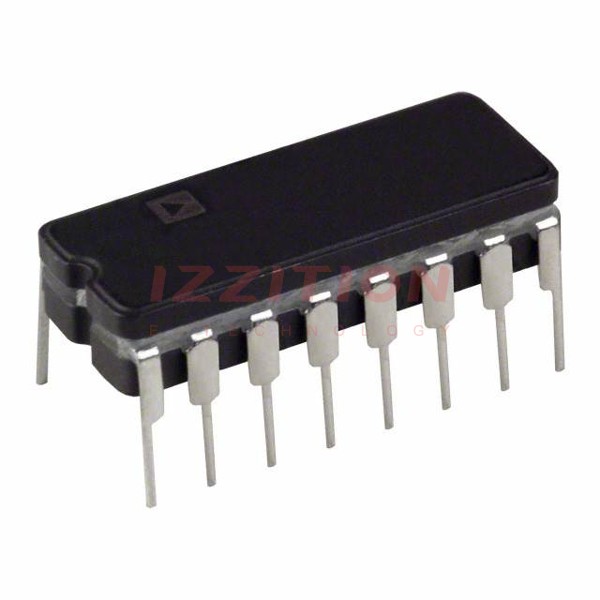

The AD7533BQ is a low-cost, 10-bit, 4-quadrant multiplying Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. It is produced using an advanced thin-film-on-monolithic CMOS wafer fabrication process. This DAC is pin and function equivalent to the industry-standard AD7520, making it a suitable lower-cost alternative for both existing AD7520 designs and new 10-bit DAC applications. The AD7533BQ offers flexibility in its ability to interface with TTL or CMOS logic, operate over a wide power range of 5 V to 15 V, and support reference inputs of either positive or negative polarity.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Resolution | 10-bit | |
| Linearity | ½ LSB, 1 LSB, or 2 LSB | |
| Gain Error | ±1% FS maximum | |
| Differential Nonlinearity (DNL) | ±1 LSB maximum | |
| Supply Voltage Range | 5 V to 15 V | V |
| Power Dissipation | 2 mA maximum (IDD) | mA |
| Output Current Settling Time | 600 ns maximum (to 0.05% FSR) | ns |
| Input Capacitance (CIN) | 8 pF maximum | pF |
| Operating Temperature Range | Dependent on package type (e.g., -55°C to +125°C for military grades) | °C |
Key Features
- Low cost and low power dissipation
- Full 4-quadrant multiplying DAC capability
- CMOS/TTL direct interface
- Latch-free operation (no Schottky protection required)
- Endpoint linearity
- Support for both positive and negative reference inputs
- Operates on 5 V to 15 V power supply
Applications
- Digitally controlled attenuators
- Programmable gain amplifiers
- Function generation
- Linear automatic gain controls
Q & A
- What is the resolution of the AD7533BQ DAC?
The AD7533BQ has a resolution of 10 bits. - What is the typical power supply range for the AD7533BQ?
The AD7533BQ operates on a power supply range of 5 V to 15 V. - Is the AD7533BQ compatible with TTL and CMOS logic?
Yes, the AD7533BQ is compatible with both TTL and CMOS logic. - What are the typical applications of the AD7533BQ?
The AD7533BQ is typically used in digitally controlled attenuators, programmable gain amplifiers, function generation, and linear automatic gain controls. - What is the settling time of the AD7533BQ's output current?
The output current settling time is 600 ns maximum to 0.05% of the full-scale range (FSR). - Does the AD7533BQ require Schottky protection?
No, the AD7533BQ is latch-free and does not require Schottky protection. - What is the gain error specification of the AD7533BQ?
The gain error is ±1% of the full scale (FS) maximum. - What is the differential nonlinearity (DNL) of the AD7533BQ?
The DNL is ±1 LSB maximum. - What is the input capacitance (CIN) of the AD7533BQ?
The input capacitance is 8 pF maximum. - Is the AD7533BQ a direct replacement for the AD7520?
Yes, the AD7533BQ is pin and function equivalent to the AD7520, making it a suitable replacement.
