AD7393ARU-REEL
  • Share:

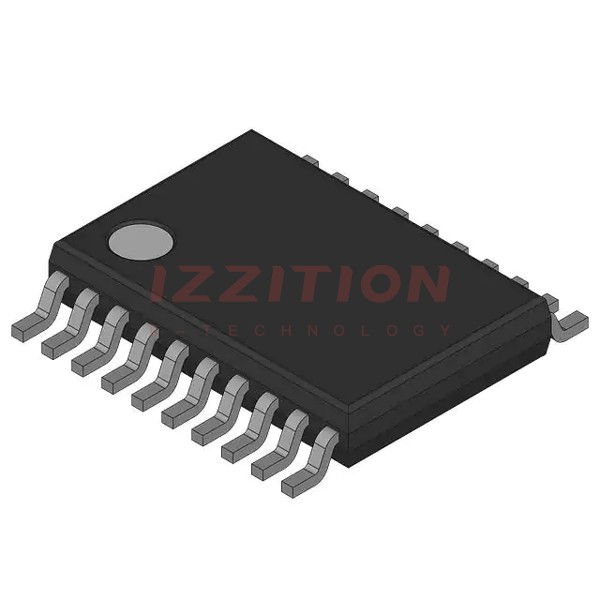

Analog Devices Inc. AD7393ARU-REEL

Manufacturer No:
AD7393ARU-REEL
Manufacturer:
Analog Devices Inc.
Package:
Bulk
Description:
DAC,PARALLEL, WORD INPUT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The AD7393ARU-REEL is a 12-bit digital-to-analog converter (DAC) produced by Analog Devices Inc. This component is designed for high precision and low power consumption, making it suitable for a variety of applications. The AD7393 operates from a single supply voltage ranging from 2.7V to 5.5V and is available in a 20-lead TSSOP package.

Key Specifications

Parameter Value Unit
Resolution 12 bits
Supply Voltage Range 2.7V to 5.5V V
Settling Time 70 µs (typical) µs
Output Slew Rate 0.05 V/µs (typical) V/µs
Power Consumption (No Load) 300 µW (maximum) µW
Package Type 20-lead TSSOP

Key Features

  • 12-bit resolution for high precision output.
  • Single supply operation from 2.7V to 5.5V.
  • Low power consumption, making it suitable for battery-powered applications.
  • Parallel word input loading for fast data transfer.
  • Settling time of 70 µs (typical) to full scale.
  • Rail-to-rail output capability.
  • Internal and external reference options.

Applications

  • Portable battery-powered instruments.
  • Digital gain and offset adjustment.
  • Programmable voltage and current sources.
  • Programmable attenuators.
  • Automotive and industrial control systems.

Q & A

  1. What is the resolution of the AD7393ARU-REEL DAC?

    The AD7393ARU-REEL has a 12-bit resolution.

  2. What is the supply voltage range for the AD7393ARU-REEL?

    The supply voltage range is from 2.7V to 5.5V.

  3. What is the typical settling time of the AD7393ARU-REEL?

    The typical settling time is 70 µs.

  4. What type of package does the AD7393ARU-REEL come in?

    The AD7393ARU-REEL comes in a 20-lead TSSOP package.

  5. Is the AD7393ARU-REEL suitable for battery-powered applications?

    Yes, it is suitable due to its low power consumption.

  6. Does the AD7393ARU-REEL support both internal and external references?

    Yes, it supports both internal and external reference options.

  7. What is the output slew rate of the AD7393ARU-REEL?

    The output slew rate is typically 0.05 V/µs.

  8. Can the AD7393ARU-REEL be used in automotive applications?

    Yes, it can be used in automotive and industrial control systems.

  9. How does the AD7393ARU-REEL handle data input?

    The AD7393ARU-REEL uses parallel word input loading for fast data transfer.

  10. What is the maximum power consumption of the AD7393ARU-REEL with no load?

    The maximum power consumption with no load is 300 µW.

Product Attributes

Number of Bits:12
Number of D/A Converters:1
Settling Time:70µs (Typ)
Output Type:Voltage - Unbuffered
Differential Output:No
Data Interface:Parallel
Reference Type:External
Voltage - Supply, Analog:2.7V ~ 5.5V
Voltage - Supply, Digital:2.7V ~ 5.5V
INL/DNL (LSB):±3, ±0.9
Architecture:R-2R
Operating Temperature:-40°C ~ 125°C
Package / Case:20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:20-TSSOP
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$5.08
143

Please send RFQ , we will respond immediately.
