Overview
The AD7228KR-REEL is an 8-bit, octal digital-to-analog converter (DAC) produced by Analog Devices Inc. This component is designed to provide high performance and reliability in various digital-to-analog conversion applications. It features a parallel interface and includes an on-chip output amplifier, making it suitable for a wide range of industrial and commercial uses.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 8 bits |
| Number of DACs | Octal (8 channels) |
| Interface Type | Parallel |
| Output Type | Voltage output with on-chip amplifier |

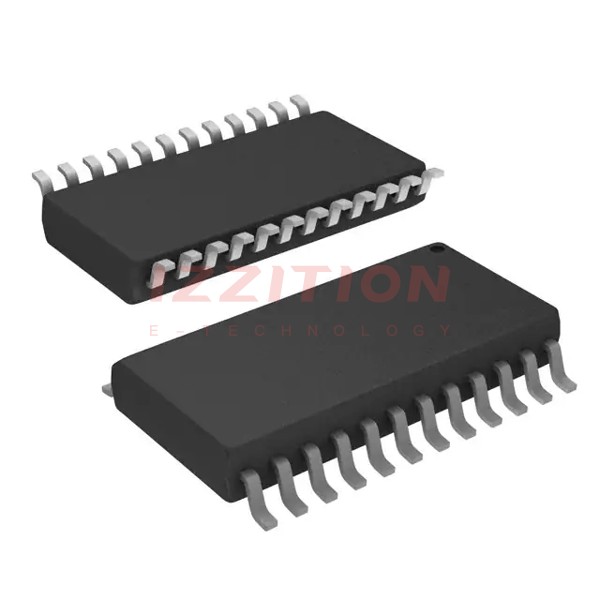

| Package Type | 24-SOIC (Small Outline Integrated Circuit) |
| Operating Temperature Range | -40°C to +85°C |
| Supply Voltage | +4.5V to +5.5V (analog), +4.5V to +5.5V (digital) |
| RoHS Compliance | Yes |
Key Features
- 8-bit resolution with octal (8-channel) DAC configuration
- Parallel interface for easy data input
- On-chip output amplifier for direct voltage output
- High accuracy and linearity
- Wide operating temperature range (-40°C to +85°C)
- Compact 24-SOIC package
- RoHS compliant for environmental sustainability
Applications
The AD7228KR-REEL is versatile and can be used in a variety of applications, including:
- Industrial control systems
- Medical devices
- Aerospace and defense systems
- Automotive systems
- Data acquisition and measurement systems
- Audio and video equipment
Q & A
- What is the resolution of the AD7228KR-REEL? The AD7228KR-REEL has an 8-bit resolution.
- How many DAC channels does the AD7228KR-REEL have? The AD7228KR-REEL has eight DAC channels (octal configuration).
- What type of interface does the AD7228KR-REEL use? The AD7228KR-REEL uses a parallel interface.
- Does the AD7228KR-REEL include an on-chip output amplifier? Yes, the AD7228KR-REEL includes an on-chip output amplifier.
- What is the package type of the AD7228KR-REEL? The AD7228KR-REEL comes in a 24-SOIC package.
- What is the operating temperature range of the AD7228KR-REEL? The operating temperature range is -40°C to +85°C.
- Is the AD7228KR-REEL RoHS compliant? Yes, the AD7228KR-REEL is RoHS compliant.
- What are the typical supply voltage ranges for the AD7228KR-REEL? The typical supply voltage ranges are +4.5V to +5.5V for both analog and digital supplies.
- In what types of applications is the AD7228KR-REEL commonly used? The AD7228KR-REEL is commonly used in industrial control systems, medical devices, aerospace and defense systems, automotive systems, data acquisition and measurement systems, and audio and video equipment.
- Where can I purchase the AD7228KR-REEL? The AD7228KR-REEL can be purchased from various electronic component distributors such as Digi-Key, Mouser, and Xecor.
