Overview

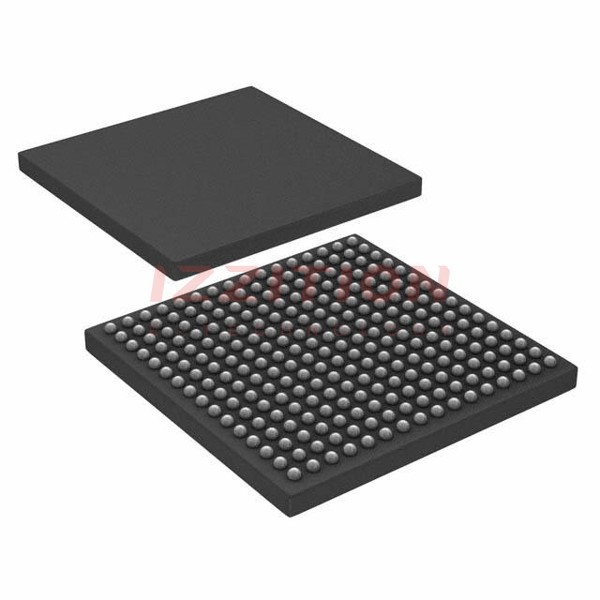

The AD6654CBCZ is a high-performance, 14-bit analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This device is designed for high-speed data acquisition and is particularly suited for applications requiring high resolution and fast conversion rates. The AD6654CBCZ features a pipelined architecture, which enables it to achieve a sampling rate of up to 92.16 million samples per second. It is packaged in a 256-ball CSPBGA (17x17 mm) package, making it compact and suitable for a variety of modern electronic systems.
Key Specifications
| Specification | Value |
|---|---|
| Number of Bits | 14 |
| Sampling Rate | Up to 92.16 MSPS |
| Input Type | Single-ended |
| Architecture | Pipelined |
| Package Type | 256-ball CSPBGA (17x17 mm) |
| Operating Temperature Range | -40°C to 85°C |
Key Features
- High-speed sampling rate of up to 92.16 million samples per second (MSPS)
- 14-bit resolution for high accuracy and precision
- Pipelined architecture for efficient and fast conversion
- Compact 256-ball CSPBGA package for space-efficient designs
- Wide operating temperature range from -40°C to 85°C
Applications
The AD6654CBCZ is suitable for a variety of high-speed data acquisition applications, including:
- Medical imaging and diagnostics
- Radar and communication systems
- Industrial automation and control systems
- Aerospace and defense systems
- High-speed data acquisition systems
Q & A
- What is the resolution of the AD6654CBCZ ADC? The AD6654CBCZ has a resolution of 14 bits.
- What is the maximum sampling rate of the AD6654CBCZ? The maximum sampling rate is up to 92.16 MSPS.
- What type of architecture does the AD6654CBCZ use? The AD6654CBCZ uses a pipelined architecture.
- What is the package type of the AD6654CBCZ? The AD6654CBCZ is packaged in a 256-ball CSPBGA (17x17 mm).
- What is the operating temperature range of the AD6654CBCZ? The operating temperature range is from -40°C to 85°C.
- What are some typical applications for the AD6654CBCZ? Typical applications include medical imaging, radar and communication systems, industrial automation, aerospace and defense systems, and high-speed data acquisition systems.
- Is the AD6654CBCZ suitable for high-speed data acquisition? Yes, the AD6654CBCZ is designed for high-speed data acquisition.
- Where can I find detailed specifications for the AD6654CBCZ? Detailed specifications can be found in the datasheet available on the Analog Devices Inc. website or through distributors like Digi-Key and Mouser.
- What is the input type of the AD6654CBCZ? The AD6654CBCZ has a single-ended input.
- Is the AD6654CBCZ available for immediate shipment? Yes, it is available for immediate shipment from various distributors.
