Overview
The AD6654BBCZ is a high-performance, 14-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is designed for high-speed data acquisition and is particularly suited for applications requiring high accuracy and low power consumption. The AD6654BBCZ features a pipelined architecture, which enables it to achieve high conversion rates while maintaining excellent linearity and dynamic performance.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 14 bits |
| Number of Inputs | 1 |
| Conversion Rate | Up to 250 MSPS |
| Supply Voltage | 1.8V |

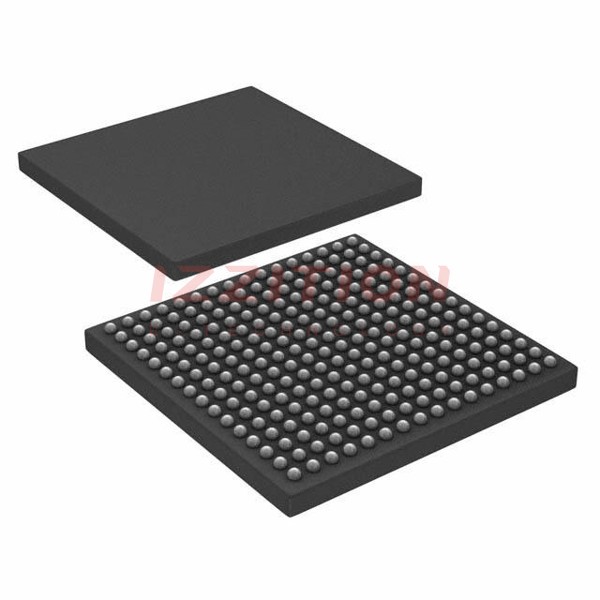

| Package Type | 256-CSPBGA (17x17) |
| Operating Temperature Range | -40°C to 85°C |
| RoHS Status | ROHS3 Compliant |
Key Features
- Pipelined architecture for high-speed conversions up to 250 MSPS
- High dynamic performance with low noise and distortion
- Low power consumption, making it suitable for battery-powered applications
- Single 1.8V supply voltage
- Compact 256-CSPBGA package
- ROHS3 compliant, ensuring environmental sustainability
Applications
- High-speed data acquisition systems
- Medical imaging and diagnostics
- Radar and communication systems
- Industrial instrumentation and control
- Aerospace and defense applications
Q & A
- What is the resolution of the AD6654BBCZ ADC?
The AD6654BBCZ has a resolution of 14 bits. - How many inputs does the AD6654BBCZ have?
The AD6654BBCZ has one input. - What is the maximum conversion rate of the AD6654BBCZ?
The maximum conversion rate is up to 250 MSPS. - What is the supply voltage for the AD6654BBCZ?
The supply voltage is 1.8V. - What is the package type of the AD6654BBCZ?
The package type is 256-CSPBGA (17x17). - Is the AD6654BBCZ ROHS compliant?
Yes, the AD6654BBCZ is ROHS3 compliant. - What are some typical applications for the AD6654BBCZ?
Typical applications include high-speed data acquisition, medical imaging, radar and communication systems, industrial instrumentation, and aerospace and defense. - What is the operating temperature range for the AD6654BBCZ?
The operating temperature range is -40°C to 85°C. - What architecture does the AD6654BBCZ use?
The AD6654BBCZ uses a pipelined architecture. - Is the AD6654BBCZ suitable for battery-powered applications?
Yes, due to its low power consumption, it is suitable for battery-powered applications.
