Overview

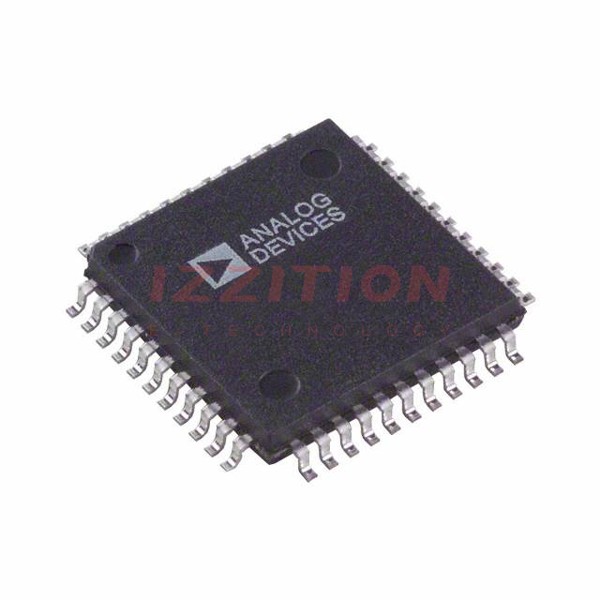

The AD6600AST, produced by Analog Devices Inc., is a high-performance, dual-channel, gain-ranging analog-to-digital converter (ADC) with integrated Received Signal Strength Indicator (RSSI) functionality. This mixed-signal receiver chip is designed for high-speed data acquisition in complex signal processing applications. It features two input channels, each equipped with 1 GHz input amplifiers and 30 dB of automatic gain-ranging circuitry. The device samples signals at analog input frequencies up to 250 MHz and includes a 450 MHz track-and-hold stage followed by an 11-bit, 20 MSPS ADC. The AD6600AST also provides digital RSSI outputs, an A/B channel indicator, and a 2× clock output, making it highly versatile for various communication and signal processing tasks.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Number of Bits | 11 | - | - | - |
| Sampling Rate | - | 20 | - | MSPS |
| Number of Inputs | 2 | - | - | - |
| Input Type | Differential | - | - | - |
| Analog Input Voltage Range | - | - | 2.86 V p-p (at 250 MHz) | V p-p |
| Analog Input Impedance | - | 161-j67 Ω (at 250 MHz) | - | Ω |
| Power Supply Voltage (Analog) | - | 5 V | - | V |
| Power Supply Voltage (Digital) | 3 V | - | 5.25 V | V |
| Operating Temperature Range | -40°C | - | 85°C | °C |
| Package Type | 44-LQFP | - | - | - |
Key Features
- High-Speed Data Acquisition: The AD6600AST features an 11-bit resolution and a sampling rate of 20 MSPS, making it ideal for fast, real-time applications.
- Dual Differential Inputs: Each channel has differential inputs, enhancing noise immunity and providing increased accuracy.
- Pipelined Architecture: This architecture enables high-speed and reliable data processing, ensuring high throughput.
- Internal Reference Voltage: Reduces the need for external components, simplifying the design process.
- Wide Operating Temperature Range: Operational from -40°C to 85°C, making it suitable for industrial environments.
- Flexible Supply Voltages: Supports both 3.3 V and 5 V digital supply voltages, adding design versatility.
- Compact Packaging: The 44-LQFP package is efficient for PCB design space and compatible with standard surface mount technology (SMT) processes.
Applications
- Telecommunications: Suitable for use in communications receivers, PCS/Cellular base stations, GSM, CDMA, TDMA, and wireless local loop systems.
- Medical Imaging Systems: Used in medical imaging applications requiring high-speed data acquisition and precise signal processing.
- Digital Oscilloscopes: Ideal for high-speed data acquisition in digital oscilloscope applications.
- Radar and Satellite Systems: Utilized in radar and satellite systems due to its high-speed and reliable data processing capabilities.
- Instrumentation and Control Systems: Applied in various instrumentation and control systems requiring precise and high-speed signal processing.
Q & A
- What is the sampling rate of the AD6600AST?
The AD6600AST has a sampling rate of 20 MSPS.
- How many bits of resolution does the AD6600AST have?
The AD6600AST has an 11-bit resolution.
- What type of inputs does the AD6600AST support?
The AD6600AST supports dual differential inputs.
- What is the operating temperature range of the AD6600AST?
The AD6600AST operates over a temperature range of -40°C to 85°C.
- What is the package type of the AD6600AST?
The AD6600AST is packaged in a 44-LQFP package.
- Does the AD6600AST have an internal reference voltage?
Yes, the AD6600AST includes an internal reference voltage.
- What are the typical applications of the AD6600AST?
The AD6600AST is typically used in telecommunications, medical imaging systems, digital oscilloscopes, radar and satellite systems, and instrumentation and control systems.
- What is the power supply voltage range for the digital part of the AD6600AST?
The digital supply voltage range is from 3 V to 5.25 V.
- Is the AD6600AST compatible with various microcontrollers and digital processors?
Yes, the AD6600AST is compatible with various microcontrollers and digital processors through its parallel interface.
- What is the significance of the pipelined architecture in the AD6600AST?
The pipelined architecture enables high-speed and reliable data processing, ensuring high throughput.
