Overview

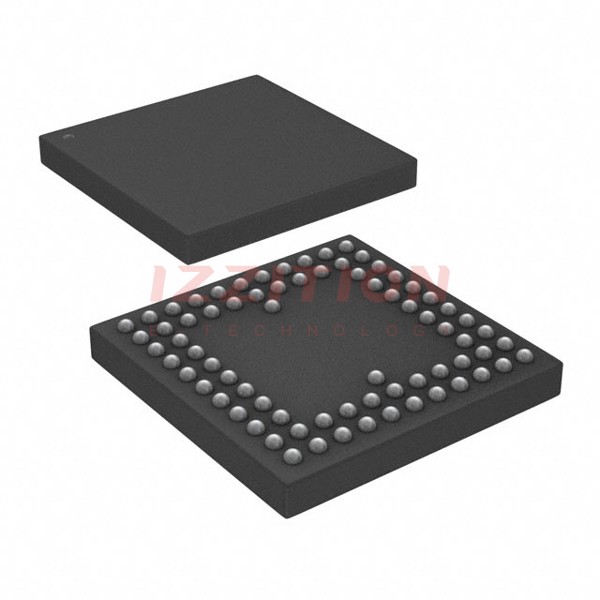

The AD5532BBCZ-1 is a 32-channel, 14-bit, bipolar, voltage-output Digital-to-Analog Converter (DAC) produced by Analog Devices Inc. This device integrates 32 DACs and an Analog-to-Digital Converter (ADC) for Infinite Sample-and-Hold (ISHA) mode within a single package. It is designed to provide high precision and reliability, making it suitable for a variety of applications requiring multiple analog output channels.
The AD5532BBCZ-1 operates with multiple power supply voltages: AVCC = +5 V ± 5%, DVCC = +2.7 V to +5.25 V, VSS = –4.75 V to –16.5 V, and VDD = +8 V to +16.5 V. It also requires a stable 3 V reference on REF_IN and an offset voltage on OFFS_IN. The device is available in a 74-lead CSPBGA package with a body size of 12 mm x 12 mm.
Key Specifications
| Parameter | Value | Conditions/Comments |
|---|---|---|
| Number of Channels | 32 | |
| Resolution | 14-bit | |
| Output Type | Voltage, Bipolar | |
| Power Supply Voltages | AVCC: +5 V ± 5%, DVCC: +2.7 V to +5.25 V, VSS: –4.75 V to –16.5 V, VDD: +8 V to +16.5 V | |
| Reference Voltage | Stable 3 V on REF_IN | |
| Offset Voltage | On OFFS_IN | |
| Output Voltage Range | VSS + 2 V to VDD – 2 V | |
| Output Voltage Settling Time | 22 μs max (500 pF, 5 kΩ load, full-scale change) | |
| Integral Nonlinearity (INL) | ±0.39 LSB | |
| Operating Temperature Range | Industrial: –40°C to +85°C | |
| Package | 74-lead CSPBGA (12 mm x 12 mm) |
Key Features
- High Channel Count: 32 independent DAC channels in a single package.
- Precision and Accuracy: 14-bit resolution with guaranteed monotonicity and low integral nonlinearity.
- Flexible Power Supply: Operates with multiple power supply voltages, including AVCC, DVCC, VSS, and VDD.
- Infinite Sample-and-Hold Mode: Supports ISHA mode with a total unadjusted error of ±2.5 mV achieved through laser-trimming on-chip resistors.
- Low Noise and Crosstalk: Low digital-to-analog glitch impulse, digital crosstalk, and analog crosstalk.
- Multiple Interface Options: Supports parallel, SPI, and serial interfaces for flexible communication.
Applications
- Industrial Automation: Suitable for control systems requiring multiple analog output channels.
- Medical Devices: Used in medical equipment that demands high precision and reliability.
- Aerospace and Defense: Applicable in systems requiring robust and accurate analog output.
- Test and Measurement Equipment: Ideal for instruments that need multiple precise analog outputs.
- Automotive Systems: Can be used in automotive control systems that require high accuracy and reliability.
Q & A
- What is the resolution of the AD5532BBCZ-1 DAC?
The AD5532BBCZ-1 has a 14-bit resolution.
- How many DAC channels does the AD5532BBCZ-1 have?
The device has 32 independent DAC channels.
- What are the power supply voltage ranges for the AD5532BBCZ-1?
The device operates with AVCC = +5 V ± 5%, DVCC = +2.7 V to +5.25 V, VSS = –4.75 V to –16.5 V, and VDD = +8 V to +16.5 V.
- What is the output voltage range of the AD5532BBCZ-1?
The output voltage range is restricted from VSS + 2 V to VDD – 2 V.
- Does the AD5532BBCZ-1 support infinite sample-and-hold mode?
Yes, it supports ISHA mode with a total unadjusted error of ±2.5 mV.
- What is the operating temperature range of the AD5532BBCZ-1?
The operating temperature range is –40°C to +85°C for the industrial version.
- What package type is the AD5532BBCZ-1 available in?
The device is available in a 74-lead CSPBGA package with a body size of 12 mm x 12 mm.
- What are the key interfaces supported by the AD5532BBCZ-1?
The device supports parallel, SPI, and serial interfaces.
- What is the typical output voltage settling time for the AD5532BBCZ-1?
The typical output voltage settling time is 22 μs max for a 500 pF, 5 kΩ load, full-scale change.
- Is the AD5532BBCZ-1 guaranteed to be monotonic?
Yes, the device is guaranteed to be monotonic.
