Overview
The AD1941YSTZ-29, designed by Analog Devices Inc., is a high-performance audio A-to-D converter that excels in various data acquisition and processing applications. This component is part of the SigmaDSP® series and is known for its advanced audio processing capabilities. It is widely used in industrial control systems, medical devices, consumer electronics, and professional audio equipment due to its high-quality audio signal conversion and robust features.
Key Specifications
| Specification | Value |
|---|---|
| Series | SigmaDSP® |

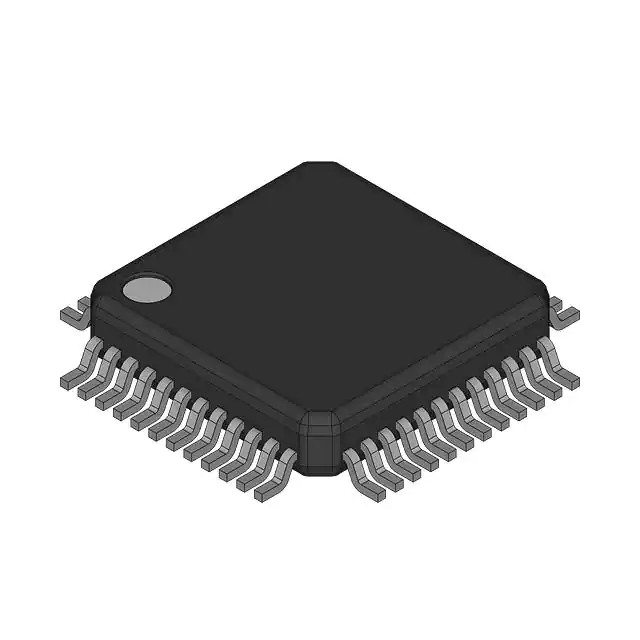

| Package | 48-LQFP (7x7) |
| Product Status | Active |
| Type | Audio |
| Number of Channels | 4 |
| Resolution (Bits) | 28 bits |
| Sampling Rate (per second) | 192k samples per second |
| Data Interface | I²C |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.25V ~ 2.75V |
| Operating Temperature | -40°C ~ 125°C |
| MOUNTING TYPE | Surface Mount |
Key Features
- 28-bit resolution for high-precision audio conversion
- Sampling rate up to 192k samples per second
- Four input channels for multi-channel audio processing
- I²C interface for easy communication and control
- Single-supply operation with a voltage range of 2.25V to 2.75V
- Operating temperature range of -40°C to 125°C, ensuring reliability in various environments
- Surface mount packaging (48-LQFP) for easy integration into circuit boards
Applications
- Wireless Communication: Used in base stations and communication infrastructure for signal processing, modulation, and demodulation.
- Professional Audio Equipment: Utilized in mixers, amplifiers, audio interfaces, and digital signal processors for high-quality audio signal conversion.
- Power Management: Power converters and inverters for precise control and monitoring of electrical signals.
- Renewable Energy Systems: Solar inverters, wind turbine controllers, and energy storage systems for signal processing and control.
- Robotics Control: Applied in robotics for precise control of servo motors and other actuators.
- Industrial Control Systems: Used in various industrial applications requiring high-quality audio processing.
- Medical Devices: Employed in medical equipment that demands precise and reliable audio signal conversion.
- Consumer Electronics: Integrated into consumer electronics such as audio processing systems and conferencing equipment.
Q & A
- Q: What is the resolution of the AD1941YSTZ-29?
A: The AD1941YSTZ-29 has a resolution of 28 bits.
- Q: What is the maximum sampling rate of the AD1941YSTZ-29?
A: The maximum sampling rate is 192k samples per second.
- Q: How many input channels does the AD1941YSTZ-29 have?
A: It has four input channels.
- Q: What type of data interface does the AD1941YSTZ-29 use?
A: It uses an I²C data interface.
- Q: What is the voltage supply range for the AD1941YSTZ-29?
A: The voltage supply range is 2.25V to 2.75V.
- Q: What is the operating temperature range of the AD1941YSTZ-29?
A: The operating temperature range is -40°C to 125°C.
- Q: What type of packaging does the AD1941YSTZ-29 use?
A: It uses a 48-LQFP (7x7) surface mount package.
- Q: Is the AD1941YSTZ-29 RoHS compliant?
A: No, the AD1941YSTZ-29 is not RoHS compliant.
- Q: What are some common applications of the AD1941YSTZ-29?
A: Common applications include professional audio equipment, power management, renewable energy systems, robotics control, industrial control systems, medical devices, and consumer electronics.
- Q: What is the process for returning or replacing the AD1941YSTZ-29 if it is defective?
A: Returns or replacements are accepted if the product has a deficiency in quantity, wrong items were delivered, or there are apparent external defects. The defect must be reported within 90 days, and the product must be returned in its original packaging and unused condition unless defective.
