Overview
The AD1876JN is a 16-bit, 100 kSPS sampling analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed for high-precision data acquisition and is widely used in various applications requiring accurate analog-to-digital conversion. The AD1876JN is known for its high resolution and fast sampling rate, making it suitable for demanding environments.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 16 bits |
| Sampling Rate | 100 kSPS |

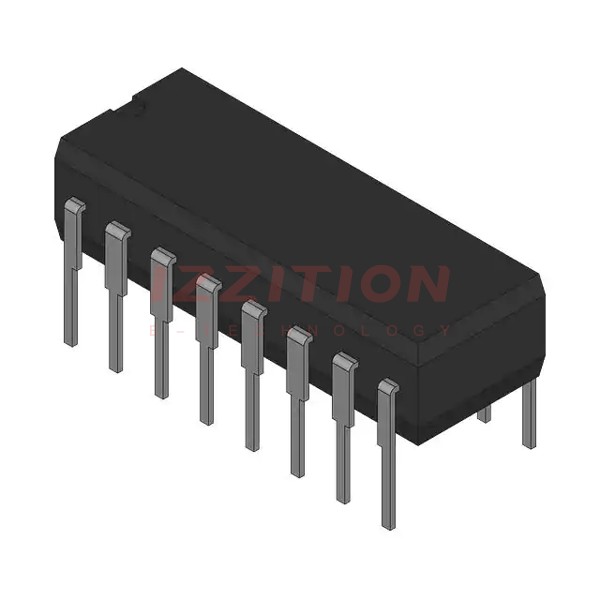

| Package Type | DIP-16 |
| Packing Method | Tube |
| Interface Type | Parallel |
| Operating Temperature Range | -55 °C to 125 °C |
| Operating Supply Voltage | ±10.8 V to ±13.2 V |
| Mounting Style | Through Hole |
Key Features
- High resolution of 16 bits for precise analog-to-digital conversion.
- Fast sampling rate of 100 kSPS, suitable for real-time data acquisition.
- Parallel interface for efficient data transfer.
- Wide operating temperature range from -55 °C to 125 °C, making it robust for various environments.
- Through-hole mounting style for easy integration into existing systems.
Applications
The AD1876JN is versatile and can be used in a variety of applications, including:
- Data acquisition systems requiring high precision and speed.
- Industrial control systems where accurate analog-to-digital conversion is crucial.
- Medical devices that need reliable and precise data conversion.
- Aerospace and defense applications where the component's wide operating temperature range is beneficial.
- Automotive systems that require robust and high-performance ADCs.
Q & A
- What is the resolution of the AD1876JN ADC?
The AD1876JN has a resolution of 16 bits. - What is the sampling rate of the AD1876JN?
The sampling rate is 100 kSPS. - What is the package type of the AD1876JN?
The package type is DIP-16. - What is the operating temperature range of the AD1876JN?
The operating temperature range is from -55 °C to 125 °C. - What is the interface type of the AD1876JN?
The interface type is parallel. - What is the mounting style of the AD1876JN?
The mounting style is through-hole. - What is the typical application of the AD1876JN?
Typical applications include data acquisition systems, industrial control systems, medical devices, aerospace, and automotive systems. - What is the operating supply voltage range of the AD1876JN?
The operating supply voltage range is ±10.8 V to ±13.2 V. - How is the AD1876JN typically packaged?
The AD1876JN is typically packaged in tubes. - Is the AD1876JN suitable for high-temperature environments?
Yes, the AD1876JN is suitable for high-temperature environments with an operating temperature range of -55 °C to 125 °C.
