Overview
The AD1671KP is a high-performance 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed for applications requiring high-speed and high-accuracy analog-to-digital conversion. The AD1671KP operates on a dual supply voltage of ±5V and features a flash conversion method, making it suitable for various signal processing tasks.
Key Specifications
| Parameter | Value |
|---|---|
| Base Part Number | AD1671 |

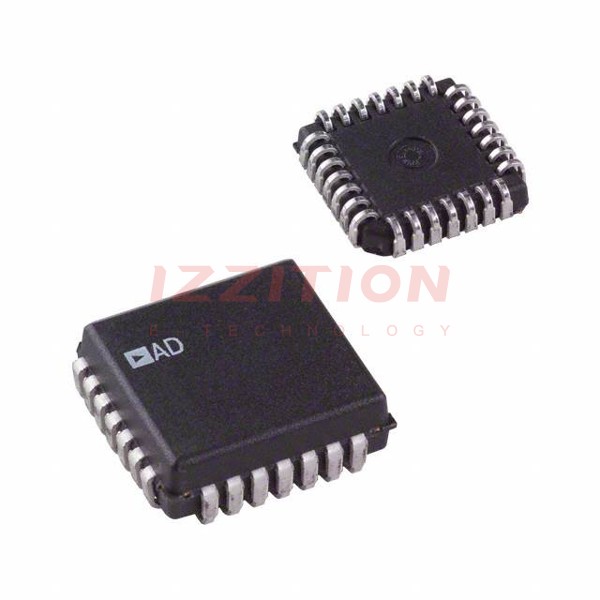

| Package | 28-LCC (J-Lead) |
| Pin Count | 28 |
| Converter Type | ADC, Flash Method |
| Supply Type | Dual |
| Supply Voltage | ±5V |
| Number of Analog In Channels | 1 |
| Resolution | 12-bit |
| Sampling Rate | 125 MSPS |
| Analog Input Voltage-Max | Not specified in provided sources, but typically limited by supply voltage |
| Accuracy | ±2 LSB (0°C to +70°C) |
Key Features
- High-speed conversion: The AD1671KP operates at a sampling rate of 125 MSPS, making it suitable for high-speed data acquisition and signal processing applications.
- Dual supply voltage: The component uses ±5V supply voltages, allowing for the processing of bipolar signals and enhancing its functionality in various applications.
- Flash conversion method: This method ensures fast and accurate conversion of analog signals to digital format.
- High accuracy: The AD1671KP has an accuracy of ±2 LSB over the temperature range of 0°C to +70°C.
Applications
The AD1671KP is versatile and can be used in a variety of applications, including:
- High-speed data acquisition systems
- Signal processing in industrial and instrumentation settings
- Military and aerospace applications where high accuracy and speed are critical
- Medical imaging and diagnostic equipment
- Telecommunications and communication systems requiring fast and accurate signal conversion
Q & A
- What is the resolution of the AD1671KP?
The AD1671KP has a resolution of 12 bits. - What is the sampling rate of the AD1671KP?
The sampling rate of the AD1671KP is 125 MSPS. - What is the supply voltage for the AD1671KP?
The AD1671KP operates on a dual supply voltage of ±5V. - What is the conversion method used by the AD1671KP?
The AD1671KP uses the flash conversion method. - How accurate is the AD1671KP?
The AD1671KP has an accuracy of ±2 LSB over the temperature range of 0°C to +70°C. - What is the package type of the AD1671KP?
The AD1671KP comes in a 28-LCC (J-Lead) package. - How many analog input channels does the AD1671KP have?
The AD1671KP has one analog input channel. - What are some common applications of the AD1671KP?
The AD1671KP is used in high-speed data acquisition, industrial and instrumentation settings, military and aerospace applications, medical imaging, and telecommunications. - What is the maximum operating temperature for the AD1671KP?
The maximum operating temperature for the AD1671KP is +70°C. - Where can I find detailed specifications for the AD1671KP?
Detailed specifications can be found in the datasheet available on websites such as Digi-Key, Mouser, and the official Analog Devices website.
