Overview
The AD1671JQ is a high-performance, 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This monolithic ADC operates at a sampling rate of 1.25 MSPS, making it suitable for a variety of high-speed data acquisition applications. The AD1671JQ is known for its precision, reliability, and compact design, making it a popular choice in industries requiring accurate and rapid analog-to-digital conversion.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 12 bits |
| Sampling Rate | 1.25 MSPS |
| Input Voltage Range | 0 to 5V |
| Power Supply | Single 5V supply |

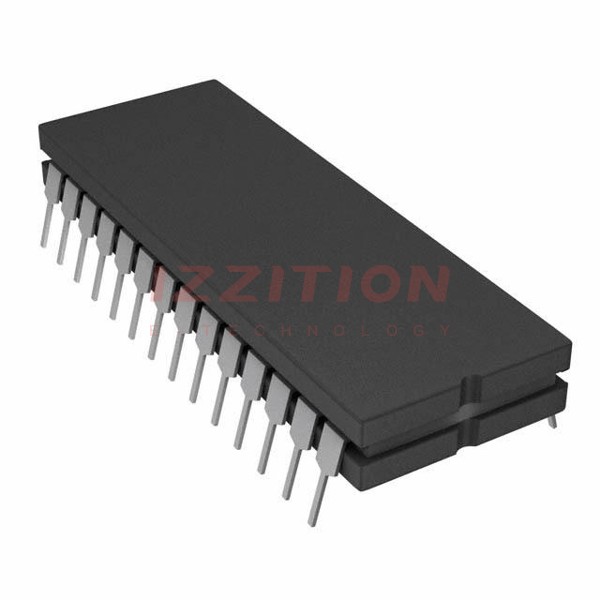

| Package Type | 28-CDIP (0.600, 15.24mm) |
| Operating Temperature Range | -40°C to +85°C |
Key Features
- High-speed sampling rate of 1.25 MSPS
- 12-bit resolution for high precision
- Single 5V power supply for simplicity and efficiency
- Compact 28-CDIP package for space-saving designs
- Wide operating temperature range from -40°C to +85°C
- Monolithic design for reliability and stability
Applications
The AD1671JQ is versatile and can be used in various applications, including:
- High-speed data acquisition systems
- Medical imaging and diagnostic equipment
- Aerospace and defense systems
- Industrial control and automation
- Test and measurement instruments
Q & A
- What is the resolution of the AD1671JQ ADC?
The AD1671JQ has a resolution of 12 bits. - What is the maximum sampling rate of the AD1671JQ?
The maximum sampling rate is 1.25 MSPS. - What is the input voltage range of the AD1671JQ?
The input voltage range is 0 to 5V. - What type of power supply does the AD1671JQ require?
The AD1671JQ requires a single 5V power supply. - What is the package type of the AD1671JQ?
The package type is 28-CDIP (0.600, 15.24mm). - What is the operating temperature range of the AD1671JQ?
The operating temperature range is from -40°C to +85°C. - Is the AD1671JQ suitable for high-speed applications?
Yes, the AD1671JQ is designed for high-speed applications with its 1.25 MSPS sampling rate. - Can the AD1671JQ be used in medical imaging equipment?
Yes, the AD1671JQ can be used in medical imaging and diagnostic equipment due to its high precision and reliability. - Is the AD1671JQ available in different package types?
No, the AD1671JQ is primarily available in the 28-CDIP package. - Where can I find detailed specifications for the AD1671JQ?
Detailed specifications can be found in the datasheet available on the Analog Devices website or through distributors like Digi-Key and Mouser Electronics.
