Overview

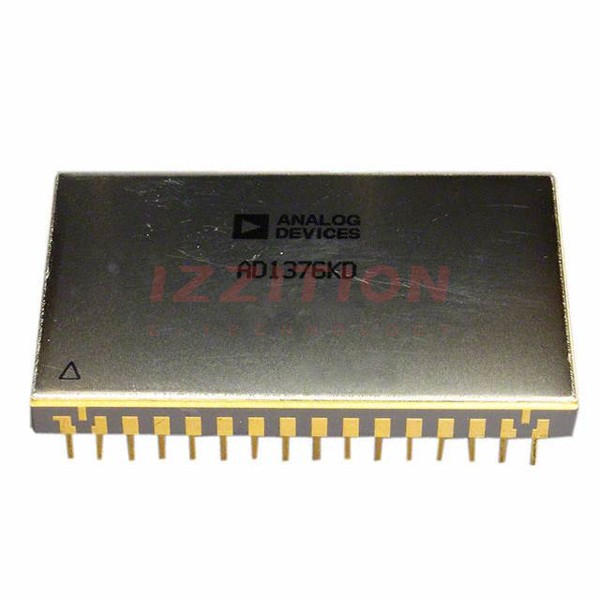

The AD1376KD, produced by Analog Devices Inc., is a high-resolution 16-bit analog-to-digital converter (ADC) designed for applications requiring moderate speed and high accuracy. This component integrates an internal reference, clock, and laser-trimmed thin-film resistors, making it suitable for a variety of high-resolution applications. The AD1376KD is packaged in a compact 32-lead, ceramic seam-sealed (hermetic), dual in-line package (DIP) and operates over a commercial temperature range of 0°C to 70°C.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Bits | 16 |
| Sampling Rate | 0.065 MHz |
| Polarity | Bipolar, Unipolar |
| Interface | Parallel, Serial |
| Number of Converters | 1 |
| Min Dual Supply Voltage | ±14.5 V |
| Typical Dual Supply Voltage | ±15 V |
| Max Dual Supply Voltage | ±15.5 V |
| Digital Supply Voltage | 4.75 V to 5.25 V |
| Conversion Time (16 Bits) | 15.5 µs to 17 µs |
| Power Consumption | 600 mW to 800 mW |
| Package | 32-CDIP (0.900, 22.86mm) |
| Operating Temperature | 0°C to 70°C |
Key Features
- Complete 16-bit converters with internal reference and clock.
- ±0.003% maximum nonlinearity and no missing codes to 14 bits over temperature.
- Fast conversion times: 17 µs for 16 bits.
- Short cycle capability and adjustable clock rate.
- Parallel outputs and TTL-compatible digital inputs and outputs.
- Low power consumption: typical 645 mW.
- Industry-standard pinout.
- Laser-trimmed thin-film resistors for high accuracy and stability.
Applications
The AD1376KD is ideal for high-resolution applications requiring moderate speed and high accuracy. These include:
- Industrial control systems.
- Medical devices.
- Aerospace and defense systems.
- High-precision measurement instruments.
- Data acquisition systems.
Q & A
- What is the resolution of the AD1376KD?
The AD1376KD is a 16-bit analog-to-digital converter. - What is the typical conversion time for 16 bits?
The typical conversion time for 16 bits is 17 µs. - What are the input voltage ranges for the AD1376KD?
The input voltage ranges include bipolar inputs of ±2.5 V, ±5 V, and ±10 V, and unipolar inputs of 0 V to +5 V, 0 V to +10 V, and 0 V to +20 V. - What is the power consumption of the AD1376KD?
The power consumption is typically between 600 mW and 800 mW. - What is the operating temperature range of the AD1376KD?
The operating temperature range is 0°C to 70°C. - What type of package does the AD1376KD come in?
The AD1376KD is packaged in a 32-lead, ceramic seam-sealed (hermetic), dual in-line package (DIP). - Is the AD1376KD compatible with TTL digital inputs and outputs?
Yes, the AD1376KD has TTL-compatible digital inputs and outputs. - Does the AD1376KD have an internal reference and clock?
Yes, the AD1376KD includes an internal reference and clock. - What is the maximum nonlinearity of the AD1376KD?
The maximum nonlinearity is ±0.003%. - Are there any missing codes in the AD1376KD's output?
No, there are no missing codes to 14 bits over temperature.
