Overview

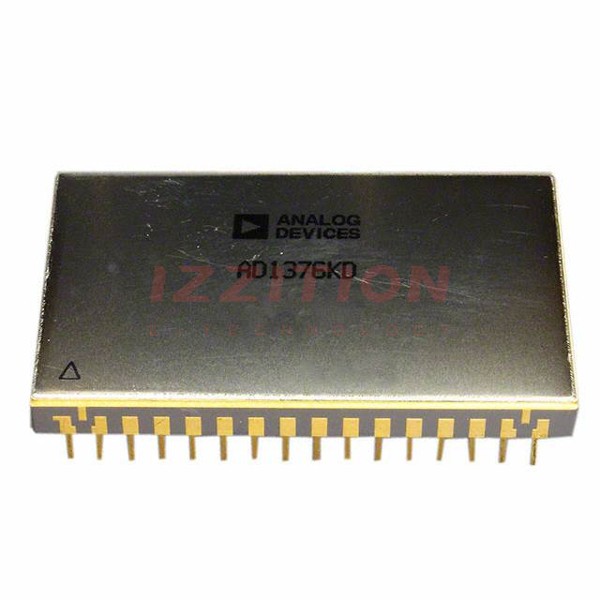

The AD1376JD is a high-resolution, 16-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed for applications requiring moderate speed and high accuracy or stability over commercial temperature ranges. The AD1376JD features an internal reference, clock, and laser-trimmed thin-film resistors, making it suitable for a variety of high-resolution applications.
Key Specifications
| Parameter | Minimum | Typical | Maximum |
|---|---|---|---|
| Resolution | 16 bits | - | - |
| Conversion Time (16 bits) | 15.5 µs | 17 µs | - |
| Analog Input Ranges | ±2.5 V, ±5 V, ±10 V (bipolar); 0 V to +5 V, 0 V to +10 V, 0 V to +20 V (unipolar) | - | - |
| Power Supply | +14.5 V to +15.5 V (analog); +4.75 V to +5.25 V (digital) | - | - |
| Power Consumption | - | 645 mW | - |
| Operating Temperature Range | 0°C to 70°C | - | - |
| Package Type | 32-lead, ceramic seam-sealed (hermetic), dual in-line package (DIP) | - | - |
| Interface Type | Parallel | - | - |
Key Features
- Complete 16-bit converters with internal reference and clock.
- ±0.003% maximum nonlinearity and no missing codes to 14 bits over temperature.
- Fast conversion times: 17 µs for 16 bits.
- Short cycle capability and adjustable clock rate.
- Parallel outputs and TTL-compatible digital inputs and outputs.
- Low power consumption: 645 mW typical.
- Industry-standard pinout.
Applications
The AD1376JD is ideal for high-resolution applications requiring moderate speed and high accuracy or stability. These include but are not limited to:
- Industrial control systems.
- Medical devices.
- Aerospace and defense systems.
- High-precision measurement instruments.
Q & A
- What is the resolution of the AD1376JD?
The AD1376JD has a resolution of 16 bits. - What are the typical conversion times for the AD1376JD?
The typical conversion time for 16 bits is 17 µs. - What are the available analog input ranges for the AD1376JD?
The available analog input ranges are ±2.5 V, ±5 V, ±10 V (bipolar) and 0 V to +5 V, 0 V to +10 V, 0 V to +20 V (unipolar). - What is the power consumption of the AD1376JD?
The typical power consumption is 645 mW. - What is the operating temperature range of the AD1376JD?
The operating temperature range is 0°C to 70°C. - What type of package does the AD1376JD come in?
The AD1376JD comes in a 32-lead, ceramic seam-sealed (hermetic), dual in-line package (DIP). - What type of interface does the AD1376JD use?
The AD1376JD uses a parallel interface. - Are the digital inputs and outputs of the AD1376JD TTL-compatible?
Yes, the digital inputs and outputs are TTL-compatible. - Does the AD1376JD have an internal reference and clock?
Yes, the AD1376JD features an internal reference and clock. - What is the maximum nonlinearity of the AD1376JD?
The maximum nonlinearity is ±0.003%.
