Overview
The 5962-9317901MLA is a high-performance Analog to Digital Converter (ADC) produced by Analog Devices Inc. This component is designed to convert analog signals into digital signals, making it a crucial element in various electronic systems. It is particularly noted for its compliance with military standards, ensuring reliability and durability in demanding environments.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12-bit |

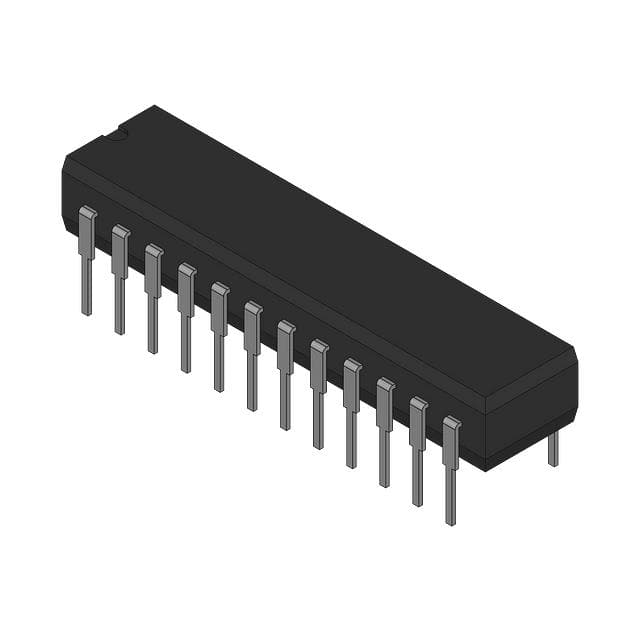

| Package Type | 24-CERDIP |
| Operating Temperature | -55°C to 125°C |
| Supply Voltage | 5V |
| Conversion Time | 9 μs |
| Power Consumption | 60 mW |
| Qualification | Bipolar Qualified, MIL-STD-883 |
Key Features
- High-resolution 12-bit analog to digital conversion
- Fast conversion time of 9 μs
- Low power consumption of 60 mW
- Operates over a wide temperature range from -55°C to 125°C
- Compliant with MIL-STD-883, ensuring high reliability and durability
- 24-CERDIP package for robust and reliable connections
Applications
The 5962-9317901MLA ADC is suitable for a variety of applications, including:
- Military and aerospace systems due to its MIL-STD-883 qualification
- Industrial control systems requiring high precision and reliability
- Medical devices where accurate signal conversion is critical
- Automotive systems that demand robust performance over a wide temperature range
Q & A
- What is the resolution of the 5962-9317901MLA ADC?
The 5962-9317901MLA has a 12-bit resolution. - What is the package type of the 5962-9317901MLA?
The package type is 24-CERDIP. - What is the operating temperature range of the 5962-9317901MLA?
The operating temperature range is from -55°C to 125°C. - What is the supply voltage for the 5962-9317901MLA?
The supply voltage is 5V. - How long does the conversion process take for the 5962-9317901MLA?
The conversion time is 9 μs. - What is the power consumption of the 5962-9317901MLA?
The power consumption is 60 mW. - Is the 5962-9317901MLA qualified for military use?
Yes, it is bipolar qualified and complies with MIL-STD-883. - What are some common applications for the 5962-9317901MLA?
Common applications include military and aerospace systems, industrial control systems, medical devices, and automotive systems. - Where can I find detailed specifications for the 5962-9317901MLA?
Detailed specifications can be found on the official Analog Devices website, as well as on distributor websites like Mouser, Digi-Key, and Microchip USA. - What is the significance of the 24-CERDIP package?
The 24-CERDIP package provides robust and reliable connections, suitable for demanding environments.
