TUSB1105RTZR
  • Share:

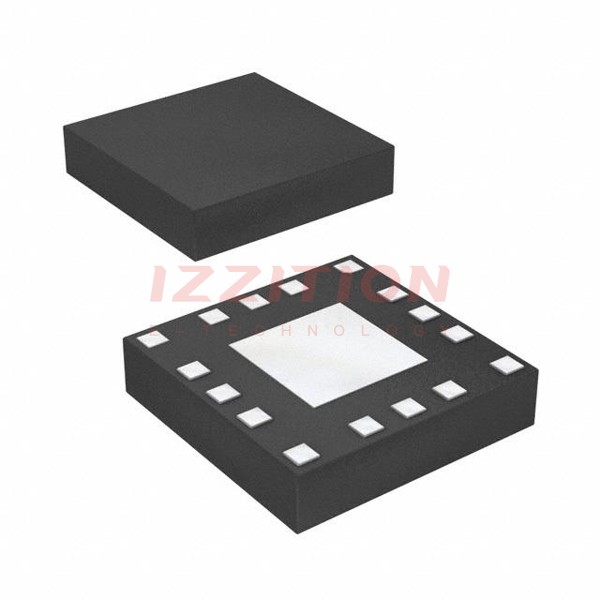

Texas Instruments TUSB1105RTZR

Manufacturer No:
TUSB1105RTZR
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
IC TRANSCEIVER HALF 1/1 16QFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The TUSB1105RTZR is a USB transceiver IC manufactured by Texas Instruments, designed for high-speed data transmission and reception in USB applications. This component is part of the USB interface IC family and is packaged in a 16-QFN-EP (2.6x1.8) form factor. It is widely used in applications requiring reliable USB communication, such as consumer electronics, industrial automation, and portable devices. The TUSB1105RTZR is compatible with USB 2.0 specifications and supports both full-speed (12Mbit/s) and low-speed (1.5Mbit/s) data rates, making it a versatile solution for USB connectivity.

Key Specifications

ParameterValueUnitNotes
Supply Voltage1.65 - 3.6V
Operating Temperature-40 - 85°C
Package16-QFN-EP2.6x1.8 mm
Data Rate1.5, 12Mbit/sLow-speed, Full-speed
ComplianceUSB 2.0
Logic IC TypeBus Transceiver
Mounting TypeSurface Mount
Output Characteristics3-STATE
Terminal FinishNi/Pd/Au
Moisture Sensitivity Level1Unlimited

Key Features

  • Compatible with USB 2.0 specifications.
  • Supports full-speed (12Mbit/s) and low-speed (1.5Mbit/s) data rates.
  • Integrated 5V to 3.3V regulator for direct power supply via USB VBUS.
  • VBUS disconnect indication through VP and VM pins.
  • Available in compact 16-QFN-EP package for space-constrained designs.

Applications

The TUSB1105RTZR is ideal for a wide range of applications, including consumer electronics such as smartphones, tablets, and digital cameras, where reliable USB connectivity is essential. It is also suitable for industrial automation systems, portable devices, and information appliances. Its ability to operate at both full-speed and low-speed data rates makes it a versatile choice for various USB communication needs.

Q & A

1. What is the operating voltage range of the TUSB1105RTZR?

The operating voltage range is 1.65V to 3.6V.

2. Does the TUSB1105RTZR support USB 2.0?

Yes, it is fully compatible with USB 2.0 specifications.

3. What are the supported data rates?

It supports both full-speed (12Mbit/s) and low-speed (1.5Mbit/s) data rates.

4. What is the package type of the TUSB1105RTZR?

It comes in a 16-QFN-EP (2.6x1.8 mm) package.

5. Can the TUSB1105RTZR be used in industrial applications?

Yes, it is suitable for industrial automation and other rugged environments.

6. Does it have an integrated voltage regulator?

Yes, it includes an integrated 5V to 3.3V regulator.

7. What is the operating temperature range?

It operates from -40°C to 85°C.

8. Is the TUSB1105RTZR RoHS compliant?

Yes, it is RoHS3 compliant.

9. What is the mounting type?

It is designed for surface mount applications.

10. Does it support VBUS disconnect indication?

Yes, it provides VBUS disconnect indication through VP and VM pins.

Product Attributes

Type:Transceiver
Protocol:USB 2.0
Number of Drivers/Receivers:1/1
Duplex:Half
Receiver Hysteresis:450 mV
Data Rate:1.5Mbps
Voltage - Supply:1.65V ~ 3.6V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:16-WFQFN Exposed Pad
Supplier Device Package:16-WQFN (3x3)
