Overview
The TSV912 from Texas Instruments is a dual-channel operational amplifier (op amp) designed for general-purpose applications. It is part of the TSV91x family, which includes single-, dual-, and quad-channel op amps. This device is notable for its rail-to-rail input and output (RRIO) swings, wide bandwidth of 8 MHz, and low offset voltage, making it suitable for a variety of applications requiring a balance between speed and power consumption.
The TSV912 is unity-gain stable and features an ultra-low input bias current, enabling its use in applications with high-source impedances, such as sensor interfaces, battery-supplied and portable applications, and active filtering. The robust design includes integrated RFI-EMI rejection filters, no phase reversal in overdrive conditions, and high electrostatic discharge (ESD) protection of ±4-kV human-body model (HBM).
Key Specifications
Parameter | Typical | Maximum | Unit |
---|---|---|---|
Operating Supply Voltage | 2.5 V to 5.5 V | 6 V | V |
High-Gain Bandwidth | 8 MHz | MHz | |
Quiescent Current per Amplifier | 550 µA | 750 µA | µA |
Input Bias Current | 1 pA | pA | |
Input Offset Voltage | 0.3 mV | 1.5 mV | mV |
Offset Voltage Drift | ±0.5 µV/°C | µV/°C | |
Noise | 18 nV/√Hz at 1 kHz | nV/√Hz | |
ESD Protection | ±4-kV HBM | V | |
Operating Temperature Range | –40°C to 125°C | °C |
Key Features
- Rail-to-rail input and output (RRIO) swings
- Unity-gain stable
- Integrated RFI-EMI rejection filter
- No phase reversal in overdrive condition
- High electrostatic discharge (ESD) protection of ±4-kV human-body model (HBM)
- Ultra-low input bias current of 1 pA (typical)
- Low offset voltage of 0.3 mV (typical) and low offset voltage drift of ±0.5 µV/°C (typical)
- Low power consumption with a quiescent current of 550 µA (typical)
- Extended temperature range of –40°C to 125°C
Applications
- Sensor interfaces
- Battery-supplied and portable applications
- Active filtering
- General-purpose amplification in various electronic circuits
- Low-side motor control
- High-side current sensing with comparators
Q & A
- What is the operating supply voltage range of the TSV912?
The operating supply voltage range of the TSV912 is from 2.5 V to 5.5 V.
- What is the high-gain bandwidth of the TSV912?
The high-gain bandwidth of the TSV912 is 8 MHz.
- What is the typical quiescent current per amplifier for the TSV912?
The typical quiescent current per amplifier for the TSV912 is 550 µA.
- What is the input bias current of the TSV912?
The input bias current of the TSV912 is typically 1 pA.
- What is the maximum input offset voltage of the TSV912?
The maximum input offset voltage of the TSV912 is 1.5 mV.
- Does the TSV912 have ESD protection?
Yes, the TSV912 has high electrostatic discharge (ESD) protection of ±4-kV human-body model (HBM).
- What is the operating temperature range of the TSV912?
The operating temperature range of the TSV912 is from –40°C to 125°C.
- Is the TSV912 unity-gain stable?
Yes, the TSV912 is unity-gain stable.
- What types of packages are available for the TSV912?

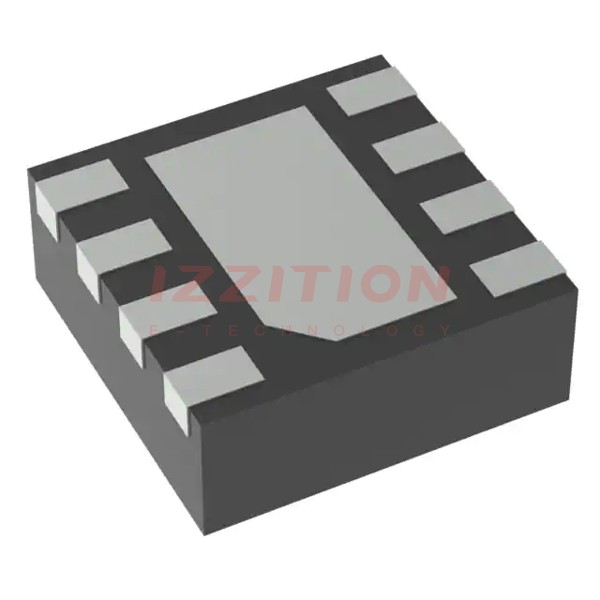

The TSV912 is available in SOIC (D), SOT-23-THN (DDF), TSSOP (PW), VSSOP (DGK), and WSON (DSG) packages.
- What are some common applications of the TSV912?
The TSV912 is commonly used in sensor interfaces, battery-supplied and portable applications, active filtering, and general-purpose amplification.
