Overview

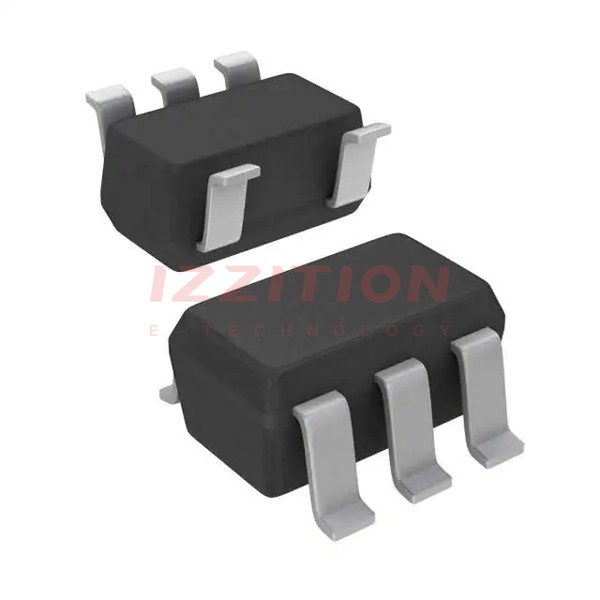

The TSV911AIDBVR is a single, general-purpose operational amplifier manufactured by Texas Instruments. It is characterized by its rail-to-rail input and output capabilities, making it versatile for a wide range of applications. This operational amplifier operates within a supply voltage range of 2.5V to 5.5V and features a gain bandwidth product of 8 MHz. The TSV911AIDBVR is packaged in a SOT-23-5 package, which is compact and suitable for space-constrained designs.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | Texas Instruments |
| Package Type | SOT-23-5 |
| Supply Voltage Range | 2.5V to 5.5V |
| Gain Bandwidth Product | 8 MHz |
| Slew Rate | 4.5 V/µs |
| -3dB Bandwidth | 80 kHz |
| Input Bias Current | 1 pA |
| Input Offset Voltage | 1.5 mV |
| Supply Current | 550 µA |
| Operating Temperature Range | -40°C to +125°C |
| Output Type | Rail-to-Rail |
| RoHS Compliance | Yes |
Key Features
- Rail-to-rail input and output capabilities
- Gain bandwidth product of 8 MHz
- Slew rate of 4.5 V/µs
- Low input bias current of 1 pA
- Low input offset voltage of 1.5 mV
- Compact SOT-23-5 package
- Operating temperature range from -40°C to +125°C
- RoHS compliant
Applications
The TSV911AIDBVR is suitable for a variety of applications due to its general-purpose nature and robust specifications. Some common applications include:
- Audio and video signal processing
- Industrial control systems
- Medical devices
- Automotive electronics
- Consumer electronics
Q & A
- What is the supply voltage range of the TSV911AIDBVR? The supply voltage range is 2.5V to 5.5V.
- What is the gain bandwidth product of the TSV911AIDBVR? The gain bandwidth product is 8 MHz.
- What is the slew rate of the TSV911AIDBVR? The slew rate is 4.5 V/µs.
- What is the input bias current of the TSV911AIDBVR? The input bias current is 1 pA.
- What is the input offset voltage of the TSV911AIDBVR? The input offset voltage is 1.5 mV.
- What is the operating temperature range of the TSV911AIDBVR? The operating temperature range is -40°C to +125°C.
- Is the TSV911AIDBVR RoHS compliant? Yes, it is RoHS compliant.
- What is the package type of the TSV911AIDBVR? The package type is SOT-23-5.
- What are some common applications of the TSV911AIDBVR? Common applications include audio and video signal processing, industrial control systems, medical devices, automotive electronics, and consumer electronics.
- Where can I find the datasheet for the TSV911AIDBVR? The datasheet can be found on the Texas Instruments website or through various electronic component databases like Alldatasheet.com.
