Overview
The TS5A3153DCUR is a single-pole double-throw (SPDT) analog switch designed by Texas Instruments. This device operates from a single supply voltage ranging from 1.65 V to 5.5 V, making it versatile for various low-voltage applications. It features a low ON-state resistance of 1 Ω and excellent ON-state resistance matching, which helps in preventing signal distortion during channel switching. The TS5A3153DCUR also boasts low total harmonic distortion (THD) and low power consumption, making it suitable for portable audio applications and other low-power systems.
Key Specifications
| Parameter | Value | Unit | Conditions |
|---|---|---|---|
| ON-state Resistance (ron) | 1.1 | Ω | V+ = 4.5 V to 5.5 V, TA = 25°C |
| ON-state Resistance Match (Δron) | 0.1 | Ω | V+ = 4.5 V to 5.5 V, TA = 25°C |
| Turn-on Time (tON) | 20 | ns | V+ = 4.5 V to 5.5 V, CL = 35 pF, RL = 50 Ω |
| Turn-off Time (tOFF) | 15 | ns | V+ = 4.5 V to 5.5 V, CL = 35 pF, RL = 50 Ω |
| Break-before-Make Time (tMBB) | 12 | ns | V+ = 4.5 V to 5.5 V, CL = 35 pF, RL = 50 Ω |
| Charge Injection (QC) | 36 | pC | V+ = 4.5 V to 5.5 V |
| Total Harmonic Distortion (THD) | 0.01% | V+ = 4.5 V to 5.5 V | |
| Operating Temperature Range | -40 to 85 | °C | |

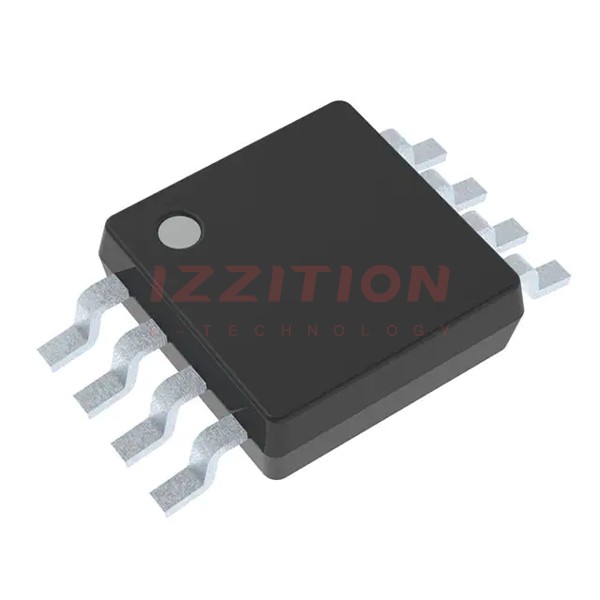

| Package Type | VSSOP-8 |
Key Features
- Low ON-state resistance of 1 Ω
- Excellent ON-state resistance matching
- Specified break-before-make switching
- Low charge injection
- Low total harmonic distortion (THD)
- 1.65-V to 5.5-V single-supply operation
- Control inputs are 5.5-V tolerant
- ESD performance tested per JESD 22 – 2000-V Human-Body Model and 1000-V Charged-Device Model
- Latch-up performance exceeds 100 mA per JESD 78, Class II
Applications
- Cell Phones
- PDAs
- Portable Instrumentation
- Audio and Video Signal Routing
- Low-Voltage Data-Acquisition Systems
- Communication Circuits
- Modems
- Hard Drives
- Computer Peripherals
- Wireless Terminals and Peripherals
Q & A
- What is the TS5A3153DCUR?
The TS5A3153DCUR is a single-pole double-throw (SPDT) analog switch designed by Texas Instruments.
- What is the operating voltage range of the TS5A3153DCUR?
The device operates from 1.65 V to 5.5 V.
- What is the ON-state resistance of the TS5A3153DCUR?
The ON-state resistance is 1.1 Ω.
- What is the break-before-make time of the TS5A3153DCUR?
The break-before-make time is 12 ns.
- What is the total harmonic distortion (THD) of the TS5A3153DCUR?
The total harmonic distortion is 0.01%.
- What are the package options for the TS5A3153DCUR?
The device is available in 8-pin VSSOP (DCU) and SSOP packages.
- What is the operating temperature range of the TS5A3153DCUR?
The operating temperature range is -40°C to 85°C.
- Is the TS5A3153DCUR ESD protected?
Yes, it has ESD performance tested per JESD 22 – 2000-V Human-Body Model and 1000-V Charged-Device Model.
- What are some common applications of the TS5A3153DCUR?
Common applications include cell phones, PDAs, portable instrumentation, audio and video signal routing, and low-voltage data-acquisition systems.
- Does the TS5A3153DCUR have latch-up protection?
Yes, the latch-up performance exceeds 100 mA per JESD 78, Class II.
