Overview
The TPS658622AZQZT is a highly integrated power management IC (PMIC) developed by Texas Instruments, designed to provide comprehensive power solutions for advanced portable and embedded systems. This model is particularly suited for applications requiring efficient power management, such as smartphones, tablets, and other portable devices. Its compact BGA-120 package and advanced features make it a competitive choice in the market, targeting engineers and designers focused on optimizing power efficiency and system performance.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|

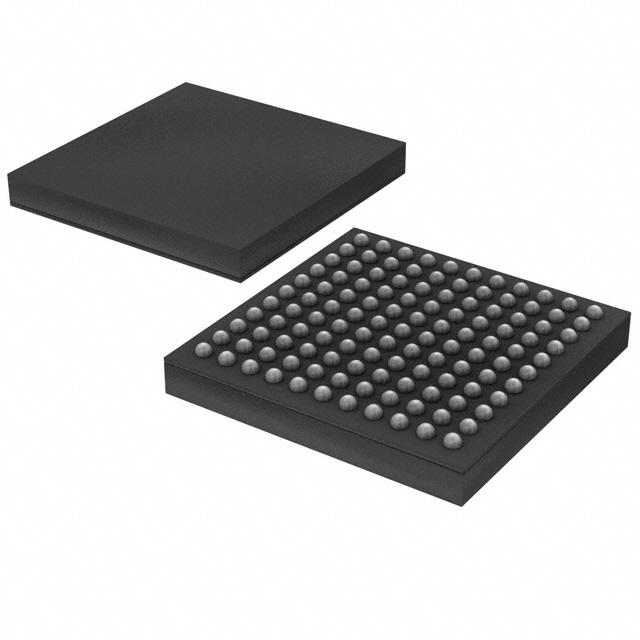

| Package | BGA-120 | - | Compact form factor |
| Input Voltage Range | 2.3 - 5.5 | V | Wide input range |
| Output Voltage Range | 0.725 - 4.55 | V | Adjustable outputs |
| Number of Regulated Outputs | 14 | - | Multiple outputs for complex systems |
| Operating Temperature | -40 to 85 | °C | Wide temperature range |
Key Features
- Highly integrated power management solution for portable devices.
- Supports multiple voltage outputs, enabling flexible system design.
- Compact BGA-120 package for space-constrained applications.
- Advanced power efficiency to extend battery life.
- Robust thermal performance for reliable operation in harsh environments.
Applications
The TPS658622AZQZT is widely used in portable electronics, such as smartphones, tablets, and handheld devices, where efficient power management is critical. It is also suitable for embedded systems in industrial and automotive applications, providing reliable power solutions in demanding environments. Its versatility and performance make it a preferred choice for designers aiming to optimize power efficiency and system reliability.
Q & A
What is the input voltage range of the TPS658622AZQZT?
The input voltage range is 2.3V to 5.5V.
How many regulated outputs does this IC support?
It supports 14 regulated outputs.
What is the operating temperature range?
The operating temperature range is -40°C to 85°C.
What package does the TPS658622AZQZT use?
It uses a BGA-120 package.
Is this IC suitable for automotive applications?
Yes, it is suitable for automotive and industrial applications.
What are the key features of this IC?
Key features include multiple voltage outputs, compact packaging, and high power efficiency.
Can this IC be used in smartphones?
Yes, it is ideal for smartphones and other portable devices.
What is the output voltage range?
The output voltage range is 0.725V to 4.55V.
Does it support thermal protection?
Yes, it includes robust thermal performance features.
What makes this IC competitive in the market?
Its high integration, compact size, and advanced power management features make it highly competitive.
